Chapter 5 Dimensions
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net Weight Gross Weight
RF117HD
441.6 x 480 x 44 mm
17.4 x 18.9 x 1.73"
590 x 708 x 140 mm
23.2 x 31.8 x 5.5"
10.8 kg
23.8 lb
15.8 kg
34.8 lb
1. The weight is only for the single console models and will vary with accessories & options
such as integrated KVM, SDI, audio input and DC power options.
2. The depth may also change when additional options are added to the unit such as
integrated KVM, SDI and audio input

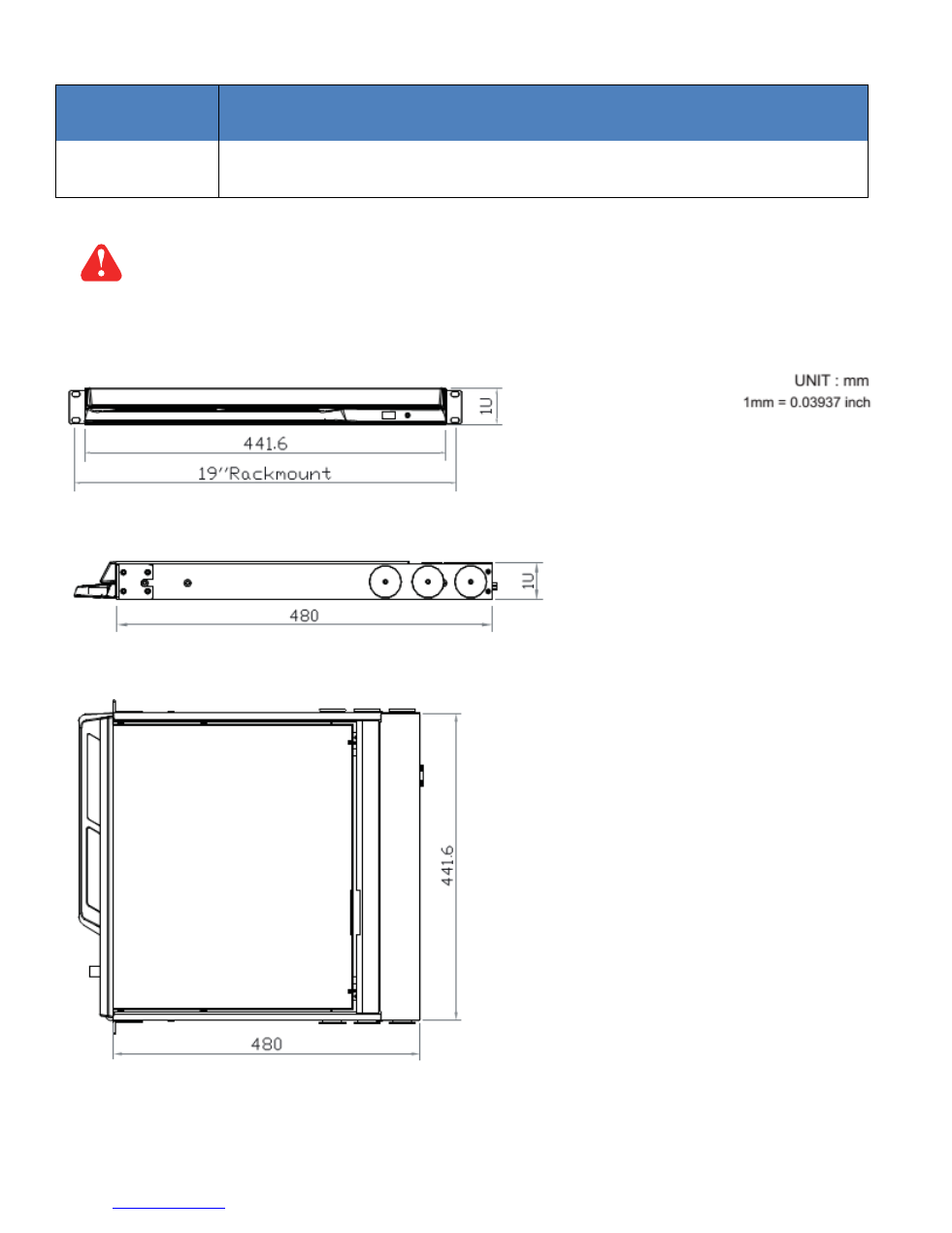

Front View:
Side View:
Top View:
