Page 5
• The lower duct fits over the extractor
hood motor assembly and over the upper
duct. Take care not to scratch or damage
the hood and upper duct surfaces.
• Loosely attach the lower duct bottom
edge to the hood by four self tapping
screws through four holes on the inside
of the extractor hood .

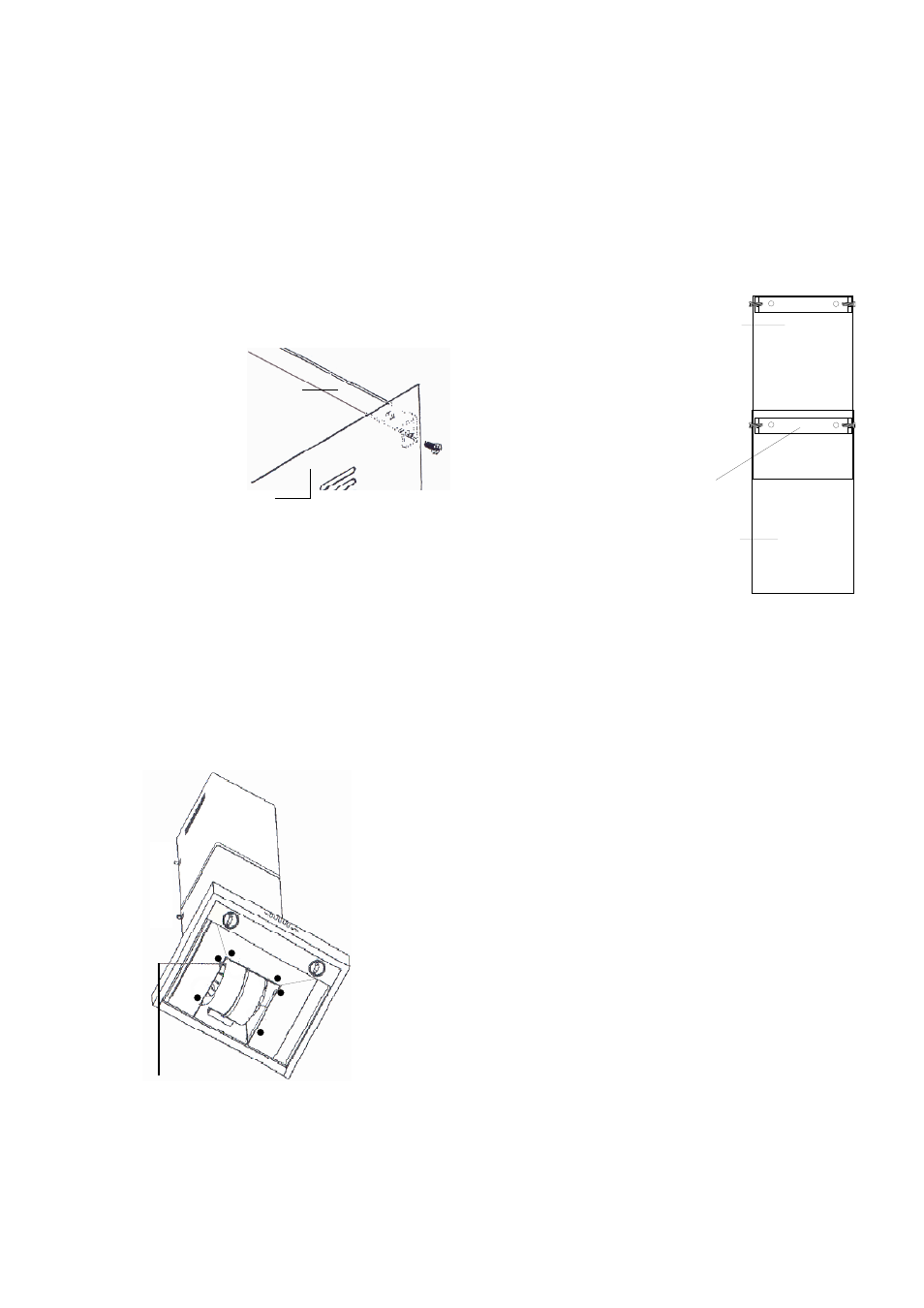

TOP CHIMNEY DUCT
CEILING MOUNTING BRACKET
Before fitting the chimneys, connect up
the outlet ducting (if required) and insert
the fitted plug into the wall socket.
• Remove the protective film from the
chimney ducting taking care not to dam-
age the polished stainless steel surface.
• Fit the upper chimney duct section (the
one with louvre outlets) to the ceiling
mounting bracket using the screws sup-
plied.
INSERT 6 SELF TAPPING SCREWS
•
Fit the lower chimney duct to the lower
wall mounting bracketand tighten the six
screws on the inside of the extractor hood
•
Drill 3.5mm Dia. holes through the top
holes in the bottom chimney and through
the lower end of the top chimney duct.
•
Fasten the two chimneys to the centre
chimney bracket.
Top chimney duct
Drill two 3.5mm Diameter
holes and secure two chimney
ducts to mounting bracket.
Bottom chimney duct
Mounting bracket
