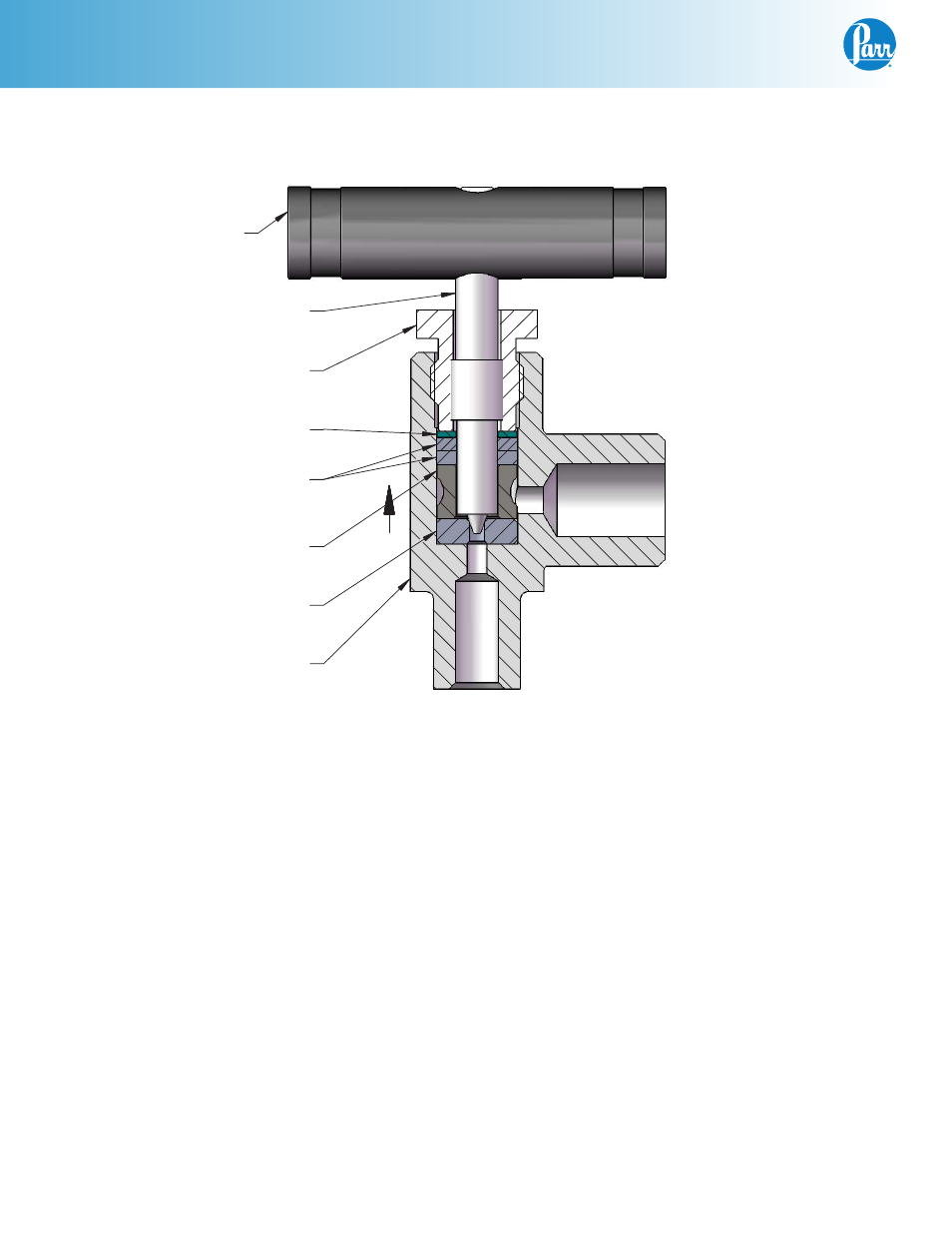

A238VB Valve
VALVE NEEDLE
234VB2*
LANTERN RING
21VB*
WASHER, MONEL
7VBCM
237VB*
VALVE BODY
20VBHB
VALVE SEAT
BAR HANDLE
233VB
SEE NOTE 2
PTFE PACKING
2X 4VB3
235VB
PACKING NUT
1/8NPTM X 1/8NPTF
P
arr
I
nstrument
C
ompany
211 53rd Street • Moline, Illinois 61265 USA 1-309-762-7716 • 1-800-872-7720 • Fax: 1-309-762-9453
E-mail: [email protected] • http://www.parrinst.com
Revision 07/11/13
A238VB Valve
Notes:
1.
* Indicates parts required in special material
2.
Substitute (1) 4VB4KL grafoil packing for high-temp
3.
Optional fittings for outlet 280VB* nipple 1/8NPTM × 1/8NPTM
or A92HW* male connector 1/8NPTM × 1/4TUBE
