ParkZone PKZ8050 - Manual (Page 6)

EN
B
A
C

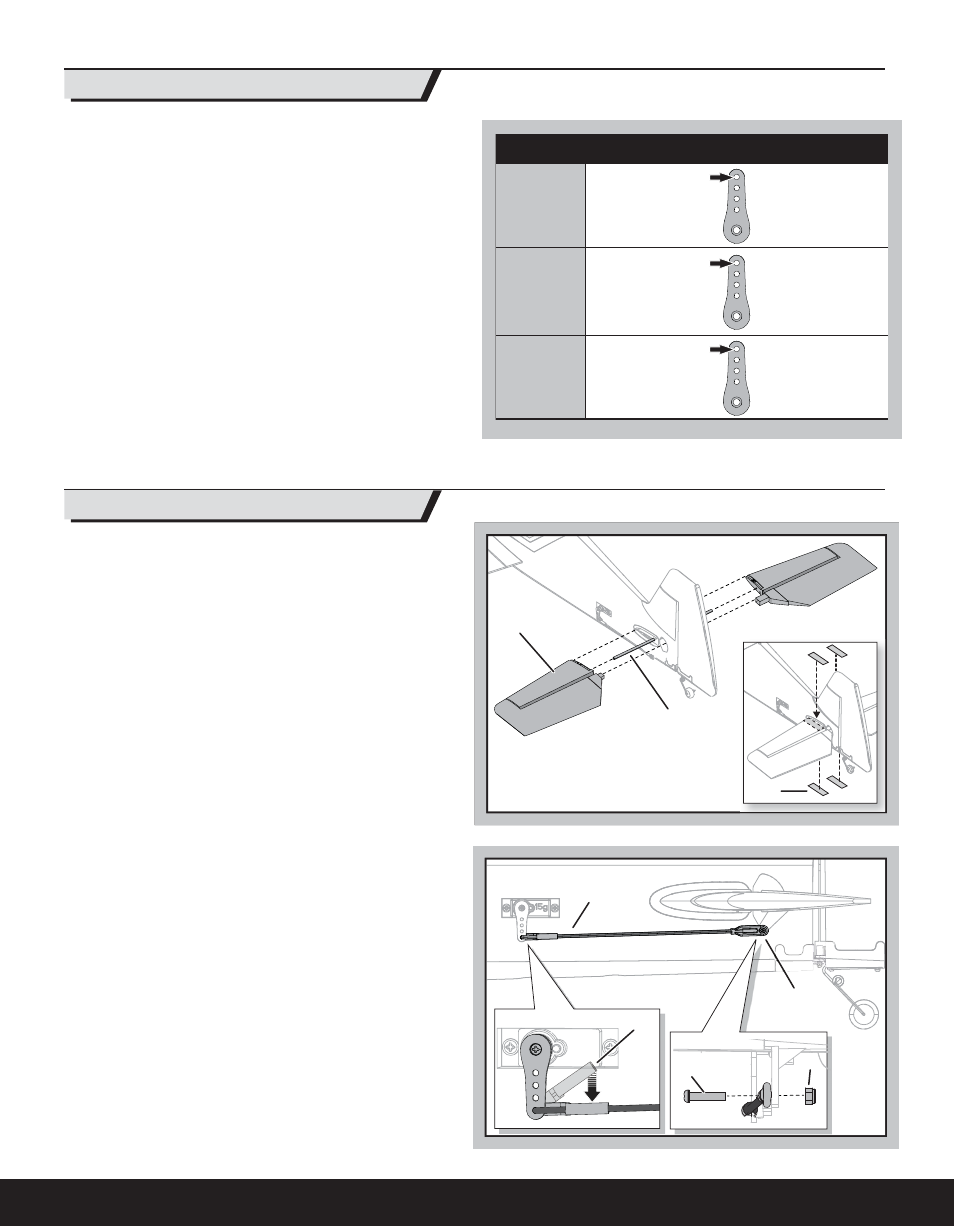

1. Slide the horizontal tail tube (A) into the hole in the rear of the fuselage.
2. Install the left and right horizontal tails (B) onto the fuselage as shown.
Ensure the control horn faces down.
3. Apply 4 pieces of tape (C) to the fuselage mounts (one on the top and
bottom of each half of the horizontal tail).
4. Attach the linkage (D) to the outermost hole in the elevator servo arm using
the link keeper (E).
5. Attach the ball link (F) to the elevator control horn using the included
nut (G) and screw (H).
6. Ensure the elevator servo arm is in the correct position, then adjust the
linkage to center the elevator.
When needed, disassemble in reverse order.
Horizontal Tail Installation
Factory Settings
Elevator
Rudder
Ailerons
Control Horn and Servo Arm Settings
Fly the aircraft at these factory settings. After your fi rst fl ights, if you desire a
less responsive feel, only adjust the rates for aileron, elevator and rudder using
the dual rate function of your computerized transmitter.
D
E
F
H
G
