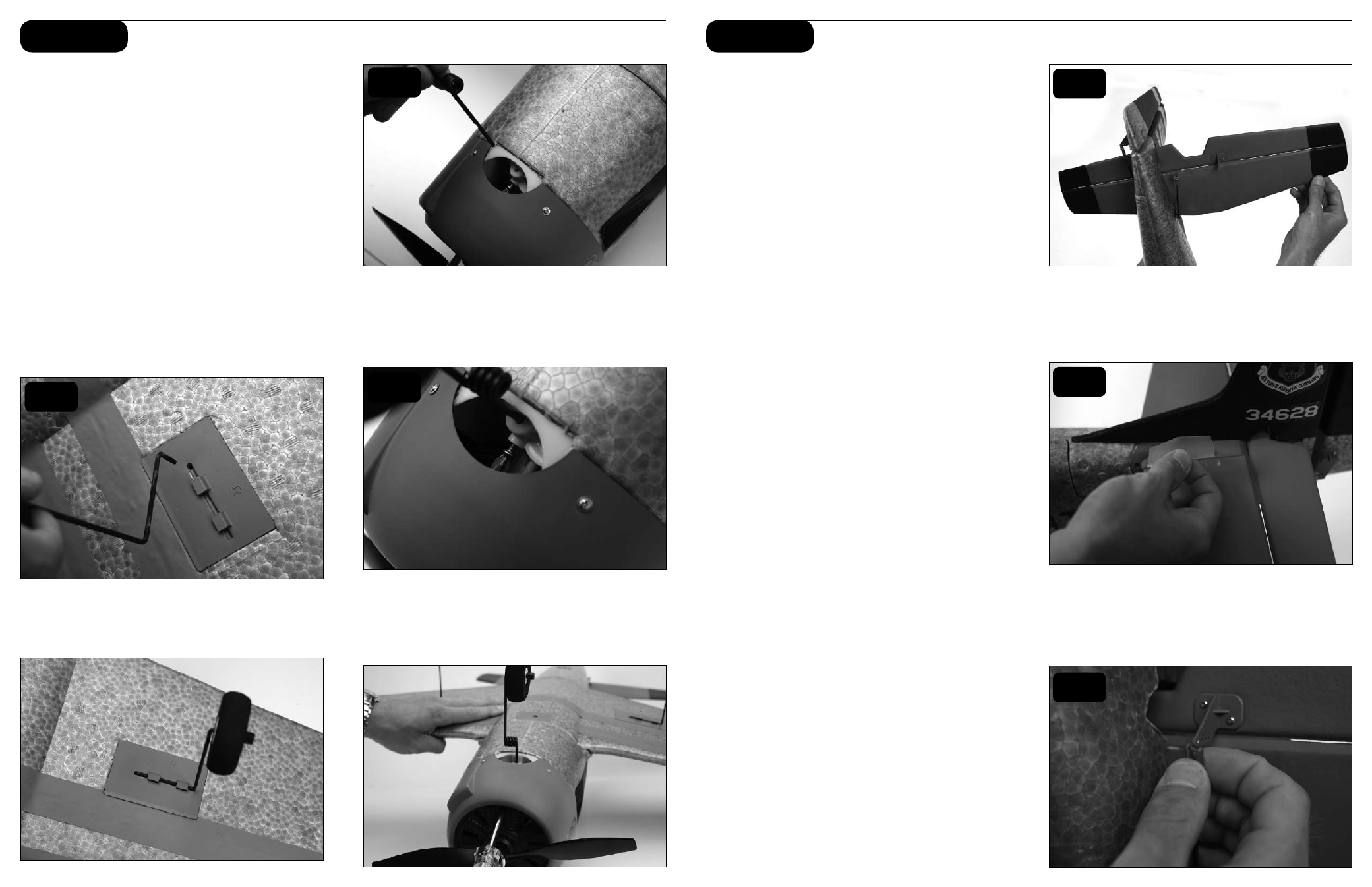

Installing the Landing Gear

1. Install the main landing gear by inserting it into the

locator hole in the wing. Swivel the landing gear

toward the retaining clips and gently snap into place.

2. Insert the nose gear into the steering assembly on

the underside of the cowl with the flat spot facing

forward.

3. Align the retaining screw with the flat spot on the

cowl. The retaining screw should be visible through

the front of the cowl.

4. Using a Phillips screwdriver, tighten the retaining

screw. The retaining screw should be accessible

through the front of the cowl, however, you may

choose to remove the cowl for easier access.

5. Reposition the T-28D so that it is resting on the

landing gear.

Step 3

Step 4

Attaching the Horizontal Stabilizer

1. Locate the horizontal stab of the tail.

2. Slide tail in allotted space of fuse, making sure

the control horn installed into the horizontal tail will

properly align with pushrod and clevis exiting the

back of the fuse.

3. When you are certain the tail is centered correctly

and in the right place, use the tape provided to

properly secure the tail to the fuselage as shown.

Use the tape on the top and bottom of each side of

the tail (total of 4 applications).

4. Turn on the transmitter and plug in the flight battery.

Make sure the trim levers are centered and the left

stick is in the full down position.

5. Locate the clevis and rod exiting the right side of the

fuselage, and attach the clevis to the control surface

as shown.

6. Make any trim adjustments as necessary prior to

flight (see Step 10).

Note: To make trim adjustments to the horizontal

stabilizer:

a. Turn on radio transmitter.

b. Plug in fully charged battery into fuse.

c. Use the elevator trim of the radio by moving up or

down to center the tail at neutral when the gimbal is

also at neutral. If these changes are not sufficient,

center the transmitter elevator trim lever, then

remove the clevis from the control surface and

turn clevis in or out as needed to move the control

surface back to neutral.

Warning: Always keep hands and all objects away from

the propeller in case the motor is engaged. A moving

propeller can cause severe injury and/or damage.
