Di 5.5BPS

OWNER’S MANUAL

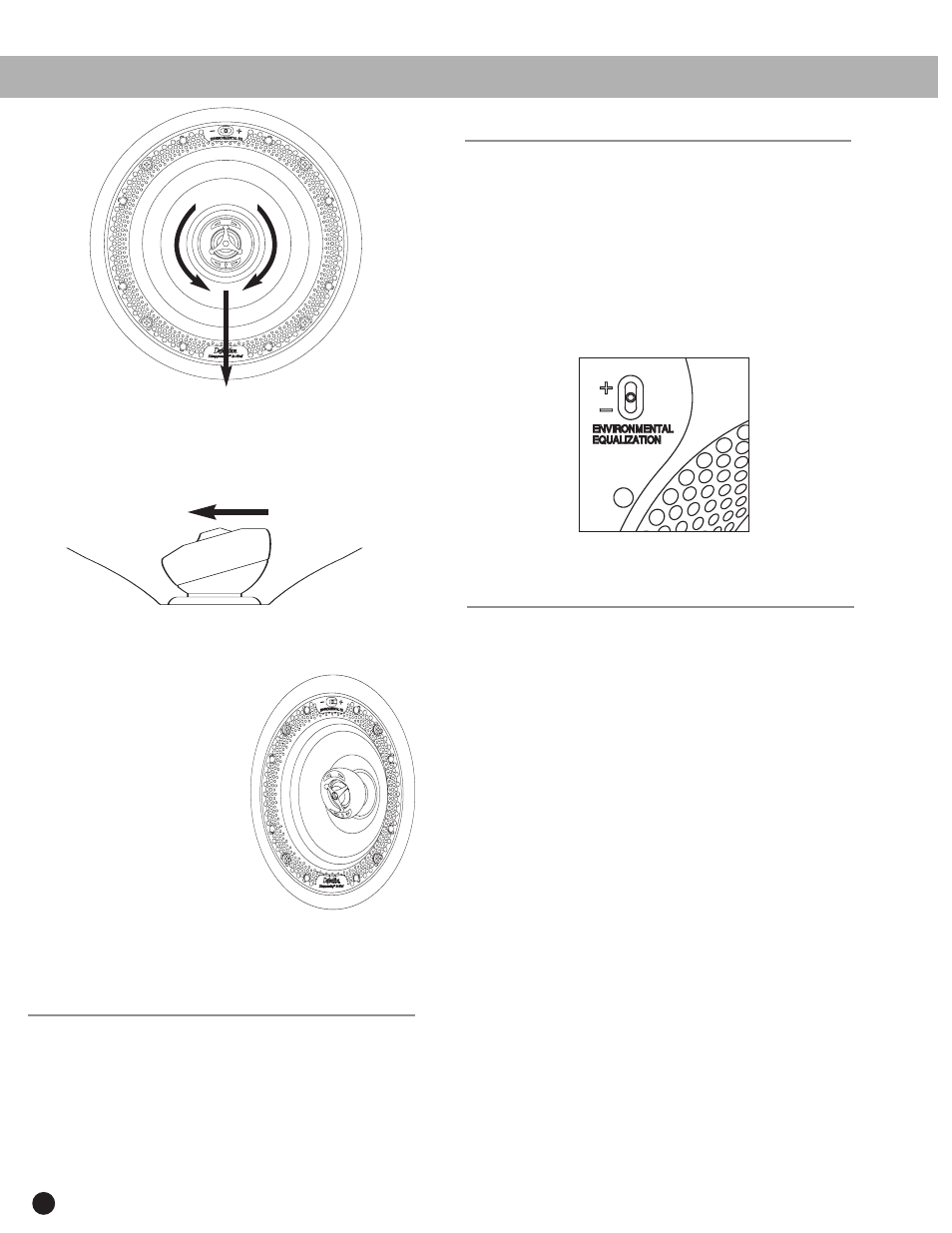

Aiming the Tweeter

To aim the tweeter, first install the speaker in the desired location. Rotate

the tweeter so that the arrow on the tweeter faceplate is pointing in the

direction you wish to aim the tweeter [figure 5] then gently push the

tweeter in that direction [figure 6a & 6b]. For rear/surround speakers aim

the tweeter toward the nearest reflecting surface (an adjacent wall or

ceiling) for a more diffuse sound field (if you so desire; for more direct

sound, aim the tweeters at your listening position).

Environmental EQ

If your listening room is very reflective, with smooth sheetrock walls,

hardwood floors, and non-cushioned furniture, the sound will be overly

“bright” and unnatural. Engaging the Environmental EQ feature

[figure 7] (by selecting the “–” setting) compensates for the effect of

overly loud treble. If your room is has a lot of absorbing surfaces such as

over-stuffed furniture, heavy drapes and rugs such that the speakers

sound “dull,” engage the “+” setting to boost treble response. Leave the

switch in the center position in rooms with a balance of reflecting and

absorbing surfaces (most rooms fall into this category).

Installation

Installation Cautions

Installation of Disappearing 5.5BPS Loudspeakers requires skills in using

tools such as a drill, screwdriver, saws and power tools. Installation also

entails running wires through walls. You should have a thorough under

standing of local building and fire codes and a familiarity with the area

behind the wall or ceiling into which you plan to install your speakers.

When cutting holes in and running wires through walls/ceilings you run

the risk of cutting electrical wires or water pipes thereby causing safety

hazards and property damage. If you are in any doubt that you possess

the necessary skills or tools, contact your Definitive Technology dealer,

general contractor or a professional installer.

Required Tools

• Pencil for marking the location of installation.

• Bubble level

• Keyhole saw, utility knife or material- appropriate incising implement

for cutting drywall or other wall material.

• Phillips head screwdriver.

• Power drill with appropriate bit (optional, for starting wall cut).

Installation Procedure

• You must first install speaker wires that meet appropriate building and

fire codes before installing the speakers. Use at least 18 gauge wire or

heavier to ensure optimum sound quality.

4

Figure 7

Figure 5

Point tweeter in desired

direction by turning the

tweeter assembly.

Figure 6a

Push gently in

direction of arrow

to set angle.

Figure 6b
