PS1000B/ PS1500B/ PS2200B/ PS3000

7

2.4 Select Button


The relevant value appears on the upper screen. There are several parameters
can be selected

Output voltage display
Input voltage display
Input frequency
Temperature inside the UPS
Output frequency
Load level percentage

2.5 Load Percentage Bar Graph

The LCD display on the front panel shows the current load percentage. From 0
to 100 percent, the percentage of the UPS’s maximum power capacity being
drawn by your connected equipment is shown.

2.6 Battery Capacity bar graph

The LCD display on the front panel shows the percentage of the battery
capacity. From zero to 100%, the present charge of the UPS’s batteries is
shown.


2.7 Fault

code

The relevant value appears at the upper screen. There are two kinds of fault
modes can be displayed.

Err0: UPS Fault
Err1: Warning of overload (exceeding 120%)


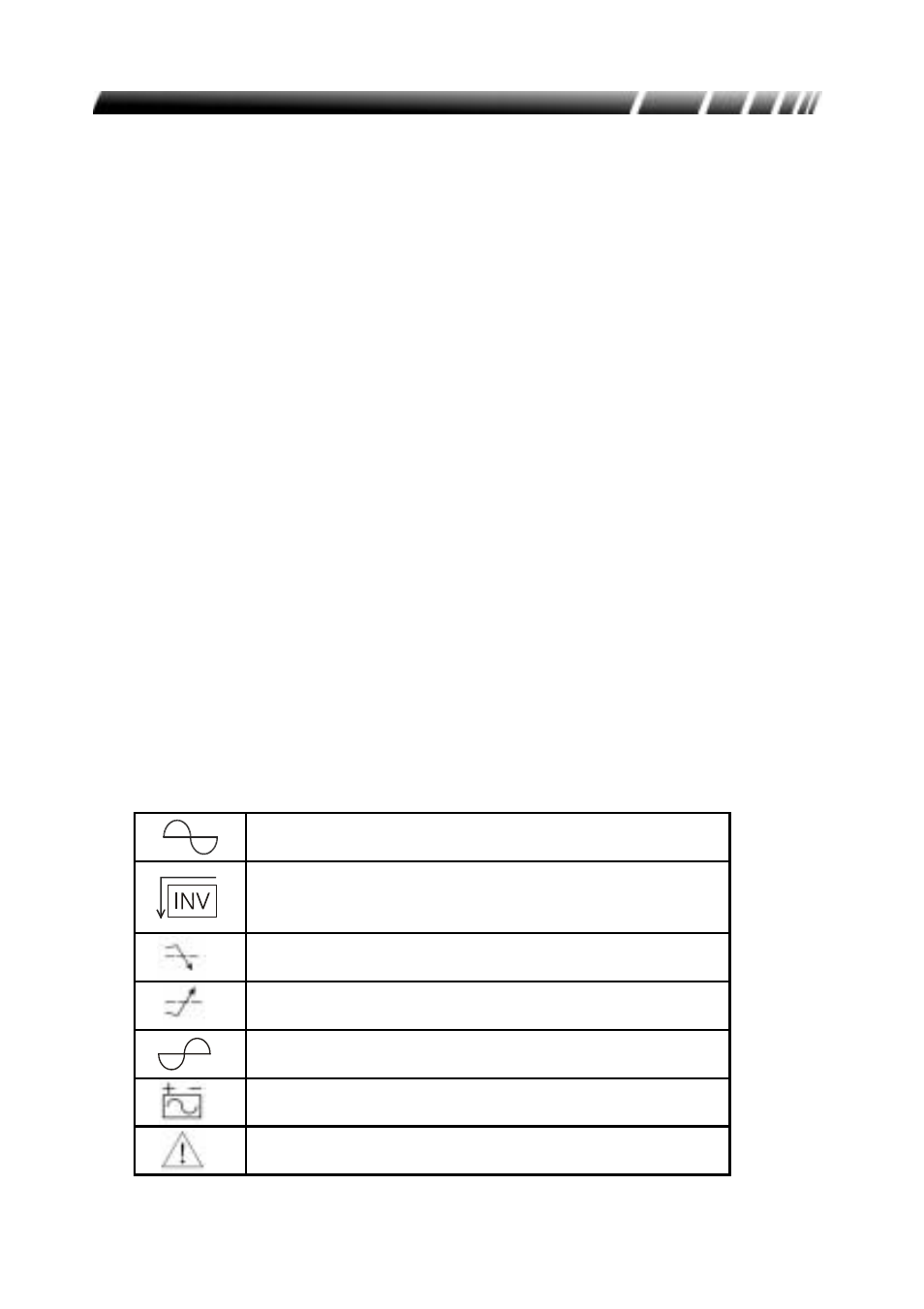

2.8 Status Indication

UPS Status Indication

“LINE” indicator: The indicator illuminates when the line input
voltage is normal.

"BY PASS" indicator: The indicator illuminates when the
loads are supplied from the utility power, through the by-pass
direction.

are supplied from the utility power, through the buck
direction.

are supplied from the utility power, through the boost
direction.

"INV": The indicator illuminates when the power is supplied
from the inverter circuit.

“BACKUP” indicator : The indicator illuminates when the
power is supplied from the batteries.

“FAULT” indicator: It shows something wrong concerning
about the UPS.
