MK Plastics AXTC Centrifugal Inline Fan IO&M - Manual (Page 8)

M.K. Plastics Corp. Montréal, Québec www.mkplastics.com Page. 8

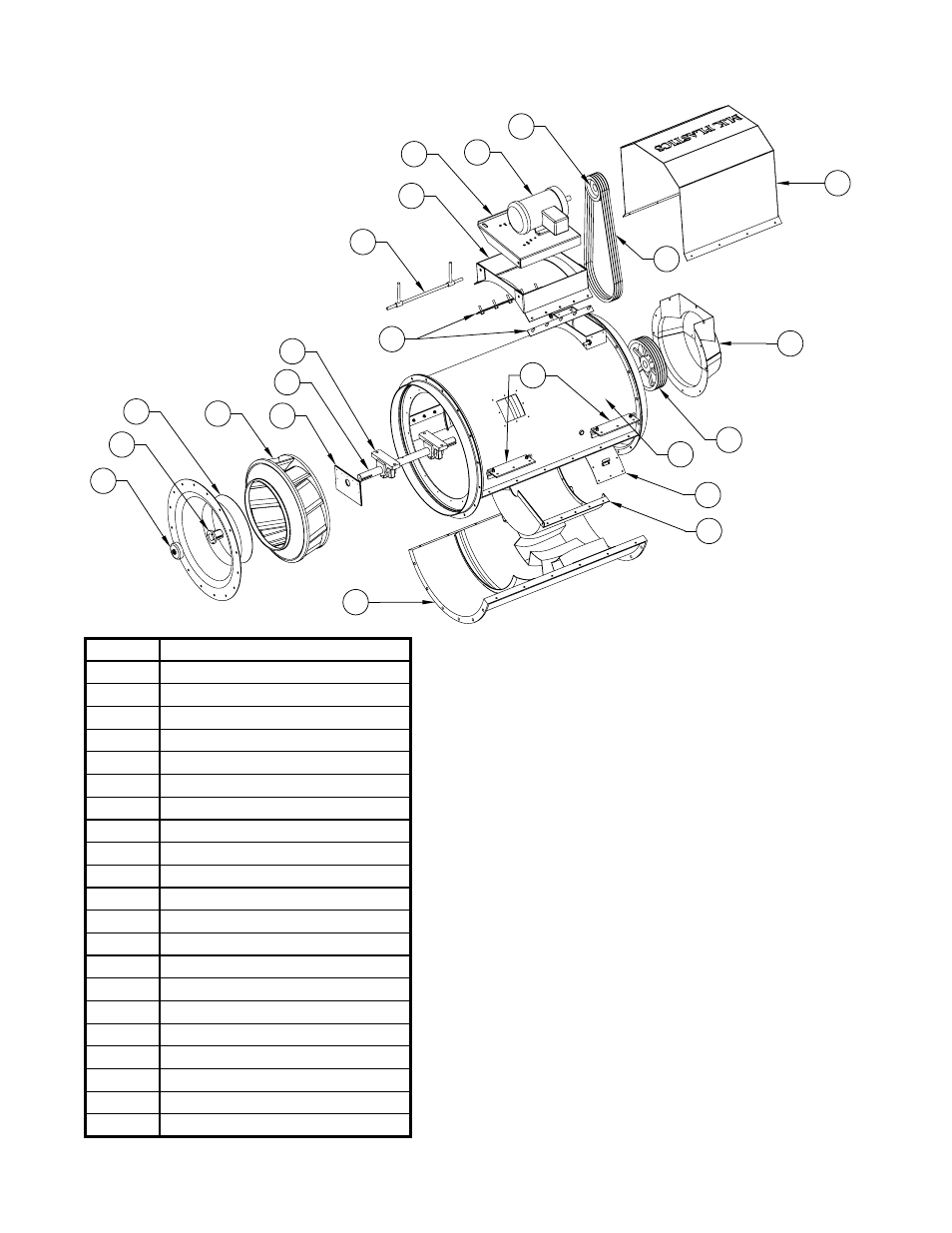

AXTC - Parts List (Horizontal)
1
2
3 4 5
6
7
8
9
10
11 12
13
14
15
16
13
17
18
19
20
21
Item No. Item Description
1 Hub Cover
2 Bushing
3 Inlet Cone
4 Impeller
5 Hub Seal
6 Shaft
7 Pillow-Block Bearing
8 Adjusting Rod
9 Motor Support Bracket
10 Motor Support
11 Motor Base
12 Motor
13 Drive Pulley
14 Drive Belts
15 Motor Cover
16 Belt Guard
17 Fan Casing (Top)
18 Access Door
19 Shaft Guard
20 Fan Casing (Bottom)
21 Mounting Brackets
