Martin Archery Bow - Manual (Page 11)

X-Module
Module
Module
Screws
Speed
Bearing
Base
Cam

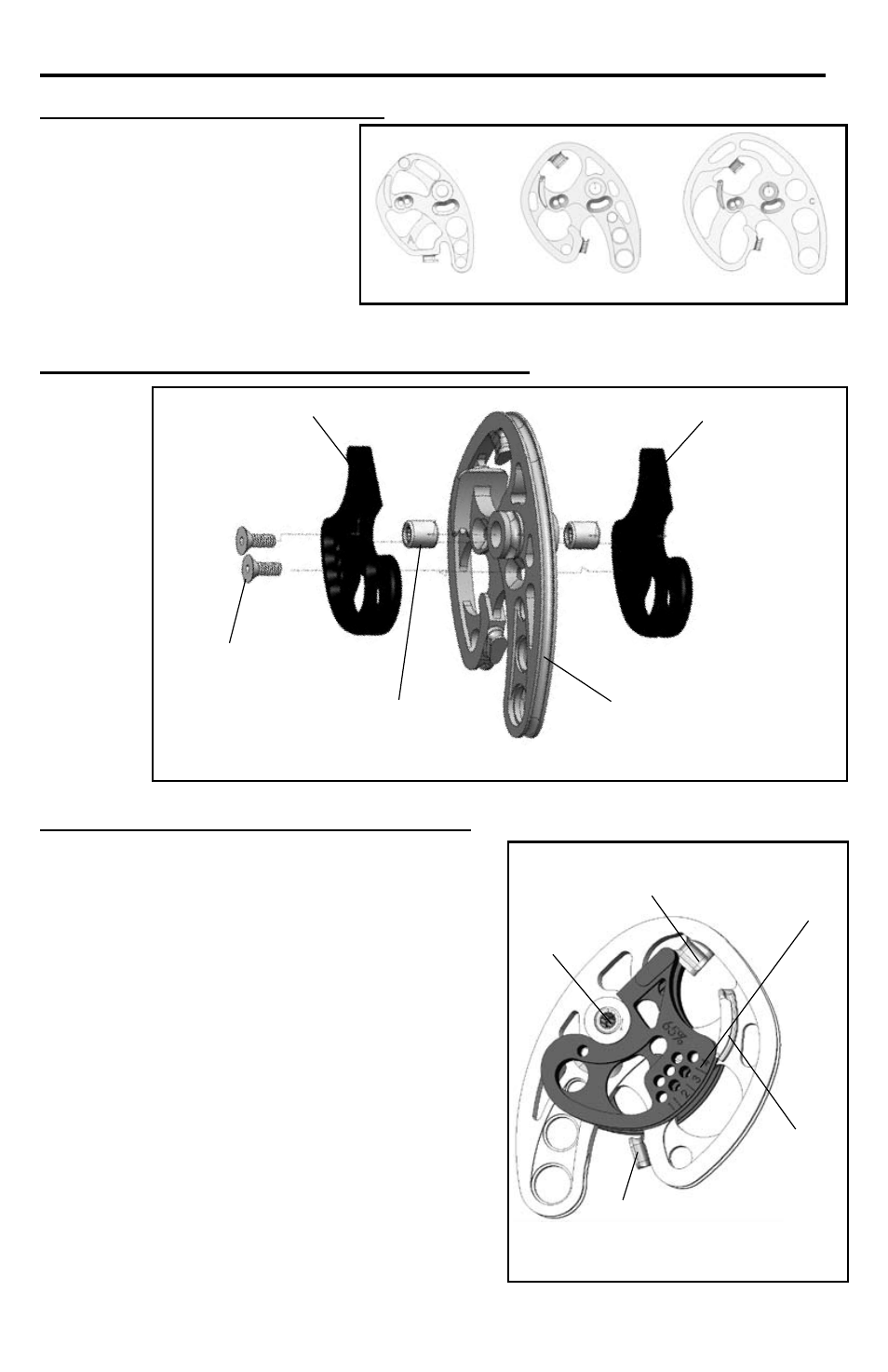

Cam Systems - Nitrous & Nitrous-X Cam
•Nitrous and Nitrous-X Cams
Your Nitrous and Nitrous-X Cam
System uses one rotating module
and one of 3 base cam sizes.
Refer to the spec charts at your
dealer or www.martinarchery.com
to see what base you need for your
draw.
•Parts of the Nitrous and Nitrous-X Cams
•Changing The Nitrous Draw Length
Your Nitrous Cam may be an X Shoot-Through
system or a standard system, but the draw is
adjusted basically the same. The threaded module
has numbers and dashes on it that indicate what
setting you are on while you are adjusting it. The
dashes signal 1/2" draw increments. When you are
adjusting the draw, make sure that both modules
are in the same setting. To rotate the modules, you
will need to remove the mod screw closest to the
Cable Boss and loosen the module screw that is
closest to the Bearing Boss. If you are using a Mini
Module for short draws, there is only one screw.
Slide the module to the desired position and replace
and tighten the screws in the appropriate positions.
The modules provide a longer draw as the module
number gets higher.
Note: For more options in draw length
adjustment see the section called Using
Nitrous Mini Modules on the next page.
B Cam C Cam
Mod
Settings
Bearing
Boss
Cable
Anchor
Cable
Boss
Shooting
String
Anchor
A Cam
