Marsh 11
REC
TAPE LINE VIDEO DVD TUNER CD
RIGHT
LEFT
INPUTS
2 1
OUTPUTS
Marsh
MODEL : MSD- 2000 P T
TUBE PREAMPLIFIER
SERIAL NUMBER
POWER CONSUMPTION : 50 W MAX
60 Hz AC 120 Volts
TO PREVENT FIRE AND SHOCK HAZARD, DO NOT EXPOSE THIS DEVICE TO RAIN OR MOISTURE. - DO NOT OPERATE WITH COVERS REMOVED -
CAUTION FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH SAME TYPE AND RATING FUSE.
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION
AVIS : RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
WARNING INVERTED POLARITY
0.6A SLO-BLO

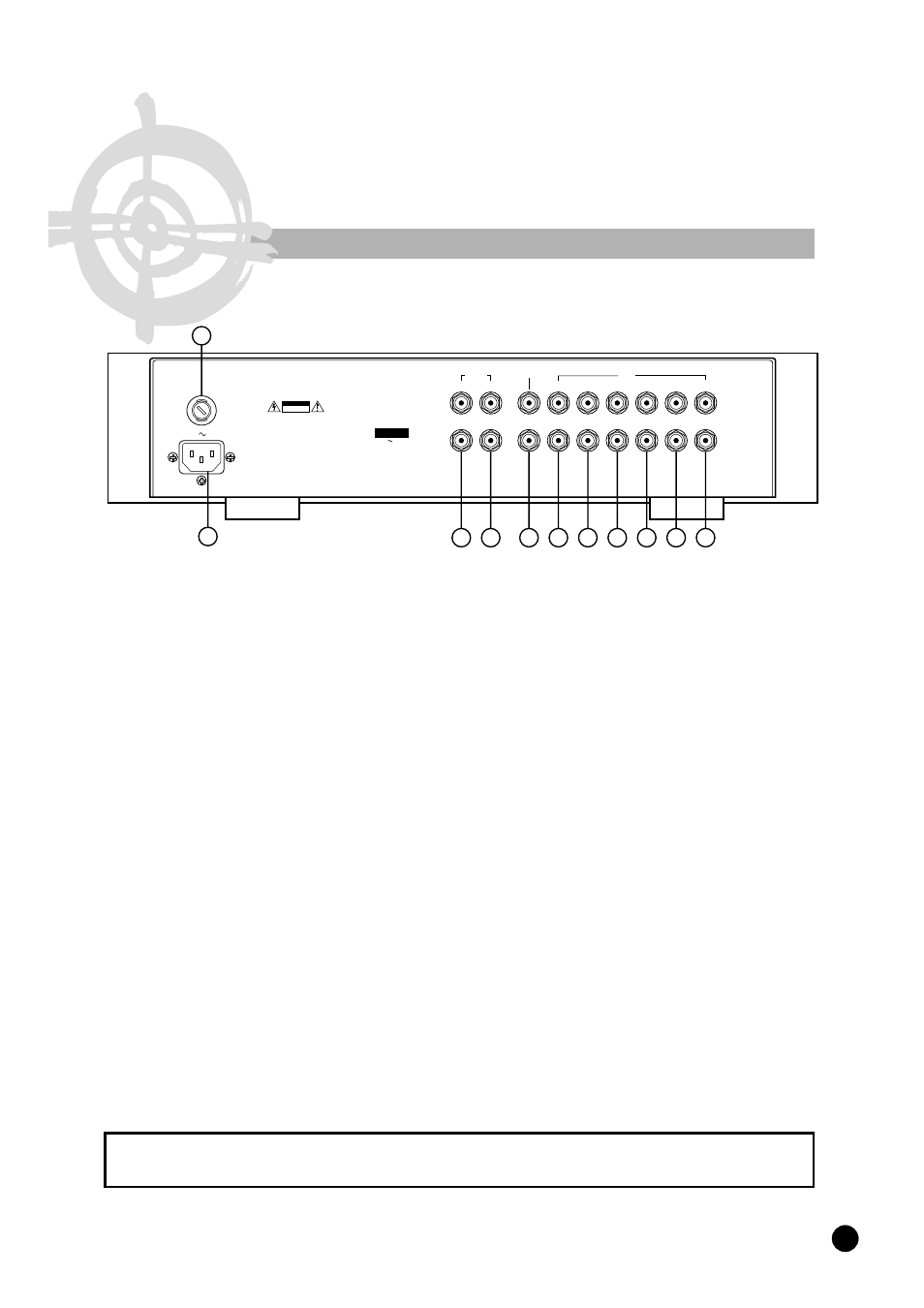

INPUTS The MSD-P2000T have a total of 6 line level inputs
REC (Recording output monitor) The MSD-P2000T has a recording monitor output for duplication.
.
1. CD Receives signals from a Compact Disc player.
2. TUNER Receives signals from a Tuner.
3. DVD Receives signals from a Digital Versatile Disc player.
4. VIDEO Receives signals from a VCR audio outputs.
5. LINE Receives signals from a line level source.
6. TAPE Receives signals from a cassette tape player.
7. TAPE (REC) Sends output signals from a selected source to cassette tape input. To record from the
program source onto cassette tape, turn the selector knob to the source program you
wish to record and press record on cassette tape player.
OUTPUTS The MSD-P2000T has 2 outputs for connections to power amplifier.
8. OUTPUT 2 Sends signals to a power amplifier (use in bi-amplifier application).
9. OUTPUT1 Sends signals to a power amplifier.
10. MAIN FUSE If there is a problem with the original fuse, replace with a fuse of the same type and rating.
11. POWER Connect the MSD-P2000T to the outlet with the enclosed power cord.
NOTE The output signal is inverted polarity to the source signal, you may need to change the polarity of both
left and right speakers cables to get the correct program polarity.
IMPORTANT: Operate the unit only from the power source of the appropriate voltage indicated on rear
panel.
4 5 6 7 8 9 11
10
3 2 1
Connections
