REMARK: Factory default settings are marked in bold with underline
-7-

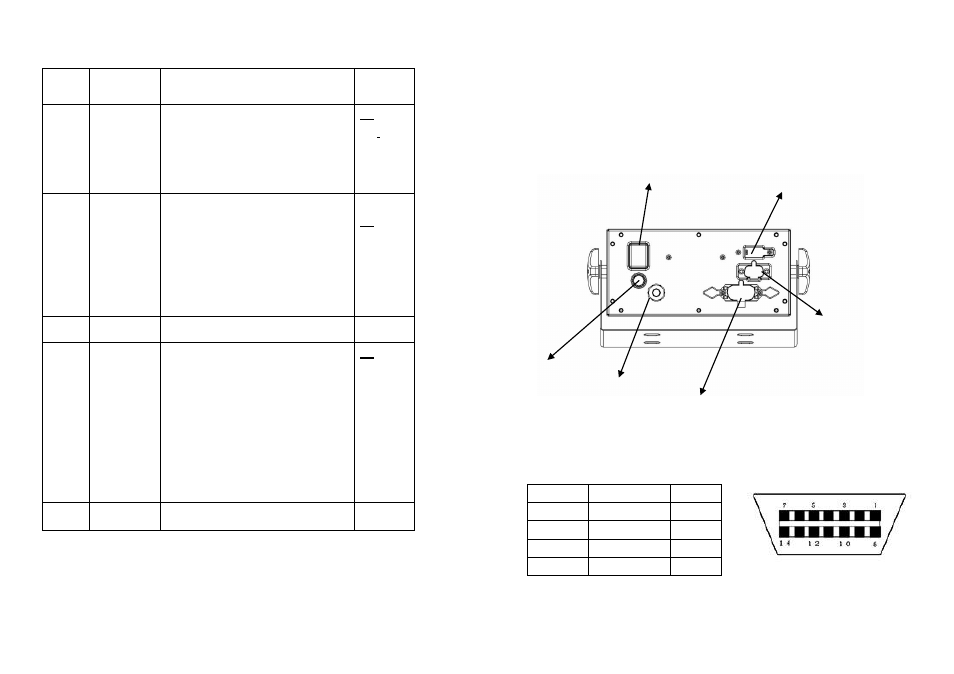

Back panel diagram for TR-1-NK
Switch power USB socket
RS232
FUSE socket
Input Power AC
LOADCELL socket
LOADCELL Socket ：DB14
+
PIN NO WIRE NAME Color
1, 8 +Excitation RED
3, 10 - Excitation BLACK
5, 12 +Signal GREEN
7, 14 - Signal WHITE
-8-
CODE NAME DESCRIPTION CODE/
VALUE
5 zero
tracking
range (a
“d” as a
unit）
Display maintain zero while the
reading is less than this selection
and stable
01,02,03
,04,05 …
.
nn
6 LB number
of decimal
point
nn=00：no decimal place
nn=01：one decimal places
nn=02：two decimal places
nn=03: three decimal places
nn=04：four decimal places
nn=others ,same to nn=00
00,
01,
02,
03,
04,
nn
7 undefined
8 RS232 Output option for serial
communication port（9600,N,8,1）
with straight-through cable
nn=00：key output
nn=01：continuous output
nn=others ,same to nn=00
date format: STX，' '/'-'，7Bit
Data，'lb'/kg'，' ' ，'G'/'N'，'M'/' '。
CR,LF
00,
01,
nn
