Parameter setting:
Open the lower cover ,then press key on the main board and it will
show “------”, press < Gross/Net > to enter menu.
Format of parameter: - x - - n n ("x" means the order of parameter; "n n"
means specific parameter.
Operation: : change X in circle
:Displayed value increase 1 by pressing the key every time .
: Displayed value minus 1 by pressing the key every time.

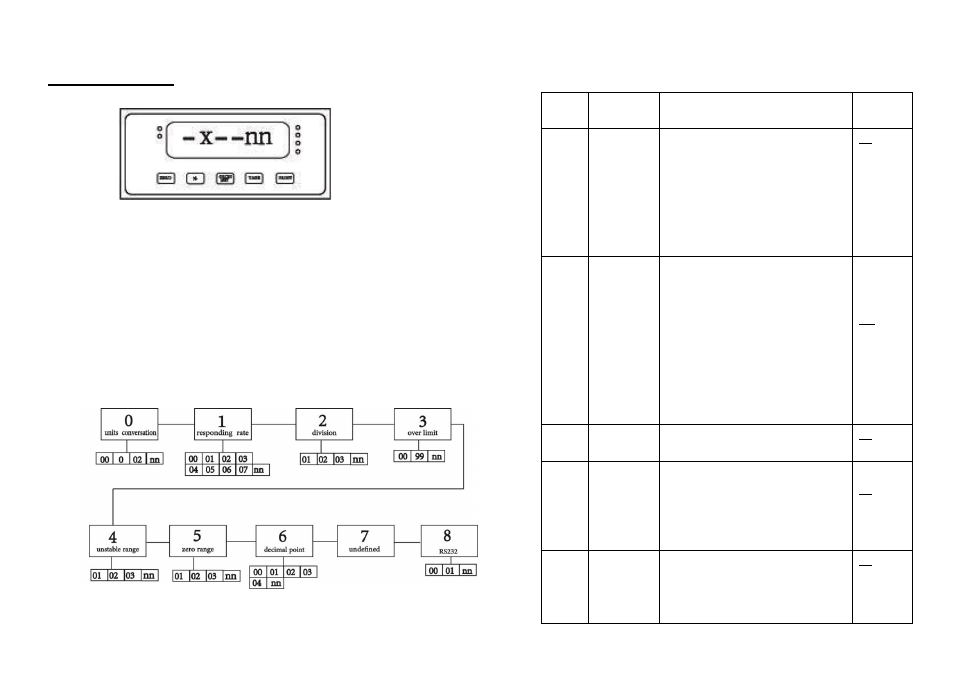

Setup Menu Chart:
-5-
Setup Menu Description:
6
6
CODE NAME DESCRIPTION CODE/
VALUE
0 LB/KG
units
conversati
on setting
nn=00: Power-on unit is lb and
units conversation is not available.
nn=0: Power-on unit is lb and units
conversation is available.
nn=02: Power-on unit is kg and
units conversation is available.
nn= other value, same to nn=02.
00,
0,
02,
nn
1 responding
rate for
sampling
nn=00：rate=6.25Hz ( the slowest)
nn=01：rate=7.5Hz
nn=02：rate=12.5Hz
nn=03：rate=15Hz
nn=04：rate=25Hz
nn=05：rate=30Hz
nn=06：rate=50Hz
nn=07：rate=60Hz (the fastest)
nn= other value ,same to nn=00.
00,
01,
02,
03,
04,
05,
06,
07,
nn
2 LB division
displayed
Minimum difference between two
weighing readings.
01 ,02…
nn
3 Overload
limit
nn=00：fixed 10000 point
nn=99：No overweight
nn=others:overweight
range=101*nn
00,
30
99.
nn
4 unstable
range (a
“d” as a
unit）
The OMT LED light out and the
weighing operation is enable while
motive reading is not exceeded
the limit of this selection.
01 ,02…
nn
