Billet Trim Tab Installation
10 of 11
715 Center Street Grayslake IL 60030 P: 847.752.2700 E: [email protected] www.livorsi.com
REV B MAY 2015
TTK EL Models
Testing:
The hydraulic system will be full of air, the system is designed to self purge this air when the tabs
are raised and lowered.
Purging Air
Before testing the system ensure the pump is filled with oil to the MAX level line.
To purge, fully raise and fully lower the tabs 3X times.
Check the oil level and inspect all hydraulic components for leaks.
Repeat fully raising and fully lowering of the tabs until operation is smooth.
NOTE: While purging the oil will foam (inducing air), allow to sit for 24 hours, fill as needed.
Fill the pump with oil:

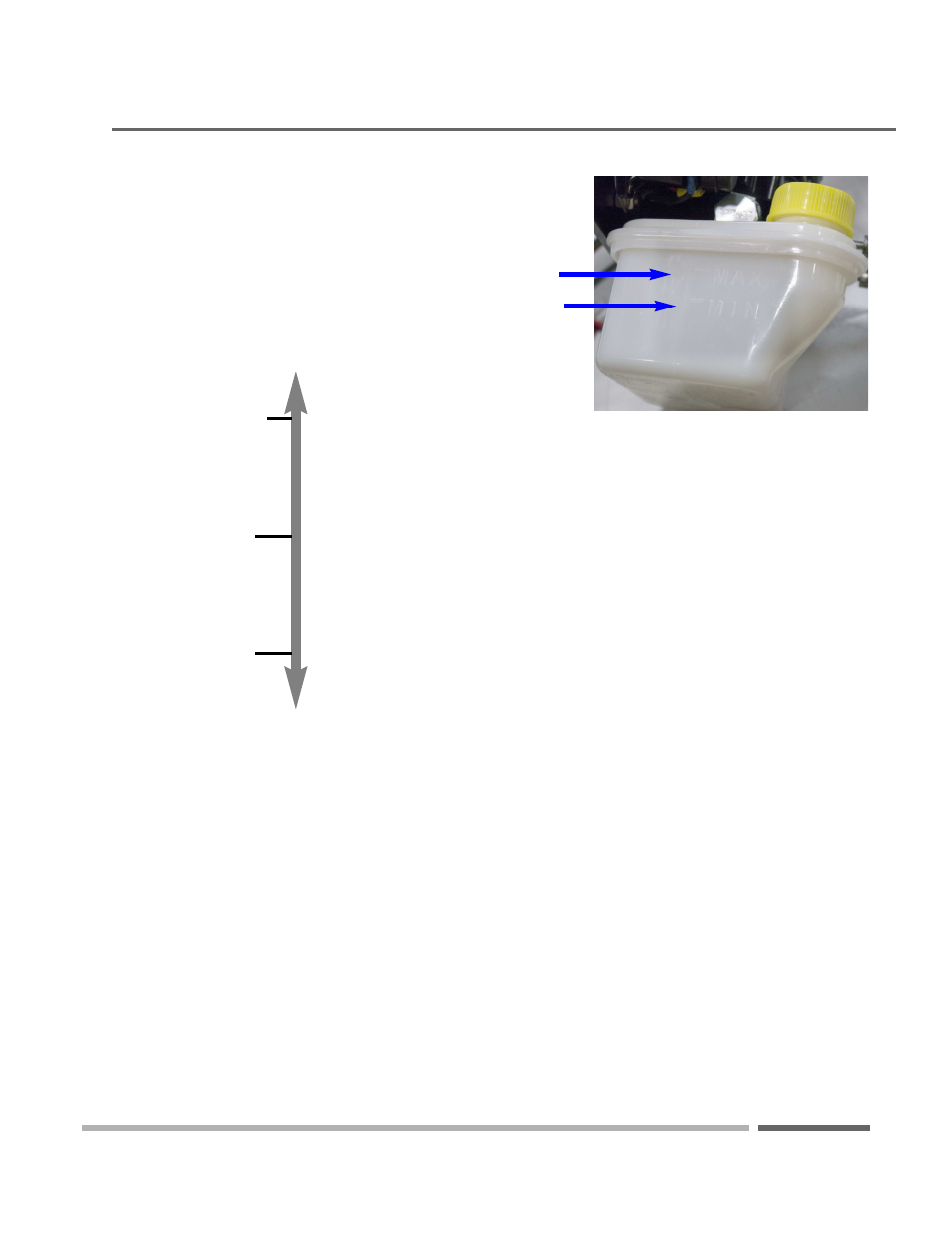

The pump reservoir has markers indicating the
maximum and minimum oil levels.
The operating temperature and the oil used will
determine the reaction speed of the tabs.
FASTER
SLOWER
MIN
MAX
Types of Oil
Reaction Time
ATF
20w20
10w30
