Lingenfelter L820xxxxxx Lingenfelter C5 C6 Corvette Billet Pedal v1.1 User Manual

Page 4

background image

Page 3.

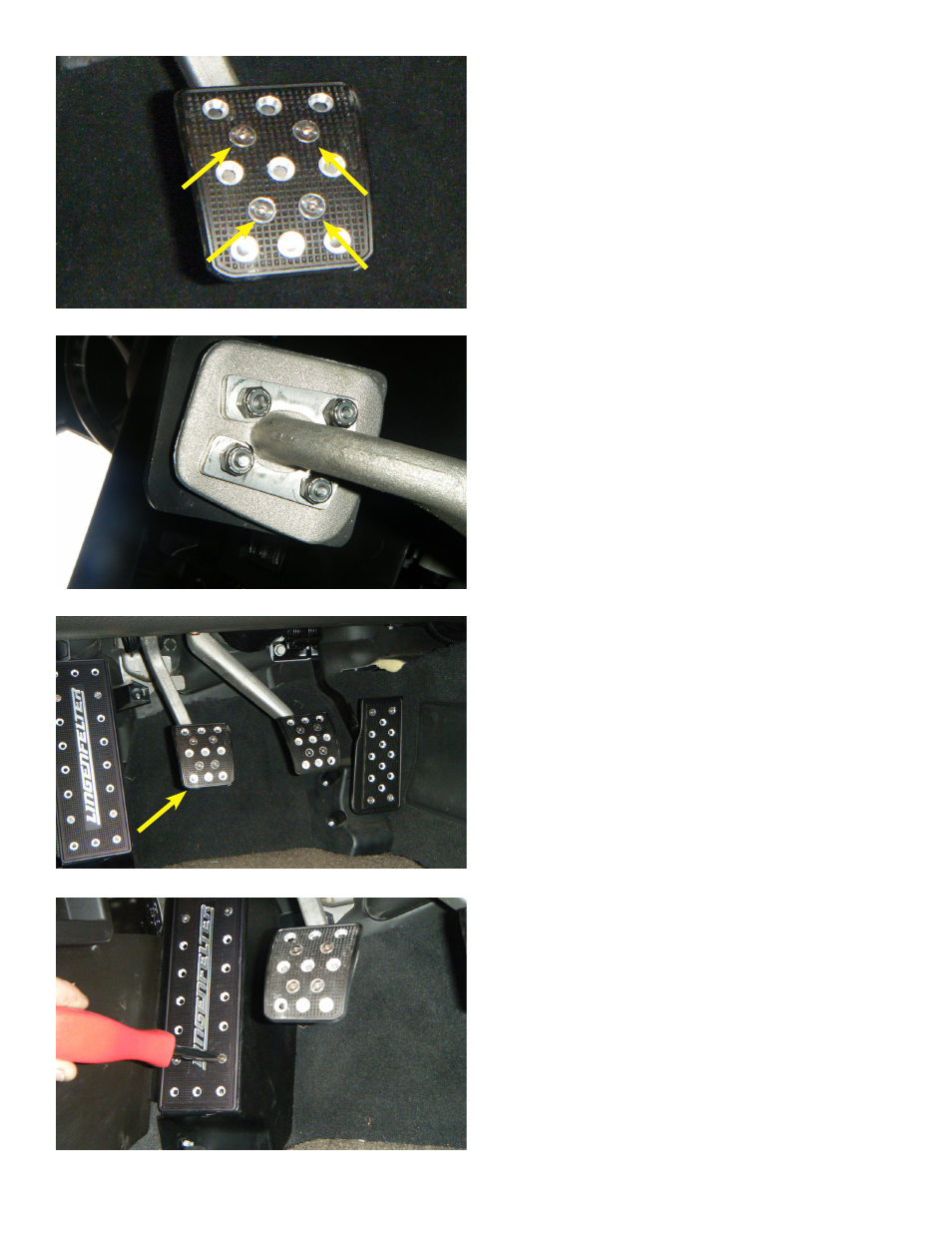

4. The pedal cover will be installed in the

following step. The location of the supplied

mounting bolts are shown in the illustration.

5. Mount the pedal cover with the supplied

clam shell brackets, bolts, and lock nuts as

shown. The arrows in step 4 show the placement

of the bolts on the front of the cover.

NOTE: To ensure that the pedal cover is

sufficiently fastened to the pedal, make sure that

the end of the bolt extends through the lock nut.

6. For MT applications, repeat step 5 for the

clutch pedal.

7. Mark the screw locations on the foot rest

and drill the pilot holes using the 1/8” drill bit.

Using a Phillips head screwdriver and four (4) of

the self tapping screws included, screw on the

foot rest cover. Take care to ensure that the foot

rest cover is straight and covers all of the OEM

foot rest.
