Picture to be added – Lingenfelter L820xxxxxx Lingenfelter C5 C6 Corvette Billet Pedal v1.1 User Manual
Page 2
Page 1.
Parts List
LPE C5/C6 Corvette Pedal Cover Kit Installation Instructions (MT/AT Applications)
C5 & C6 Corvette Pedal cover kit MT Wide Gas Pedal L820040197
#
Description
1
Wide gas pedal cover
1
Brake pedal cover
1
Clutch pedal cover
1
Foot rest cover
8
8 x 1/2”self tapping countersink screws
8
8-32 lock nuts
8
8-32 x 1” bolts
4
Clam shells brackets
C5 & C6 Corvette Pedal cover kit MT Standard Gas Pedal L820140197
#
Description
1
Standard gas pedal cover
1
Brake pedal cover
1
Clutch pedal cover
1
Foot rest cover
8
8 x 1/2” self tapping countersink screws
8
8-32 lock nuts
8
8-32 x 1” bolts
4
Clam shell brackets
C5 & C6 Corvette Pedal cover kit AT Standard Gas Pedal L820050197
#
Description
1
Standard gas pedal cover
1
Brake pedal cover
1
Foot rest cover
8
8 x 1/2” self tapping countersink screws
4
8-32 lock nuts
4
8-32 x 1” bolts
2
Clam shell bracket
Tools & Materials Required
• Phillips screwdriver or drill bit
• 9mm wrench
• 3/32” Allen key (included in kit)
• Safety glasses
• Flashlight
• 1/8” drill bit
• Silver marker
C5 & C6 Corvette AT
L820050197
C5 & C6 Corvette MT (Standard)
L820140197
C5 & C6 Corvette MT (Wide)
L820040197

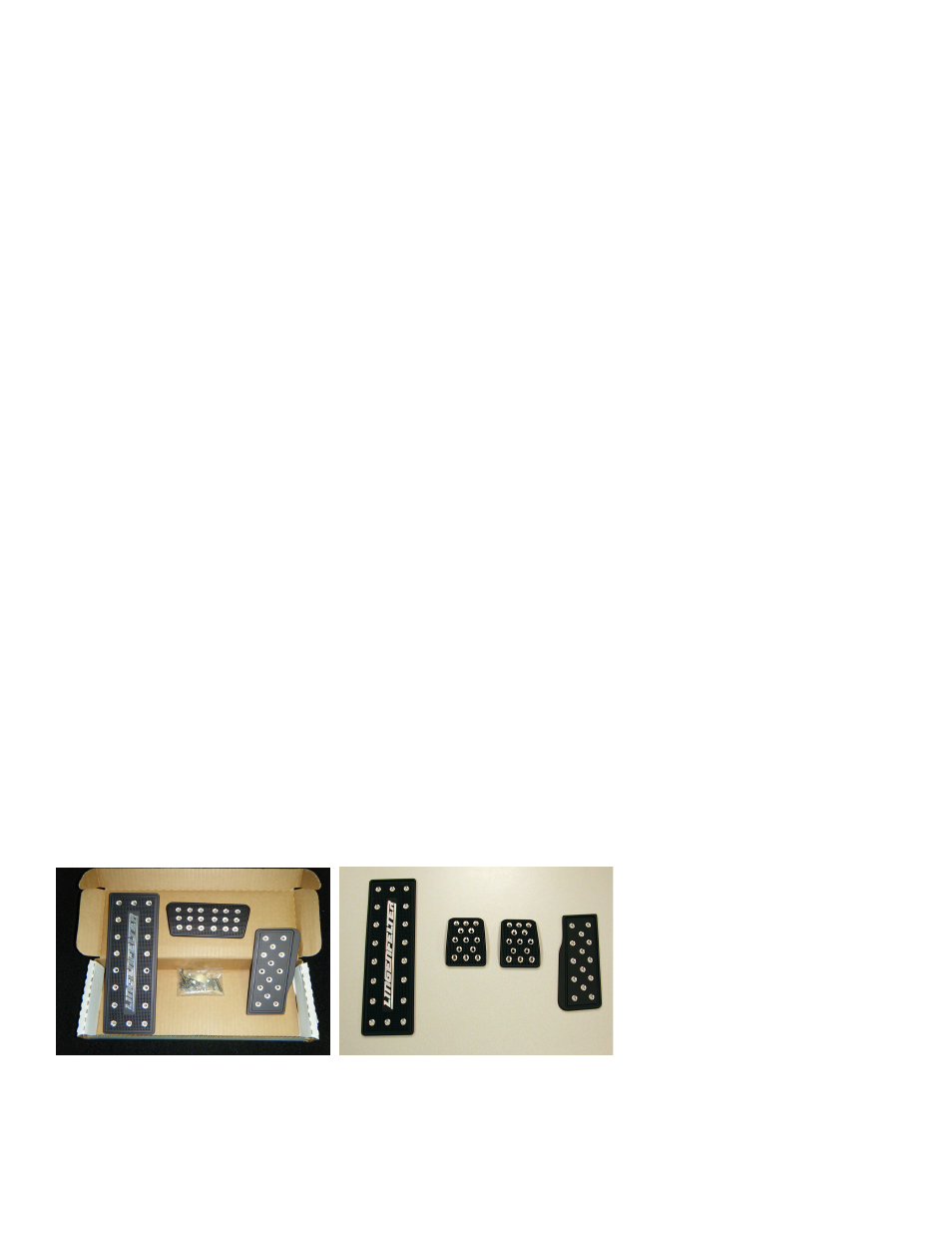

Picture to be
added.
