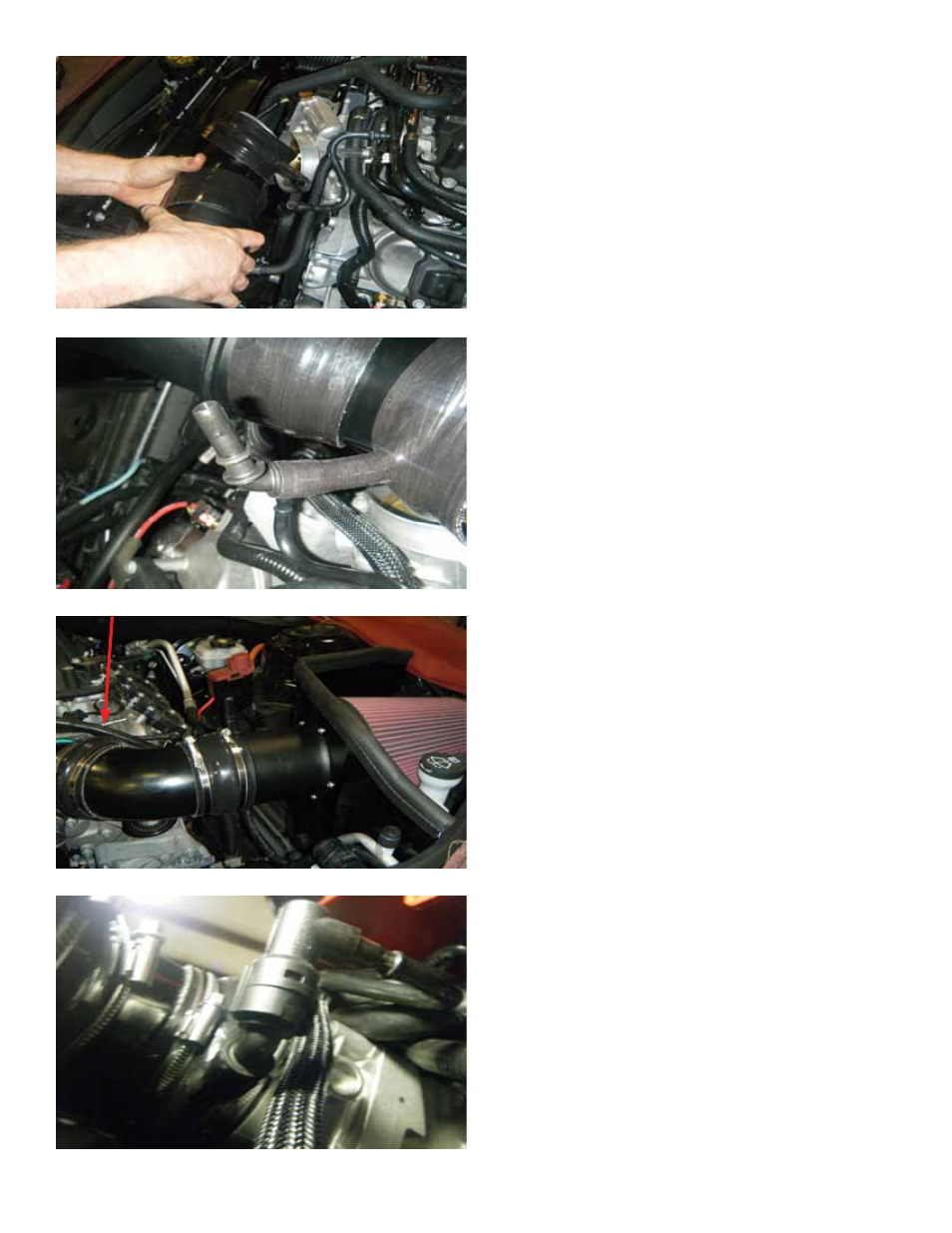

19. Rotate the inlet elbow clockwise until it
can be connected to the throttle body. Connect
the hump hose to the throttle body. Disengage
all four (4) of the worm gear clamps and place
the clamps over the narrow parts of the hump
hoses. Using an 7mm socket, secure the hump
hoses. Do not overtighten. To improve the
appearance you may want to align all of the
clamps in the same direction and position.
20. Connect the stock PCV tube to the 45
degree breather adapter.
7.
18. Insert the supplied 45 degree breather
hose adapter into the supplied throttle body
hump hose. Clock the adapter so that it points
straight up, as shown in the picture.
17. Install the hump hose and the adapter
hose onto the metal inlet duct. To make
installation easier, connect the inlet elbow to the
MAF sensor housing and point the other end of
the elbow upward, as shown in the picture. If
necessary, silicone lubricant can be applied to the
inside of the silicone hoses to make the assembly
easier to adjust.
Note - be careful not to get any silicone lubricant
or any other fluids on the MAF sensor.
