Step 17. Installation of plastic radiator shroud
NOTE: components in your car’s engine compartment may be hot depending upon how long you let it
run in the previous step. If needed, let the engine cool before preceding to the last step.
- Installation of the radiator shroud is the reverse of the Step 1 disassembly.
NOTE: The CTS-V comes with three different styles of radiator shrouds. Two are held in place by
clips as shown in figure A, and the other does not have clips as shown in figure B. If your car’s radiator
shroud has the clips, the short rubber seal is not necessary and should look as seen in figure C. If your
car’s radiator shroud does not have clips, place the supplied short piece of rubber seal on the heat
shield, as shown in figure D.
Step 16. Inspection of assembly
- Make sure all tools, rags and debris are cleared from the engine compartment.
- Start up the car and inspect the air intake assembly for any leaks and further tighten hose clamps if
needed.
- Shut off car.

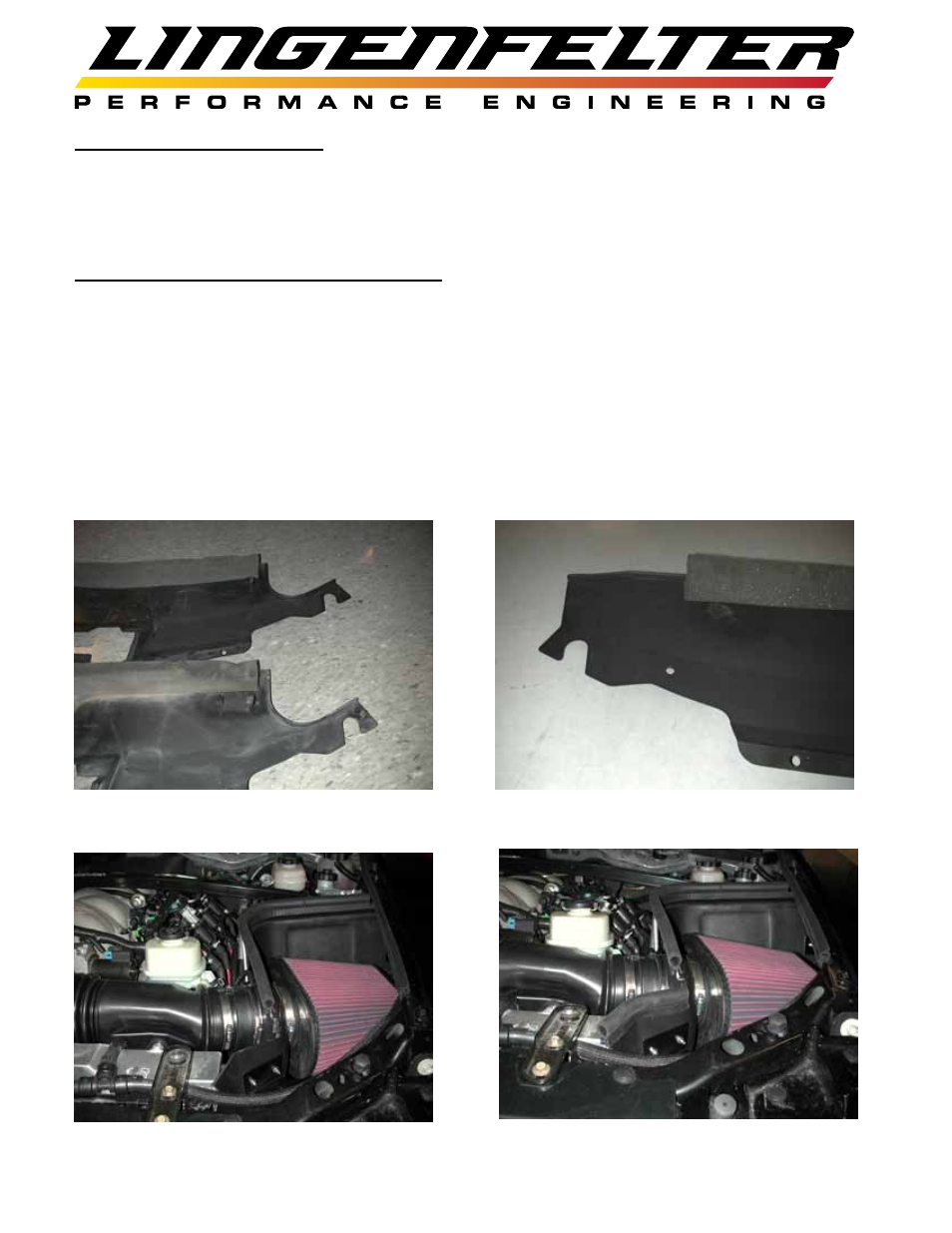

Figure C: heat shield with out rubber seal. Figure D: heat shield with rubber seal.
Figure A: radiator shroud with clips. Figure B: radiator shroud with out clips.
