Lingenfelter L380xx1410 Lingenfelter Camaro Cast 241 MM Aluminum Differential 2010-12 v1.9 User Manual
Page 8
Page

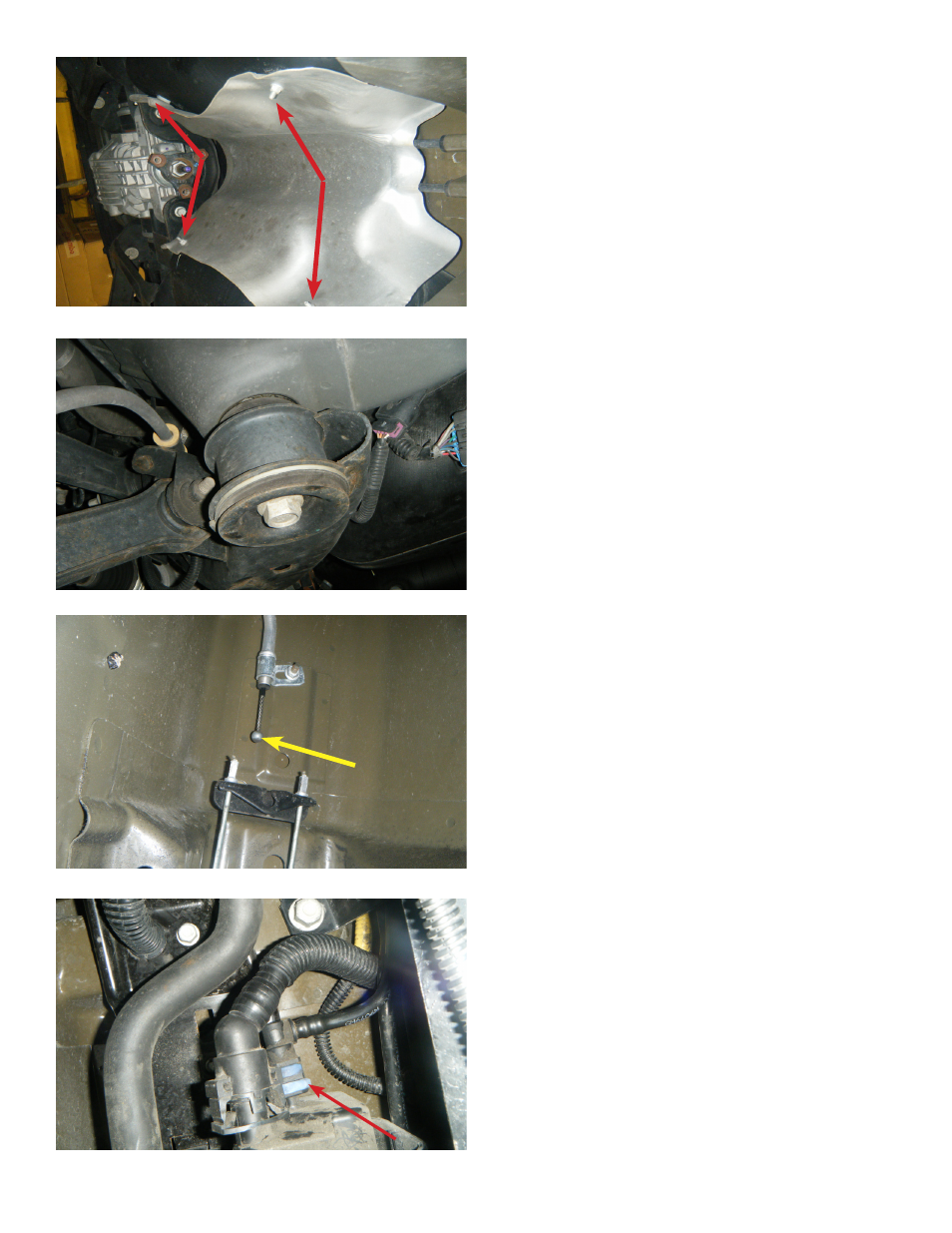

18. Remove the parking brake cables. The
cable shown simply pops off of the black
bracket.
19. Disconnect the evaporative emission lines.
This is located just above the fuel tank.
7.
17. Remove the two (2) front mounting 24 mm
bolts of the rear sub frame. You may want to use
a jack to slowly lower the front of the sub frame.
This step provides clearance to remove the tank
from the vehicle.
16. Remove the four (4) 10 mm bolts holding
the heat shield closest to the gas tank.
