Lingenfelter L220220206 Lingenfelter C6 Z06 Corvette 10 Rib Supercharger Drive Kit v0.1 - Manual (Page 4)

Page 3.

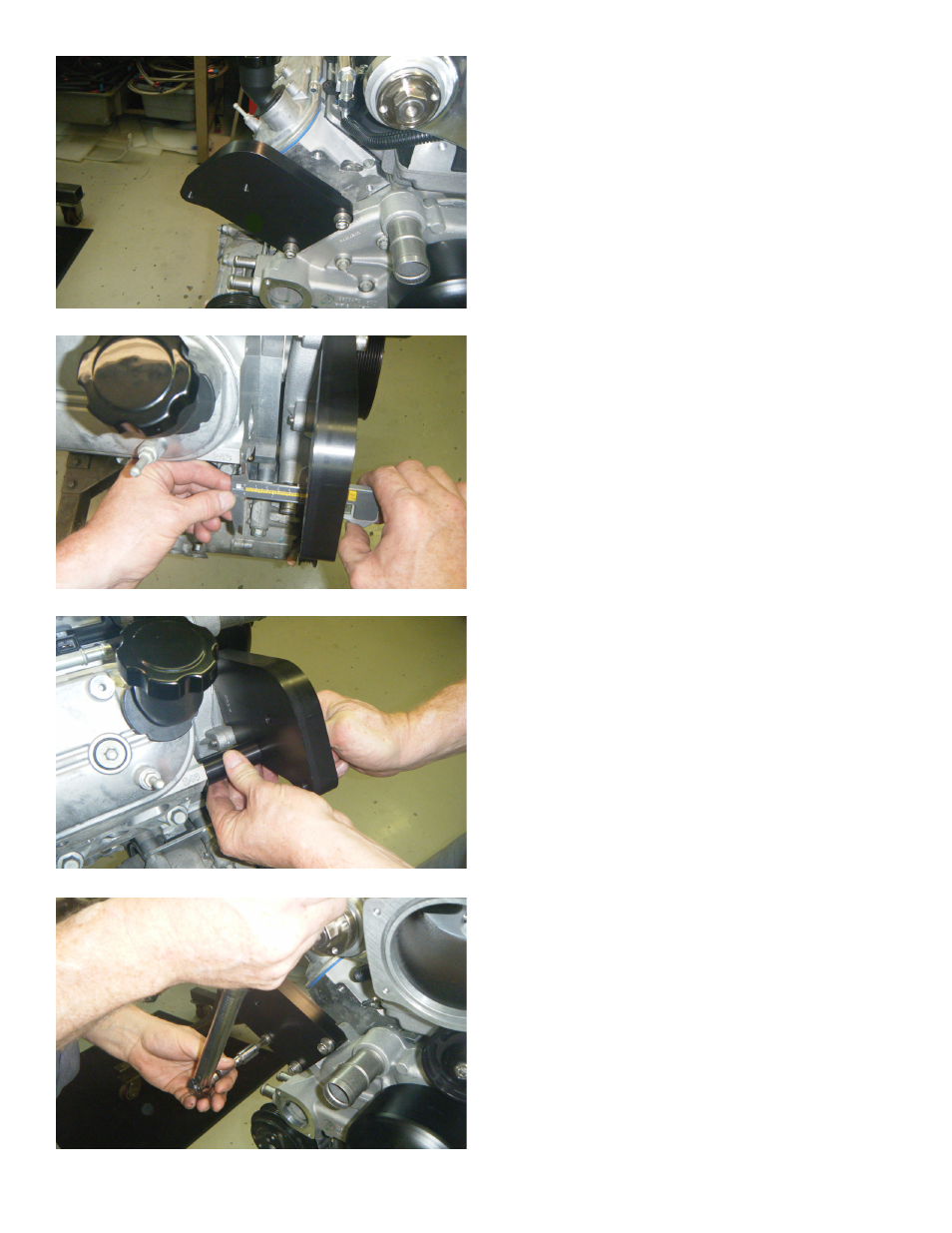

4. Install the LPE supplied 10 rib bracket
onto the water pump. Torque the bolts to factory
torque specifications.
5. Using a set of calipers, measure the air
gap between the head and the bracket. If the
space between them is larger than 2.395” then
you may need to used the supplied shims to
make up the difference. If the gap is smaller
than 2.395” you may need to take material off of
the spacer. DO NOT TIGHTEN THE BOLT TO
MAKE UP FOR THE GAP.
6. Using the supplied M10x1.5x90mm bolt,
install the bracket support between the head and
the tensioner bracket.
7. Torque the support bolt to 35 ft-lbs.
