LG Motorsports Man Knob - Manual (Page 2)

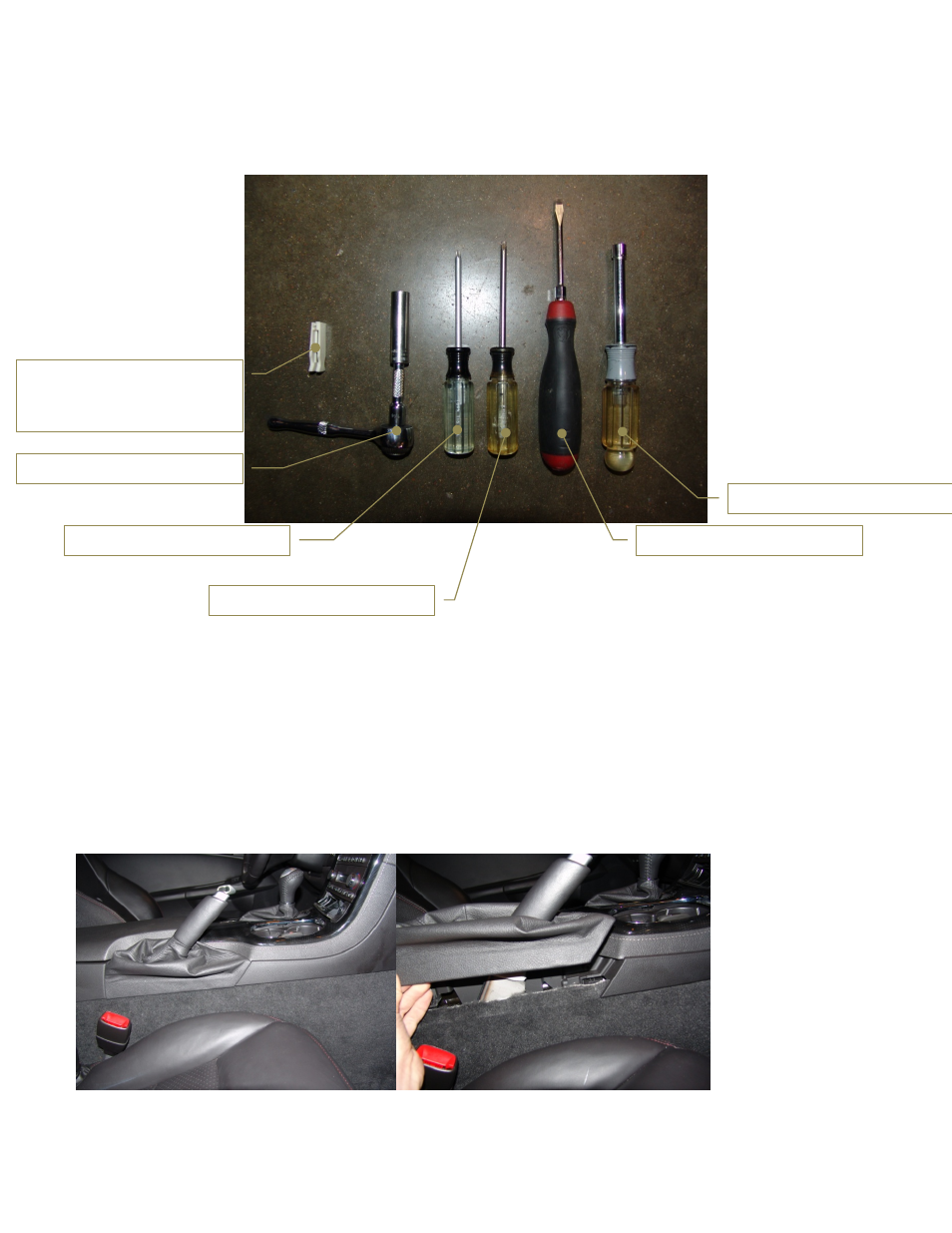

Required Tools:
Disassembly:
In order to install the new Man Switch Knob, you must first remove some of the panels from the interior of your
car to route the necessary wires. First you must loosen the parking brake leather boot. This piece is held on
with 2 retaining clips. To loosen the boot, simply grab the bottom of the boot towards the front and pull up. Next
grab the back of the boot and pull up. (See Figures 1a & 1b) Loosening this boot will expose 2 screws
(See Figure 2). Next using the 7mm Nut Driver you want to remove the 2 screws. Once the screws have been
removed you can remove the passenger side trim panel by first pulling outward the rearmost portion of the
panel over the carpet. Next pull downward the rear of the panel and pull the entire panel toward the rear. This
panel is held on by the 2 screws in the rear and 2 clips in the front (See Figure
3).
Figure 1a Figure 1b
Fuse Removal Tool
(In Fuse Panel:See Figure 10)
10mm Socket & Ratchet
T15 Torx Driver
T25 Torx Driver
Flathead Screwdriver
7mm Nut Driver
