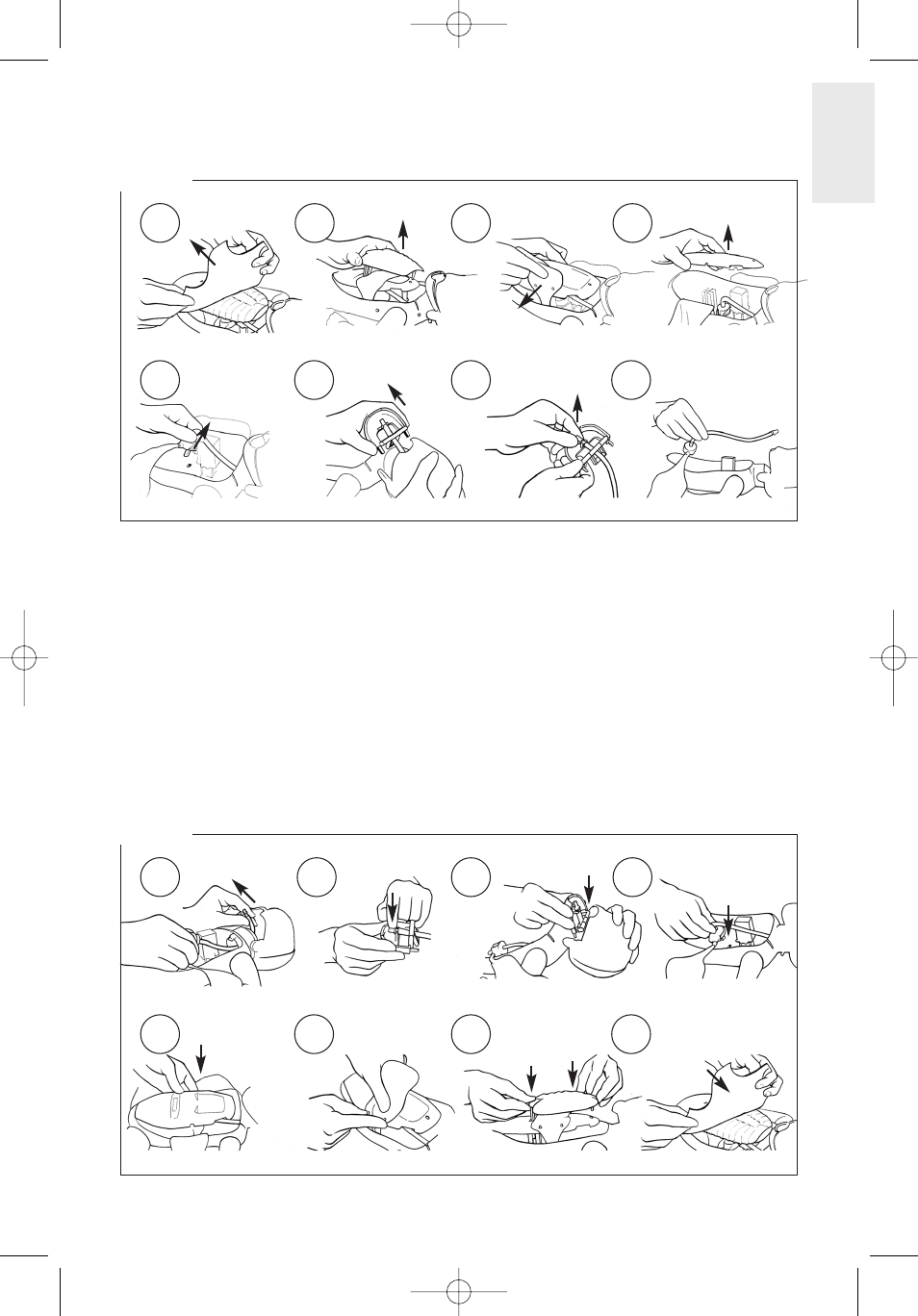

To remove (Fig. 3)
1a Remove chest skin
2a Lift off chest plate
3a Detach lung
4a Remove lung plate
5a Remove lung
6a Lift jaw from inner head
7a Disconnect airway from jaw
8a Remove and throw away used airway
To install (Fig. 4)
1b Insert airway through neck opening
into inner head
2b Slide tubing through opening in jaw and
snap in place
3b Install jaw in head
4b Pull valve and tubing into body.
Push valve into hole in back plate
5b Replace lung plate
6b Align lung on guiding pins
7b Replace chest plate. Important:
Press until upper pin snaps in place
8b Replace chest skin
Fig. 3
Disposable Resusci Baby Airway.
The Resusci Baby Airway is designed for disposal after class
1a 2a 3a 4a
5a 6a 7a 8a
1b 2b 3b 4b
5b 6b 7b 8b
Fig. 4
