Power Supply
Four 1.5 V alkaline batteries, size C.
This will provide approximately 125 hours of use
in the classroom.This will vary depending on use
patterns and brand of batteries.
Changing batteries
When replacing worn out batteries in your
Skillguide Signal Box, we encourage you to
replace them with alkaline batteries.
To replace batteries:
1. Place your thumb on the marked area next
to the arrow.
2. Push firmly in the direction of the arrow to
slide open the battery cover.
3. Remove and discard old batteries.
4. Replace new batteries as indicated on
battery cover.
5. Align battery cover with grooves in battery
compartment.
6. Slide cover and snap closed.
Connection cable
This is permanently connected to the Skillguide
and has an 8 pin male connector which is to be
connected to the manikin.The connector has
been molded for proper orientation prior to
plugging it into the manikin’s side.
Caution:
Make sure that the Skillguide is unplugged from
manikin:
- when airway is changed, or
- when internal service is carried out

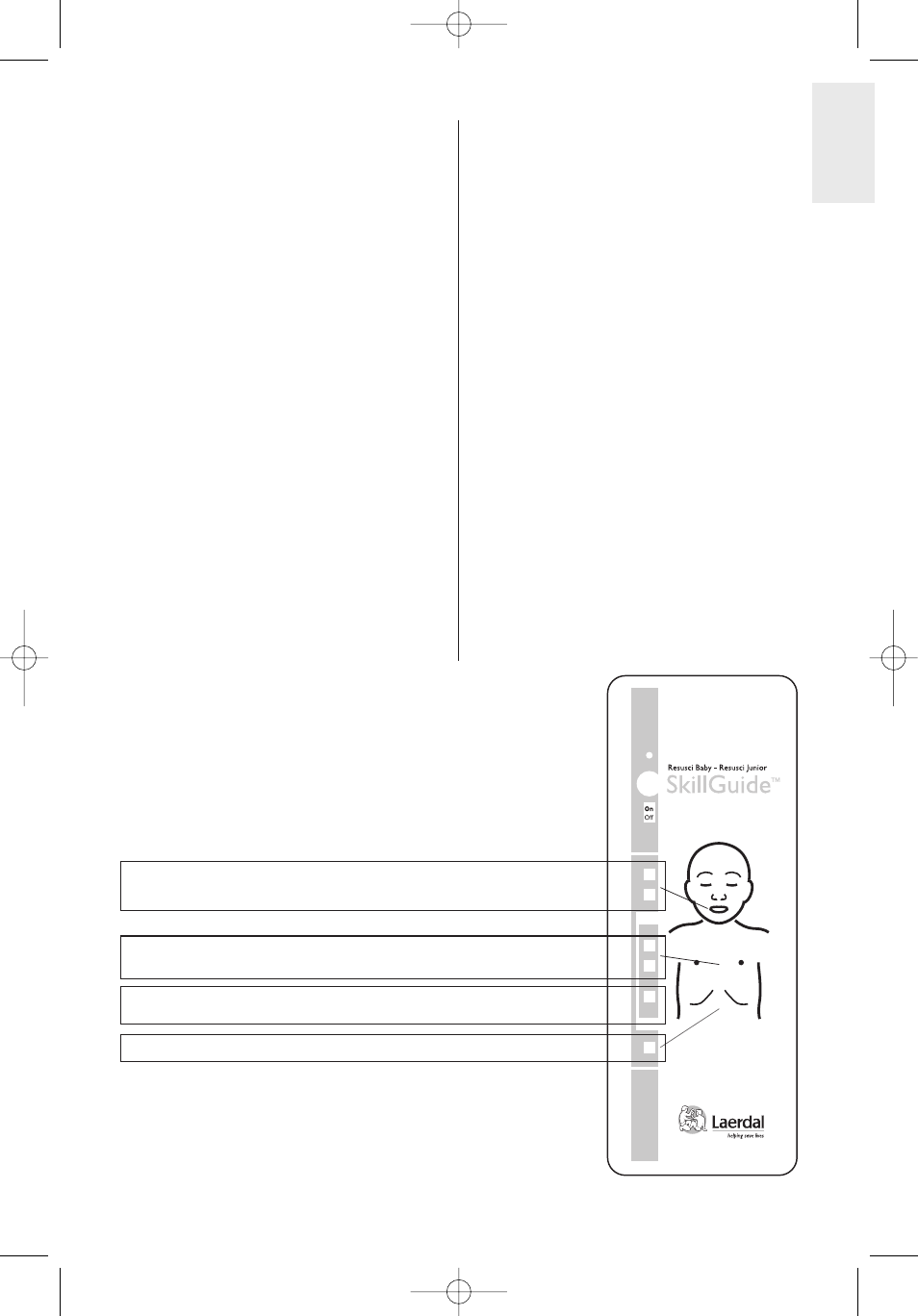

Light Indication Measurement 1, 2
Inflation volume: green correct 40 ml
orange too much 60 ml
Compression depth: green correct 32 mm
Wrong finger position: red Pressure outside
of acceptable area
Too fast inflation red
1. Measurement tolerance in the manikin +/- 15% in normal
room temperature
2. If manikin is used in laboratory tests, remove pants
for accurate measurements
