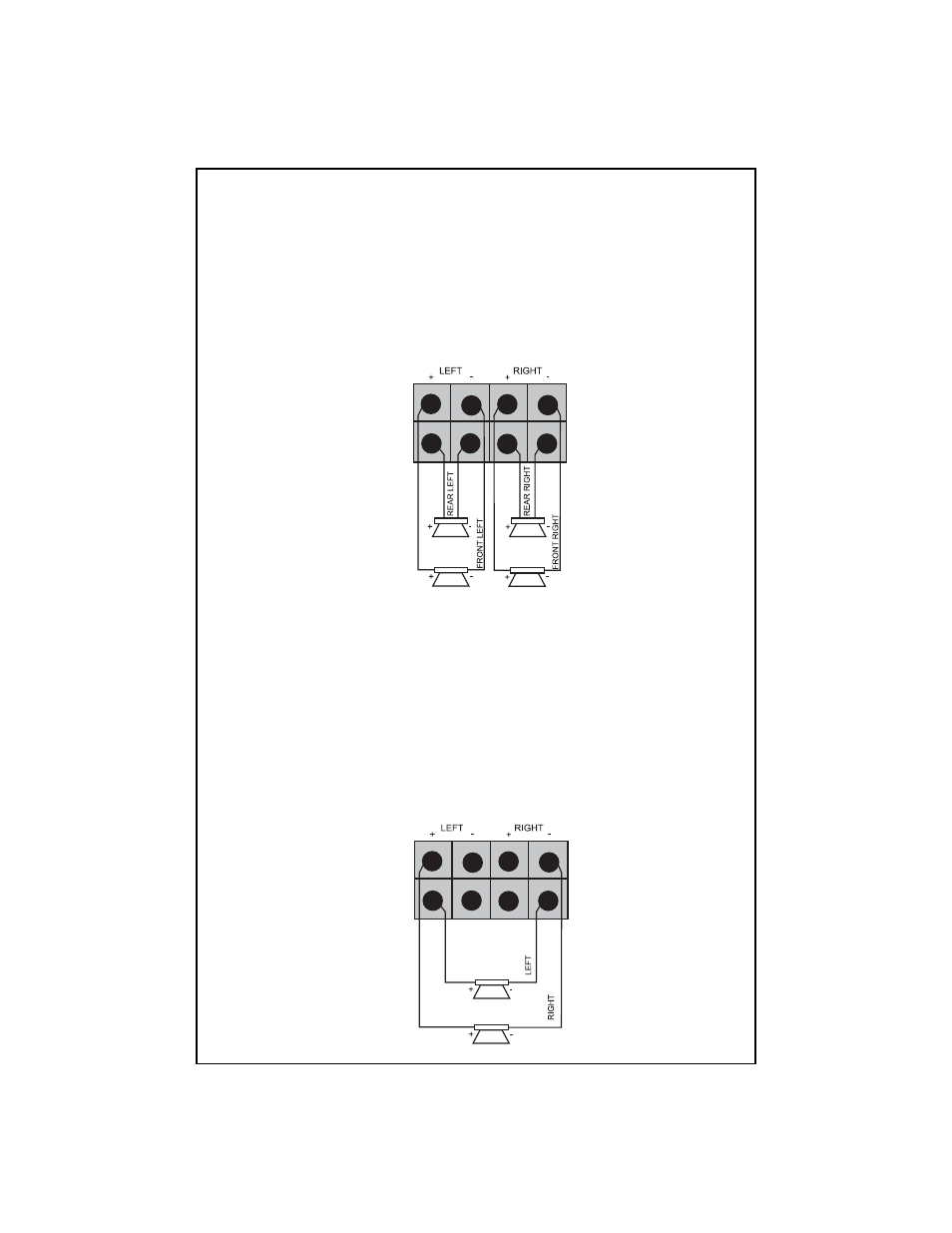

Speaker Connections

Four Channel Stereo Configuration

Front and rear channel lowest recommended impedance is 2W stereo

Crossover mode, output, and gain configurations are independently adjustable
between the front and rear channels.

Two-channel or four-channel input can be used for this configuration. For source
unit fading, use the four-channel input mode.

Front and rear outputs can be configured for high-pass, low-pass, or full range
operation.

Two Channel Bridged Configuration

Front and rear channels are configured for bridged two-channel operation.

Lowest recommended impedance for both front and rear channels is 4W.

Crossover and gain configurations are independently adjustable between the
front and rear channels.

Two-channel operation is recommended for this operational mode.

Front and rear outputs can be configured for high-pass, low-pass, or full range
operation.

Front and rear outputs can be configured for stereo (right channels will have right
output, left channels will have left output) or summed two-channel operation
(front speaker bridged, rear speaker bridged).
