9 Dis-assembling the Resuscitator
Dis-assemble the resuscitator before performing the cleaning procedure. Also see Section
4 - Resuscitator Overview before dis-assembling the resuscitator.

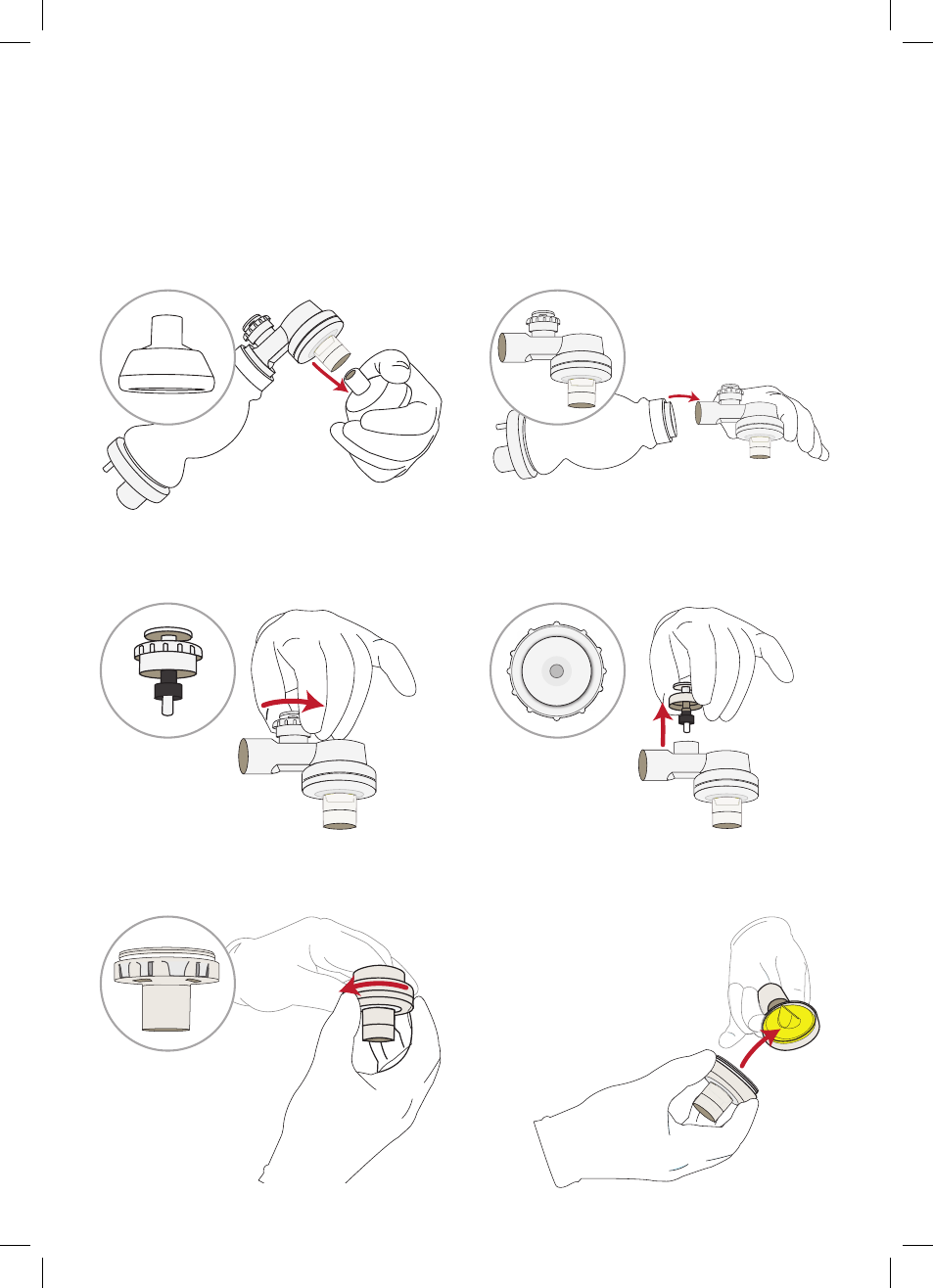

1 Pull the patient mask from the patient
port connector.
2 Pull the patient valve from the bag.
3 Unscrew the pressure release valve
from the patient valve.
4 Remove the pressure release valve. Do
not dis-assemble this part any further.
35
c
m
H
2
O LA
E
R
D
A
L
5 Unscrew the lower patient valve housing
from the upper part.
6 Remove the lower patient valve housing.
