3

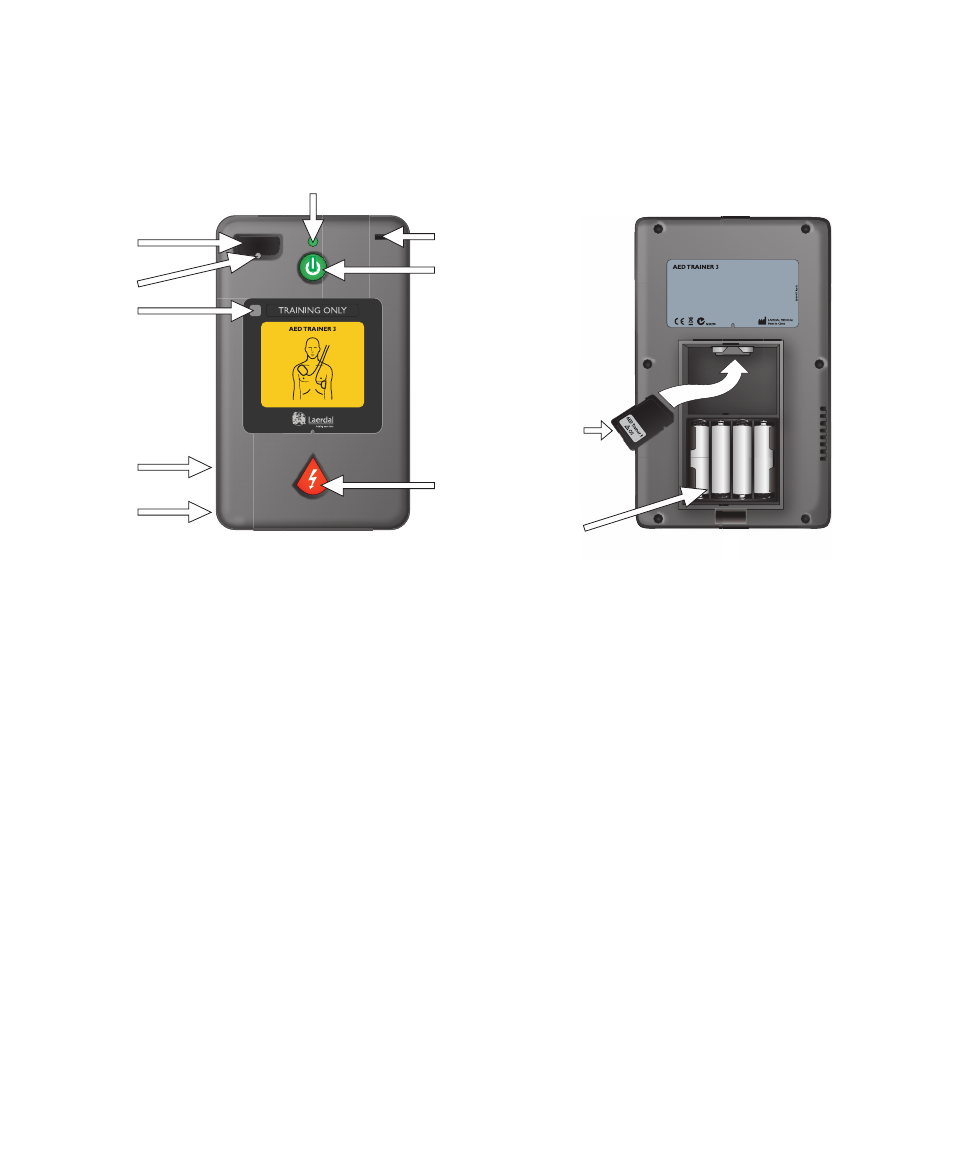

AED Trainer 3 User Interface
H
G
A
B
E
D
F
C
I
K
J
A. Training Pads Connector Socket —
Receptacle for the training pads connector plug.
B. Pads Connector LED — Flashes to indicate the
socket location when device is turned on. Inserted
pads connector plug covers the LED, which stops
flashing when connector plug is properly seated.
C. Remote Control Receiver Window — Receives
signals from the optional remote control.
D. Speaker — Delivers voice instructions from the
AED Trainer 3. Speaker volume can be adjusted with
the remote control or set in the device configuration.
E. Connector — For future use.
F. Green Ready Light — Illuminates when the AED
Trainer 3 is turned on; flashes when device is receiving
commands from the remote control; stays off when
the device is not in use.
G. Infant/Child Key Port — Receptacle for the
Training Infant/Child Key. When Key is inserted, the
AED Trainer 3 operates in Infant/Child mode to
simulate defibrillation of an infant or child under 8
years old or 25 kg (55 lbs).
H. Green On/Off Button — Turns on the AED
Trainer 3 and starts voice instructions.
I. Orange Shock Button — Controls delivery of
simulated shock. The button flashes when a shock is
advised during a scenario.
J. Battery Compartment — Contains the four
replaceable AA size alkaline batteries used to power
the AED Trainer 3.
K. Operating System Card — Contains the Trainer
operating system, all voice commands, and device
configuration. The Operating System Card must be
installed in the AED Trainer 3 to use the device.
