The chart below shows the heat power produced in watts, in kcal per hour, and also in BTU per hour.
1/3 Power(1) 1/8 Power (2) 1/3 Power(1) 1/8 Power (2) 1/3 Power(1) 1/8 Power (2)
[W] [W] kcal / h kcal / h BTU / h BTU / h
iP 450 8 ohms 97 60 80 50 330 200
4 ohms 143 90 120 80 490 310
2 ohms 222 125 190 110 760 430
note 1 Average power with music as program source. The amplifier driven to clip level.
note 2 Normal music power with 9dB headroom, IEC standard power rating.
HEAT POWER
The efficiency can also be calculated, it being the output-power divided by the input-power:
105 watts / 250 watts= 42%.
T= `lkkb`qflkp=
TKN= fåéìí=ЕзееЙЕнбзел=
TKNKN= _~д~еЕЙЗ=беймнл=

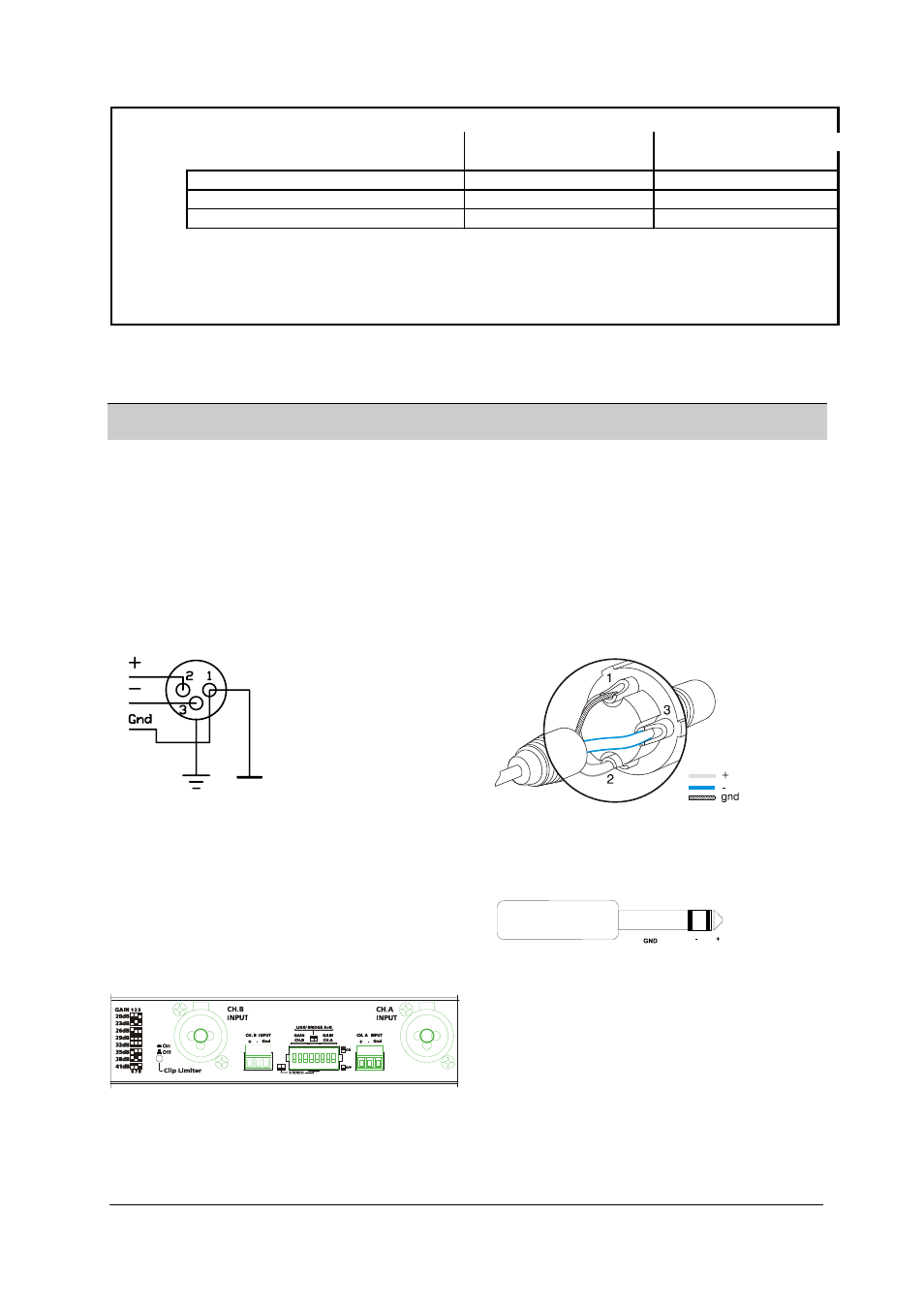

XLR Input connectors are active balanced and wired according to the IEC 268, that is pin 2 hot, and wired
in the following way:
PIN 1
GROUND/SHIELD
PIN 2 HOT (+)
PIN 3 COLD (-)
Figure 4. XLR input connector Figure 5. XLR balanced
Within the Neutrik® Combojack there is a ¼”(6.3mm) phone jack, which is wired in parallel with the
XLR.
TIP HOT
RING COLD
SLEEVE SHIELD/GROUND
Figure 6. ¼” TRS plug
The input impedance is high enough (20 kohms
balanced) to allow ”daisy-chaining”, or multiple
parallel input connections. The headroom of the
input circuits is also high enough to accept the
maximum output level from virtually any low-level
signal source. Balanced signals are less sensitive to AC hum and radio interference. The source impedance
should be less than 1 kohms to avoid high frequency loss in long cables.
To daisy chain amplifiers, use the screw-terminal (Phoenix connector), labeled Link, provided on each
channel. It is connected in parallel with the Neutrik® Combo jack on each input.
