Ring
Cold (signal -)
Sleeve
Screen
(signal
ground)
For un-balanced operation join Ring and Sleeve on either input or output.

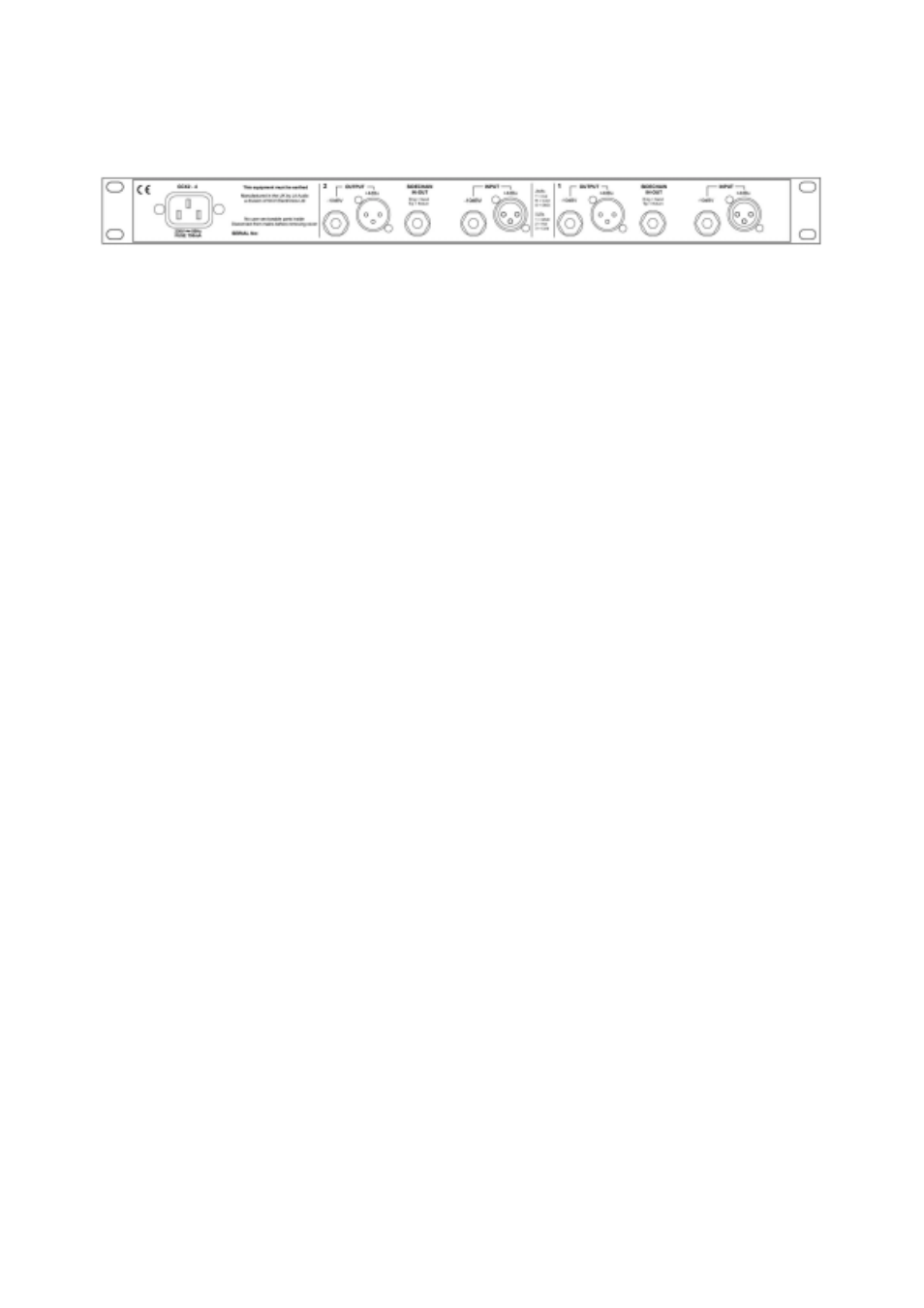

Fig 2.6.1 GCX20
rear view showing Input and Output connections
