Anschlüsse:

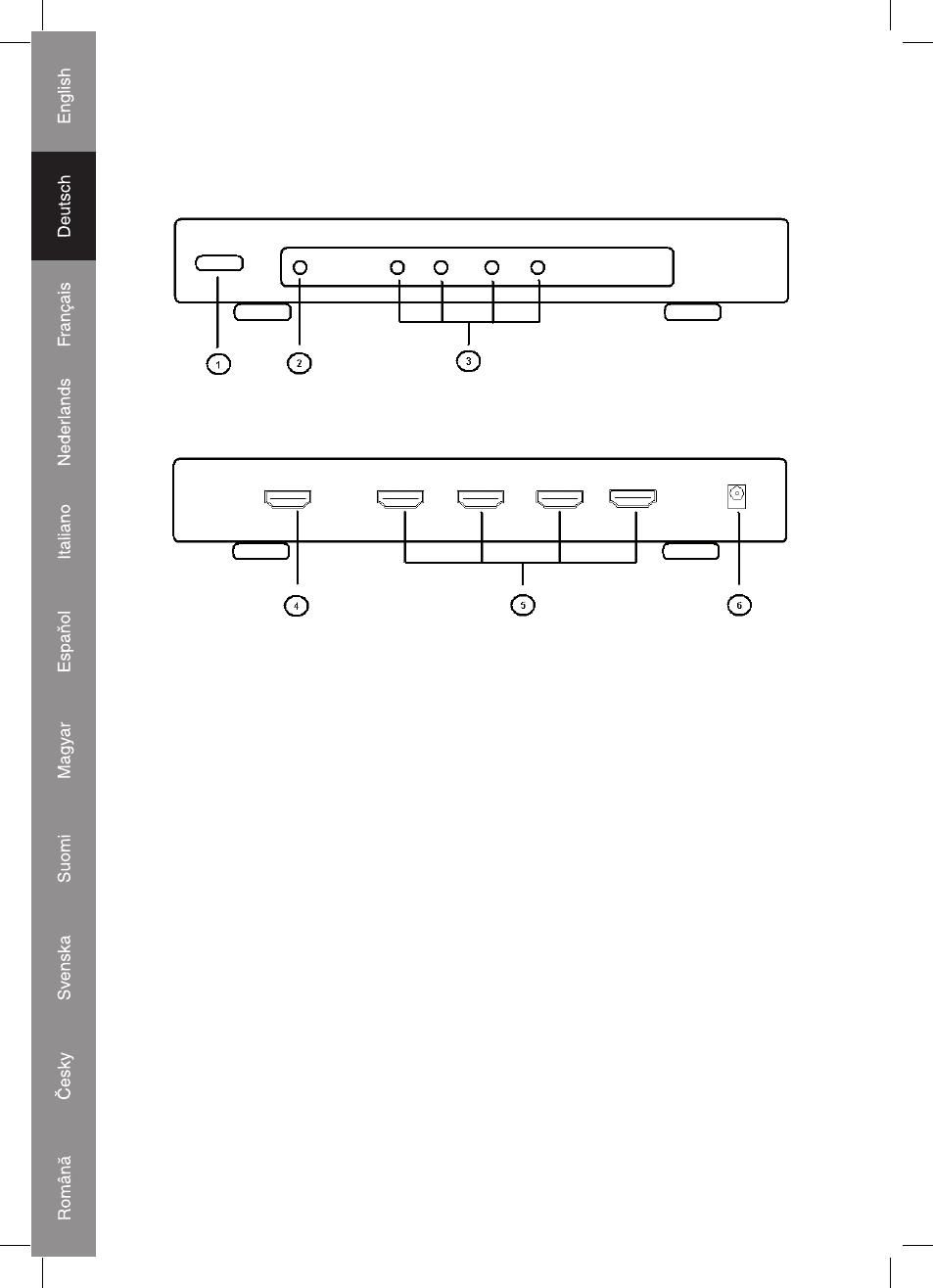

Vorderansicht:
Rückansicht:
1) Netzschalter
2) Netzanzeige-LED
3) Ausgangsanzeige durch LED-Infrarotauge
4) HDMI-Eingangsport
5) HDMI-Ausgangsport
6) Netzteilanschluss
Anschlüsse und Bedienung:
Achten Sie vor der Installation bitte darauf, dass alle Geräte, die Sie anschließen möchten,
ausgeschaltet sind.
• Stecken Sie die HDMI-Eingangsquelle und die Ausgangsgeräte in den HDMI Amplifier
Splitter. (HDMI-Kabel sind optional)
• Stecken Sie das Kabel des Netzadapters in den Netzteilanschluss des Amplifier Splitters und
dann den Netzadapter in eine Netzsteckdose.
• Schalten Sie alle Ein- und Ausgangsgeräte an.
