Konig Electronic 4 port HDMI splitter User Manual
Page 28
28

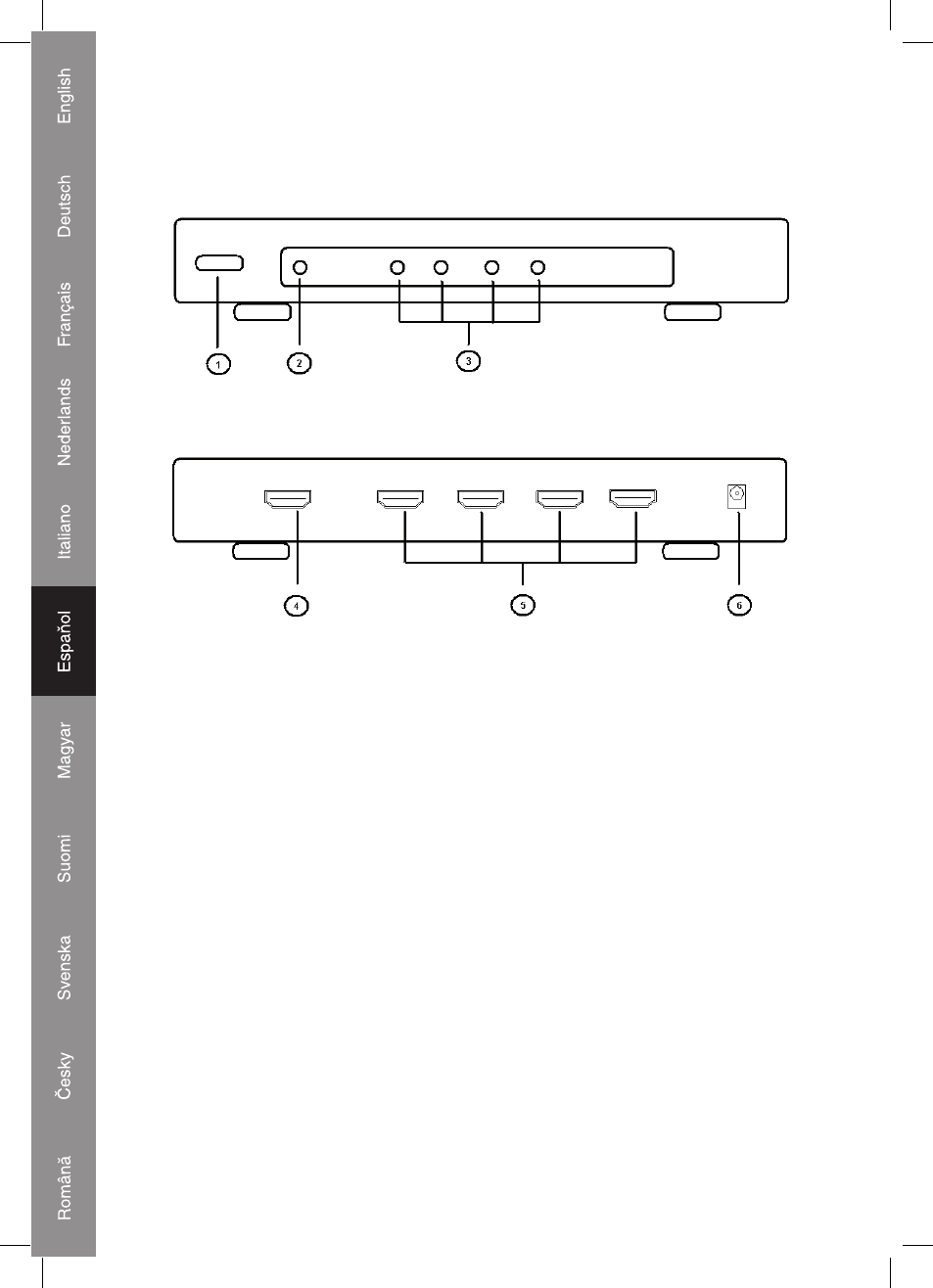

Conexiones:
Vista frontal:
Vista trasera:
1) Interruptor de alimentación
2) LED de indicación de alimentación
3) Ojo infrarojo de la LED de indicación de salida
4) Puerto de entrada de HDMI
5) Salida del puerto HDMI
6) Conexión para el adaptador de alimentación
Conexiones y funcionamiento:
Antes de la instalación, por favor, compruebe que todos los dispositivos que desea conectar
han sido apagados.
• Conecta la fuente de entrada HDMI y los dispositivos de salida al divisor del amplificador
HDMI. (Los cables HDMI son opcionales)
• Introduzca el lado CC del suministro de alimentación de 5 V al conmutador y a continuación,
conecte el lado de CA del suministro de alimentación a la toma de pared.
• Encienda todos los dispositivos de entrada y de salida.
