Environmental
Operating temperature
0 ºC to +70 ºC
Operating humidity 10% to 85 % RH (no condensation)
Storage temperature -10 ºC to +80 ºC
Storage humidity 5% to 90 % RH (no condensation)
Power requirement
Power supply for receiver
5 V @ 2 A, max 5 W
Regulatory approvals
Converter unit
FCC, CE, UL
Power supply UL, CE, FCC
Note: specifications are subject to change without notice.
Package contents
Before attempting to use this unit, please check the packaging and make sure the following items are
contained in the shipping carton:
• VGA UTP receiver
• User’s manual
• 5 V @ 2 A DC power supply

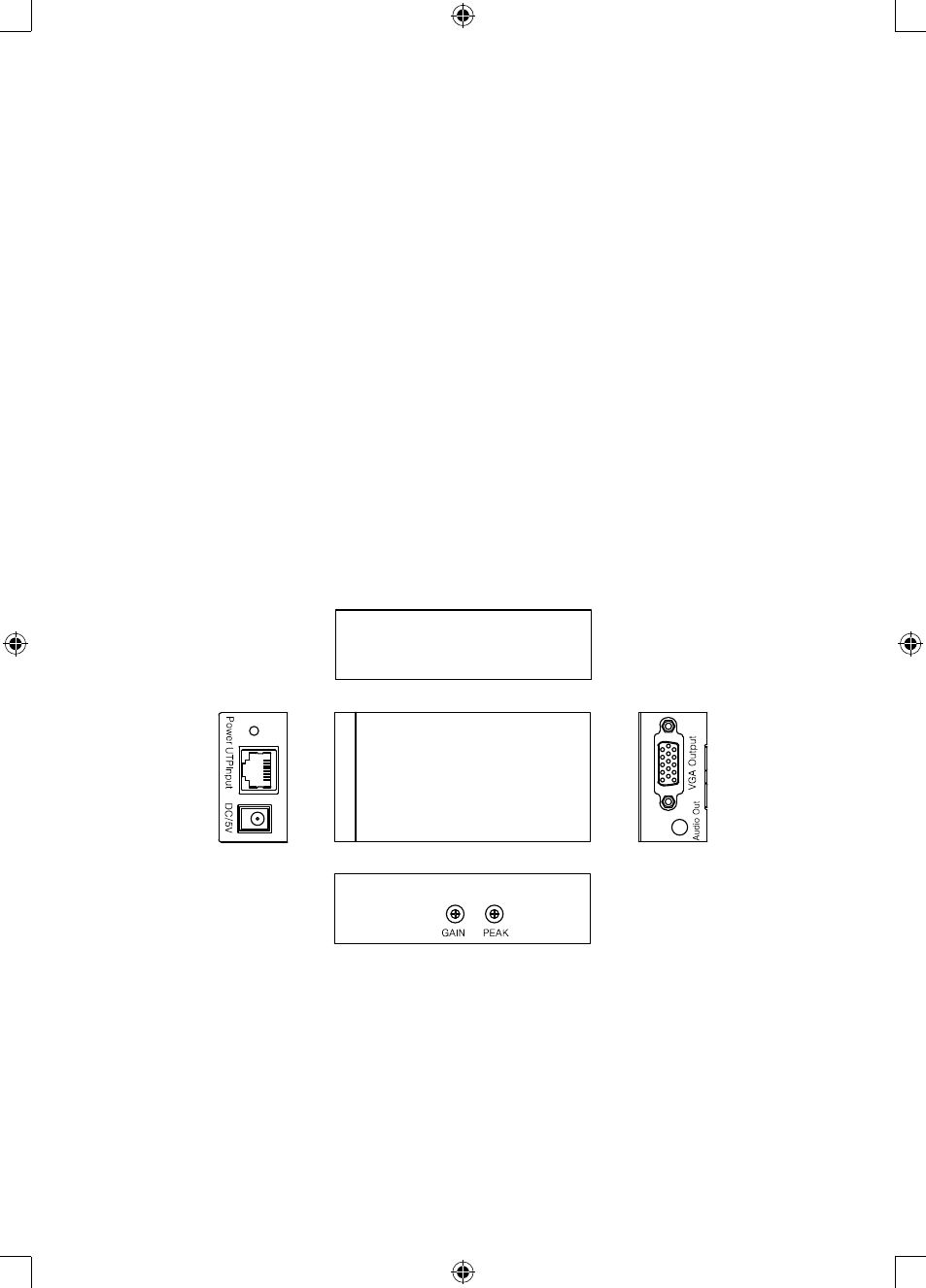

Panel descriptions
Receiver
VGA UTP Extender
With Audio
Receiver
VGA UTP extender
with audio
Connection and operation
• Connect the single VGA source to the main VGA input using a length of VGA cable
• Connect VGA output of the sender to a local display and audio output of the sender to a local
sounder
• Connect sender and each receiver using a length of CAT-5e/6
• Connect VGA outputs of receivers to remote displays and audio output of receivers to remote
sounders
• Plug one 5 V @ 2 A power supply into the VGA UTP 1X 2 splitter and the other 5 V @ 2 A power
suppliers to each receiver individually
Attention: Insert / Extract cables gently.
