User Manual of EZRUN-150A-PRO Brushless ESC HW-SM405ENG-20120630 Page - 4 -

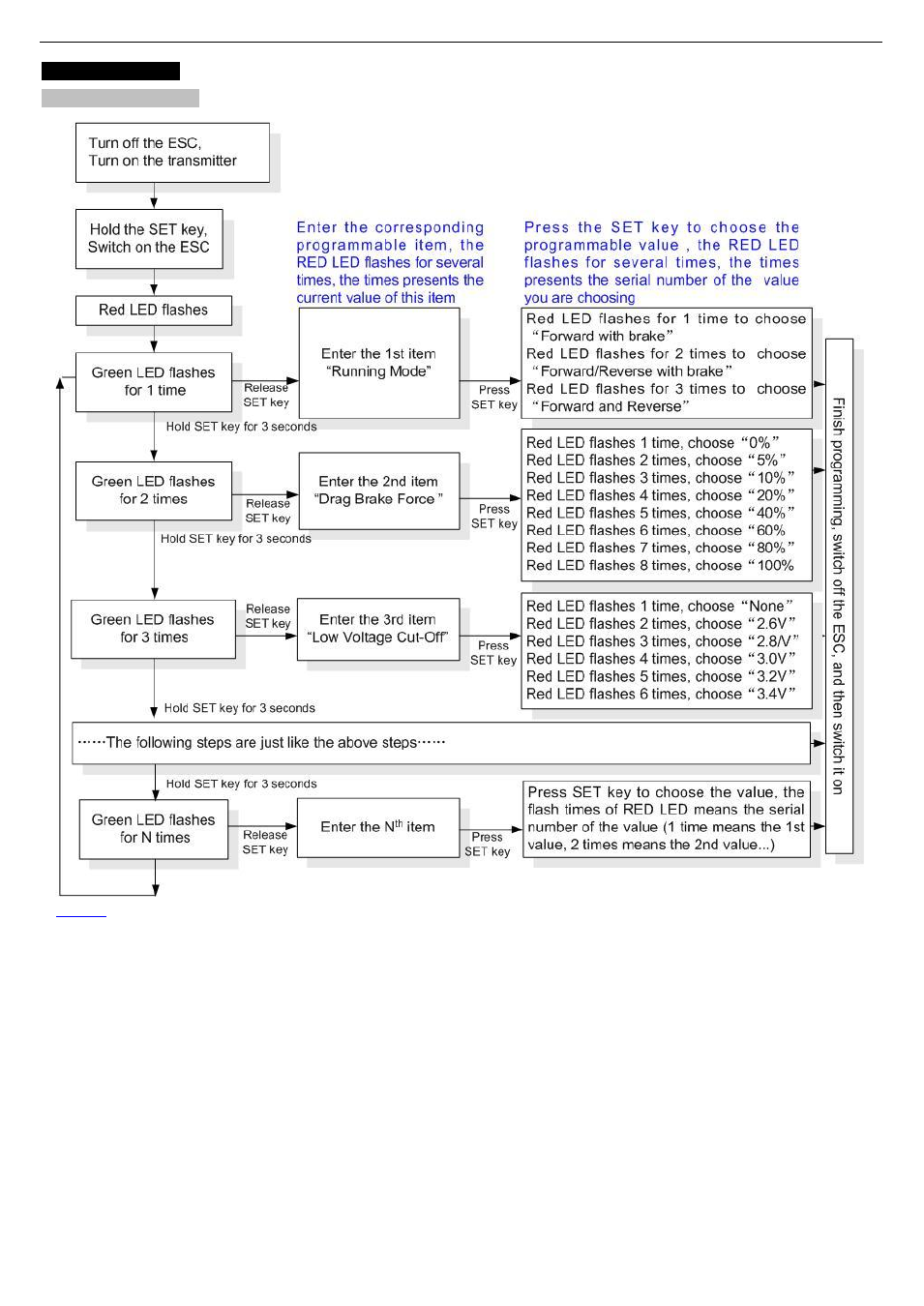

Program The ESC

1. Program Method

Note5:



In the program process, the motor will emit “Beep” tone at the same time when the LED is flashing.



If the “N” is bigger than the number “5”, we use a long time flash and long “Beep---” tone to represent “5”,
so it is easy to identify the items of the big number.

For example, if the LED flashes as the following:

“A long time flash + a short time flash” (Motor sounds “Beep---Beep”) = the No. 6 item
“A long time flash + 2 short time flash” (Motor sounds “Beep---BeepBeep”) = the No. 7 item
“A long time flash + 3 short time flash” (Motor sounds “Beep---BeepBeepBeep”) = the No. 8 item
……

And so on.
