LASER 4&6 3 LASER 4&6 2
LASER
4
&6
SYSTEM
INTRODUCTION
MANUAL
LASER
4
&6
SYSTEM
INTRODUCTION
MANUAL
3 3
5 5
4 4
6 6
7 7
8 8
1. Transmitter
a. Features
b. Layout
c. Specifications
d. Servo Reversing
e. Servo A.T.V. (Adjustable Travel Volume)
f. Mixing
g. Control Stick adjustment
h. Stick Lever tension adjustment
i. Trim levers
j. Dual Rates
k. Landing Gear Switch
l. CH. 3 Throttle E.P.A. (End Point Adjustment )
2. Battery Management
a. Transmitter and Receiver battery
b. Transmitter Batteries
3. Operation
a. Trainer system
b. Range checking
4. Replacement Parts & Accessories
5. Product Service Information
6. Precautions
sdjh
sdjh
sdjh
sdjh
sdjh
sdjh
Table of Contents
Introduction
Thank you for purchasing the Hitec Laser digital proportional radio control system.
The Laser is loaded with features, easy to use and utilizes the latest in solid-state components for
unsurpassed reliability and performance. It is important that you read and understand this manual
before you attempt to operate your system.
www.hitecrcd.com SYSTEM INTRODUCTION MANUAL
System Specifications
1. Transmitter
A. Features( common for Laser 4 and Laser 6 )
- Ergonomically designed 4 or 6 channel FM transmitter.
- High quality precision gimbals with adjustable stick length and tension.
- Servo reversing on all channels.
- ATV (Adjustable Travel Volume) CH 1 and CH 2.
- V-tail and Elevon mixing.
- Trainer system.
- Premium 9.6v 600mA Nicad rechargeable battery pack.(Nicad version only)
- Neck strap attachment.
- Metal carrying handle.
~Feature only for Laser 4
- Easy to read 5 LED battery indicators.
- Low Battery Alarm
~ Feature only for Laser 6
- Transmitter battery voltage meter.
- EPA (End Point Adjustment) on CH 3.
- Dual rates on CH 1 Aileron and CH 2 Elevator
- ATV on CH 4

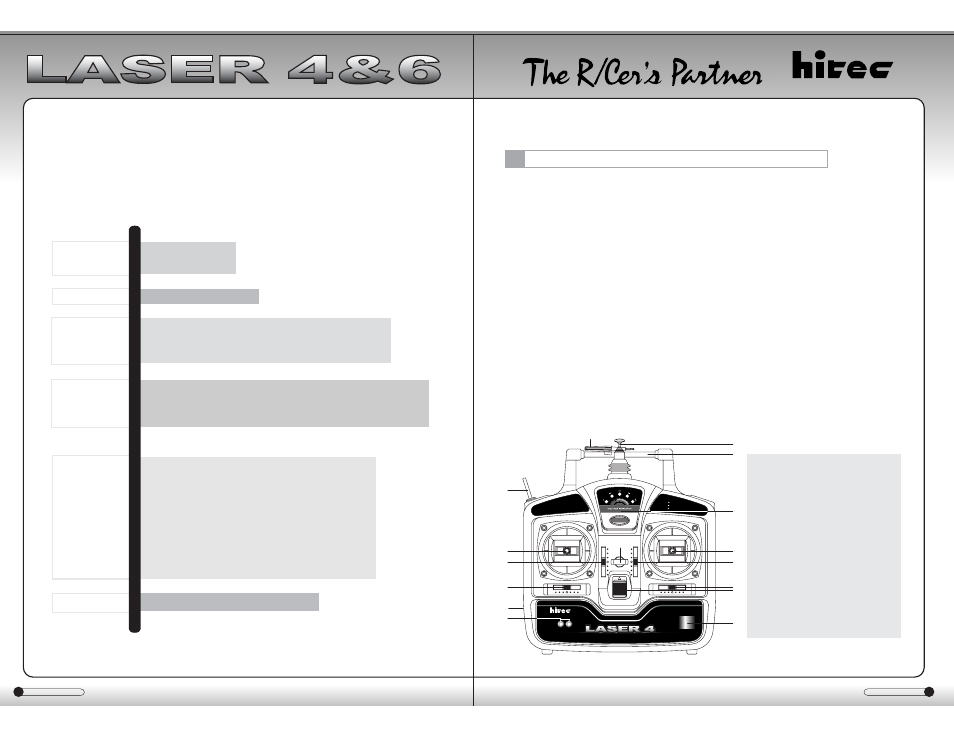

B. Layout (LASER 4 front)
1. Aileron/Elevator stick in MODE II
2. Throttle/Rudder stick in MODE II
3. Aileron trim
4. Elevator trim
5. Throttle trim
6. Rudder trim
7. Trainer ON-OFF switch
8. LED indicator
9. Power switch
10. Rod antenna
11. Neck-strap connector
12. Recharge Jack
13. Crystal
14. Handle
15. Aileron & elevator adjustable
travel volume(A.T.V)
16. Screw Driver
1
8
3
9
10
11
16
12
13
14
15
4
2
5
6
7
Made in Philippines
ATV
CH1 CH2
Digital Proportional FM Radio Control System
FM
V-tail Mixing Elevon Mixing Low Battery Alarm
