Congratulations on your choice of the Hitec X1-200 Touch digital, intelligent
touch screen interface charger from Hitec RCD USA. The Hitec X1-200 Touch is
a high-performance, microprocessor controlled charge/discharge station with
battery management capabilities that are suitable for use with most popular
battery types. The X1-200 Touch also features integrated balancing for six-cell,
Lithium-Polymer (LiPo), Lithium-Ferrite (LiFe) and Lithium-Ion (Li-Ion) batteries.
This unit is simple to use, but the operation of a sophisticated automatic
charger such as the Hitec X1-200 Touch requires some knowledge on behalf
of the operator. These operating instructions are designed to ensure that
you can quickly become familiar with its functions and capabilities. It is
important that you read this manual in its entirety before you attempt to use
the X1-200 Touch charger for the first time.
INTRODUCTION (cont.) SPECIFICATIONS AND CHARGER LAYOUT

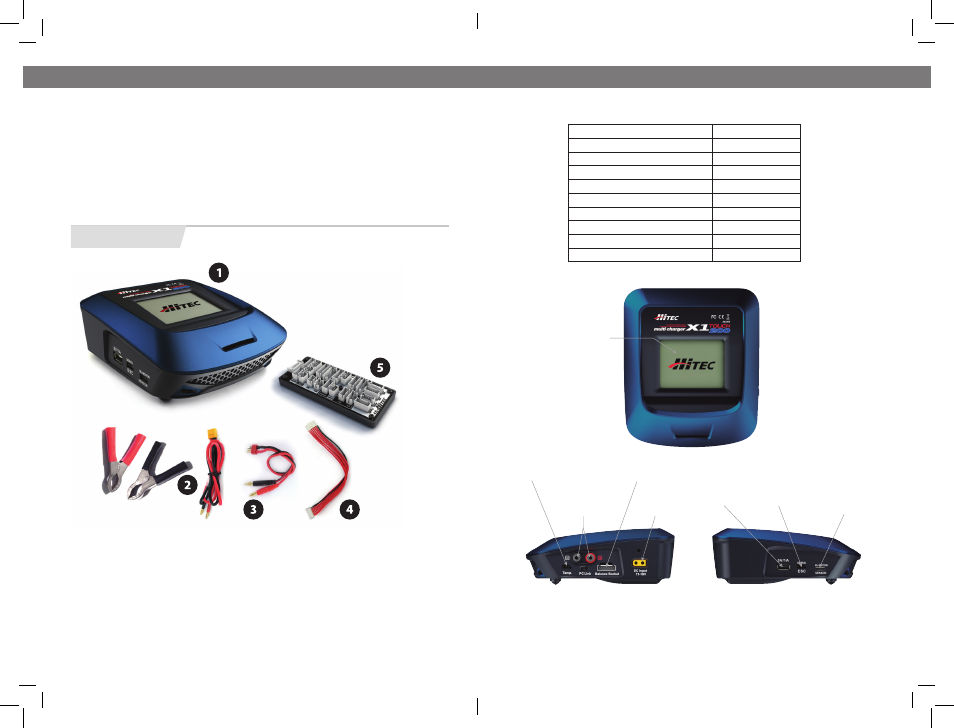

Parts Layout
DC Input 11-18 Volt DC
Charge circuit power 55 Watts
Charge current range 0.1 - 7.0 Amps
Discharge current range 5 Watts
Discharge current power 0.1-2.0 Amps
Current drain for balancing port 200mA per cell
NiCd/NiMH battery cell count 1-15 Cells
LiPo/LiFe/Lilon cell count 1-6 Cells
Pb battery voltage 2-20V
Net weight 19 oz.
Specifications
1. Hitec X1-200 Touch Charger
2. DC Power Cord w/ Alligator Clips
3. 2 Pin T-Type Charging Cable
4. Balancing Board Cable
5. Universal Balancing Board
3.2” Touch Screen Interface
USB 5V/1.0A Servo/ESC Port Brushless Motor
Sensor Port
DC Input
11-18V
4mm Battery
Sockets
Balance Port (XH Type) Temperature Port
