Heath Consultants Mobile Kits - Manual (Page 14)

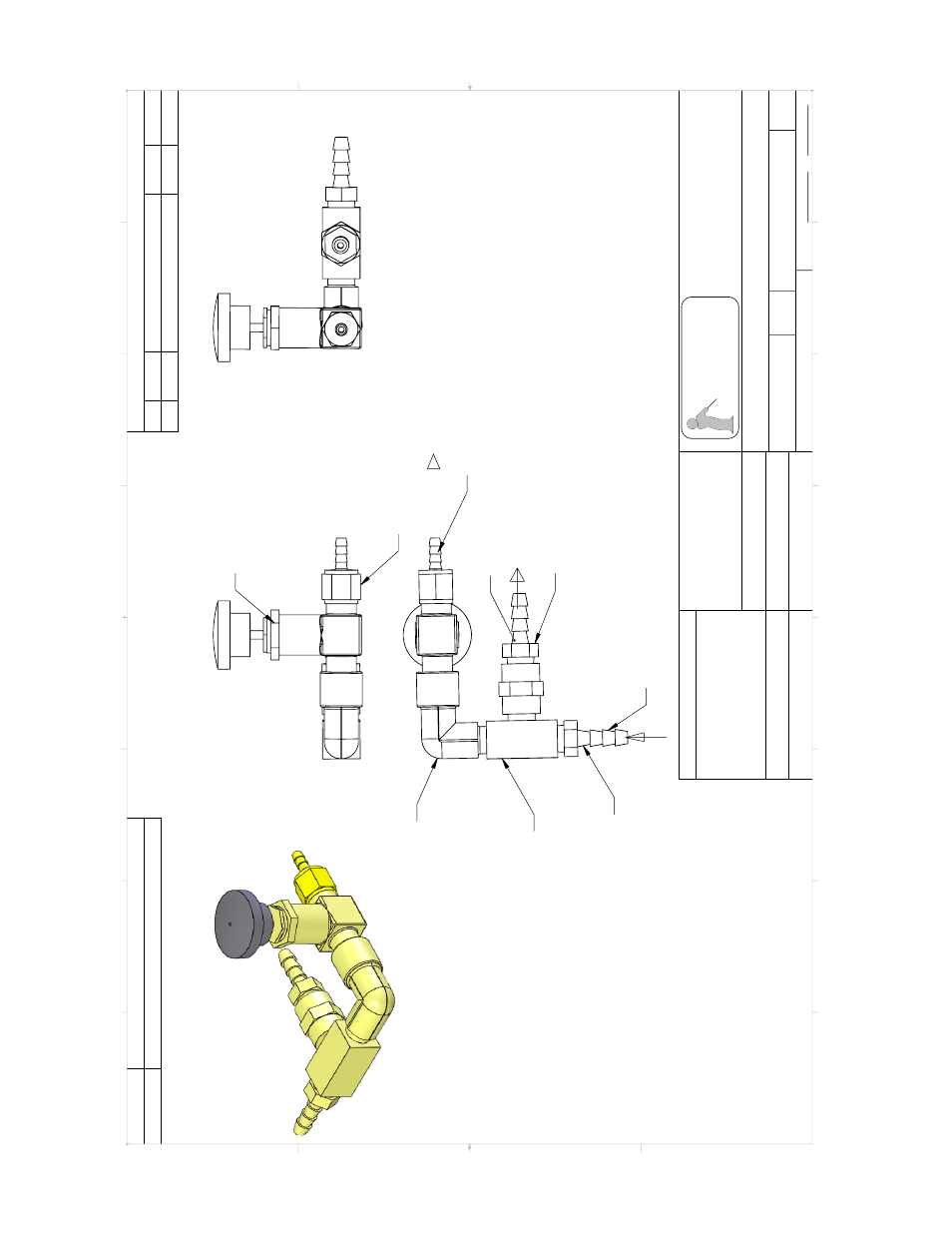

Assembly, By Pass Valve 103517
10
VALVE, NEEDLE 0211932
FITTING, HOSE 1/8 X 3/16 BARB 8300331
ELBOW, 1/8 NPT 0123422
TEE, MALE BRANCH 1/8 NPT 0211934
FITTING, HOSE 1/8 X 1/4 BARB 8300323
INLET PORT, FROM PUMP
INSTRUMENT PORT, TO INSTRUMENT
EXHAUST TO OUTSIDE FITTING, HOSE 1/8X1/4 BARB 8300323 COUPLER, 1/8X1/8 0312967
NOTES: 1- WRAP PIPE THREADS WITH 1.5 TURNS OF TEFLON TAPE P/N 9990344 BEFORE ASSEMBLY.
D C B A
A B C D
1
2
3
4
5
6
7
8 8
7
6
5
4
3
2
1
CONSULTANTS
HEATH
OF
NTS
The contents of this drawing is sole property
of HEATH CONSULTANTS INCORPORATED. This print and it's contents shall not be traced or reproduced without prior written permission from HEATH CONSULTANTS INCORPORATED. It
shall not be used directly or indirectly in any way detrimental to the interest of HEATH
CONSULTANTS INCORPORATED.
DATE DATE DATE
SCALE: FILE NAME:
SIZE:
DRAWING No:
DRAWN BY: CHECKED BY: APPROVED BY:
B
TITLE:
REV:
9030 Monroe Road Houston, Texas 77061
(713) 844-1300
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES DO NOT SCALE DRAWING
TOLERANCES
DECIMALS
ANGULAR
.XX ± .05
.XXX ± .010
.XX ± .05°
NOTICE
SHEET
MATERIAL: FINISH:
1
1
J. FISHER 9-17-10
SEE COMPUTER BOM N/A
ASSY, BY PASS VALVE, MOBILE KIT
DP103517
103517
A
103517-0 PART NUMBER
DESCRIPTION
ASSY, BYPASS VALVE, MOBILE KIT
REV
DATE
BY
ECO
DESCRIPTION
REVISIONS
A
RELEASED
11-29-10
JEF
11283
