32
IND100129-180
All specifications are subject to change without prior notice!
PCA100298-1
Specifications - LAN Module
1/2
This information may not, in whole or in part, be copied, photocopied,
reproduced, translated or reduced to any electronic medium or machine-
readable form without the prior written consent of Hatteland Display AS.
The products may not be copied or duplicated in any way.
Dimensions might be shown with or without decimals and indicated as mm [inches]. Tolerance on drawings is +/- 1mm. For accurate measurements, check relevant DWG fi le.
DATA SHEET
Hatteland Display AS, Åmsosen, N-5578 Nedre Vats, Norway
Tel: (+47) 4814 2200 - [email protected] - www.hatteland-display.com
Note: Product below for illustration only. Location of module and product size/design may differ. Connector/pinning remain the same.

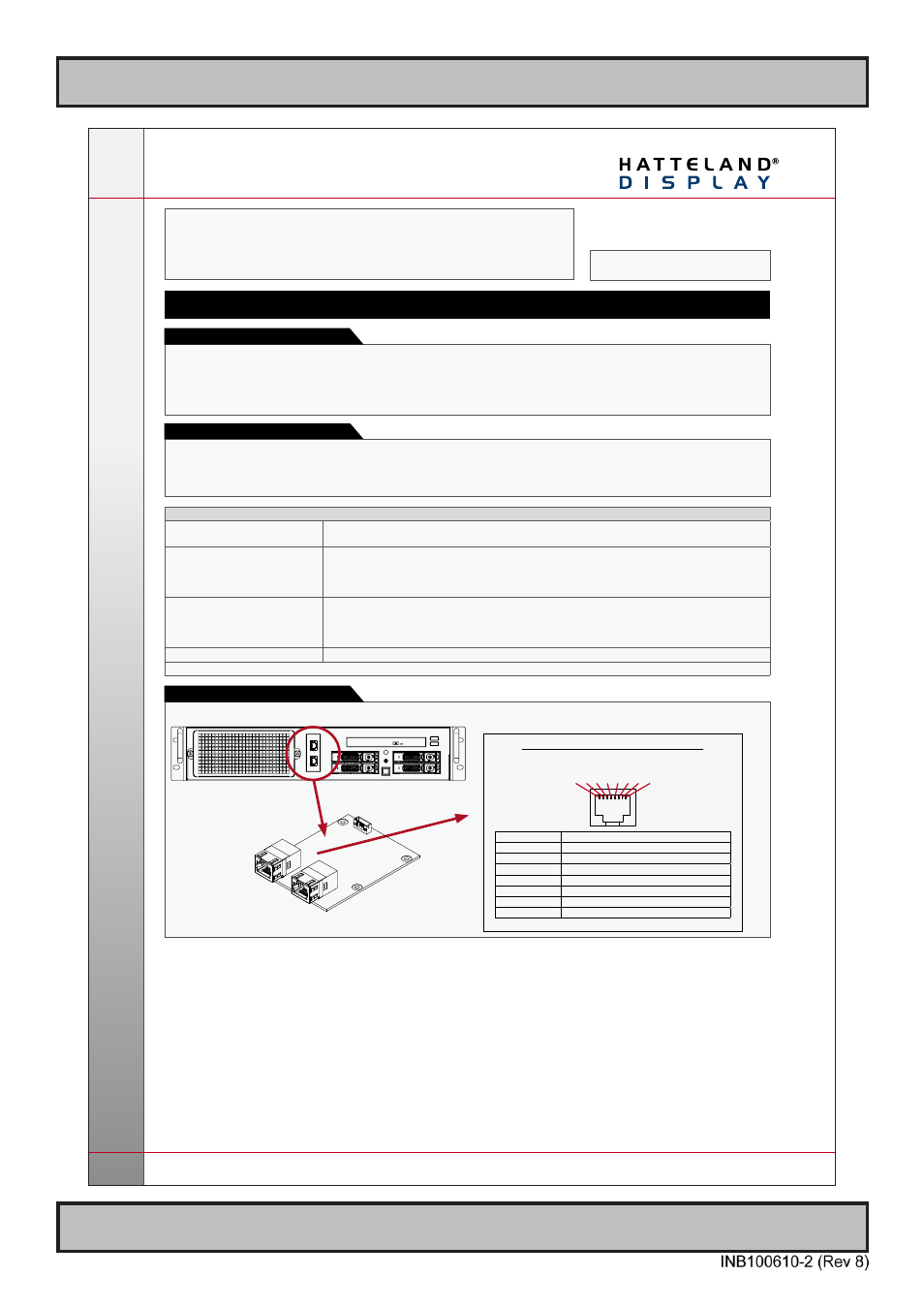

Illustration and Pinning:
2 x LAN RJ-45 - Internal Module
Manufacturer: Hatteland Display AS
Product: Internal LAN Module RJ-45
Typenumber: PCA100298-1
Last Revised: 06 Jan 2015
Revision#: 02
Features:
The Hatteland Display USB->Ethernet module provide the system with dual independent Ethernet ports. The module is connected
internally to the motherboard via standard USB interfaces. Application software access the ethernet channels as standard ethernet
devices, i.e. in the normal case is there no requirements for additional software development. This module can be integrated,
electrical and mechanical, for the product such as Series X 13, 15, 17, 19, 24 and 26 inch Panel Computers and selected Stand-alone
Computers (Please check datasheet for your unit if PCA100298-1 is listed as part of Factory Options).
Description:
Internal 2 x USB to 2 x RJ-45
• Connector
1kV Isolated RJ-45, 8-pin connector and pinning.
Each port as two LED reporting status of transmit/receive
• Test and certi cate Hatteland Display standard,
(tested / type approved by the following classification societies) - *=pending:
IEC 60945 4th (EN 60945:2002), IACS E10,
EU RO MR - Mutual Recognition (covers DNV, BV, ABS, GL, NK and LRS certificates)*
• Supported
Operating Systems (OS)
Embedded Enterprise (WEE): Microsoft® Windows® 7 Professional SP1 32/64bit, Microsoft®
Windows® 7 Ultimate SP1 32/64bit, Microsoft® Windows® Embedded 8.0 Industry Pro MultiLang
32/64bit, Microsoft® Windows® Embedded 8.1 Industry Pro MultiLang 32/64bit,
Linux: openSUSE® 11.4, Fedora™ 15, Ubuntu® 10.04 LTS, Ubuntu® 12.04 LTS.
• Drivers http://www.asix.com.tw/products.php?op=pItemdetail&PItemID=105;71;101&PLine=71
Note: Listed Operating Systems above are hardware/platform dependent. Please check datasheet for speci c unit if OS is supported.
- USB 2.0 and 1.1 Standard Compliant.
- Two internal USB ports are required.
- IEEE 802.3 10Base-T/100 Base-T compatible.
Note: Wake-on-lan is not supported.
8-pin RJ-45 10/100Mbps LAN/Ethernet
PCA100298-1 / HT 00274 OPT-A1
1 2 3 4 5 6 7 8
Pin 01 - TDP Transmit Differential Pair (Positive)
Pin 02 - TDN Transmit Differential Pair (Negative)
Pin 03 - RDP Receive Differential Pair (Positive)
Pin 04 - NC Not Connected
Pin 05 - NC Not Connected
Pin 06 - RDN Receive Differential Pair (Negative)
Pin 07 - NC Not Connected
Pin 08 - NC Not Connected
