Product Labeling
Introduction
This section details the locations, content details and specifications for factory mounted labels for all currently
available standard Hatteland Display Maritime Multi Computer (MMC) models. This information will in most cases also
apply for most Customized Models as well, but may differ based on customer requirements, in that case, please refer
to the customized User Manual (paper or electronic version, dependent on customer requirements).
Label Size and Types

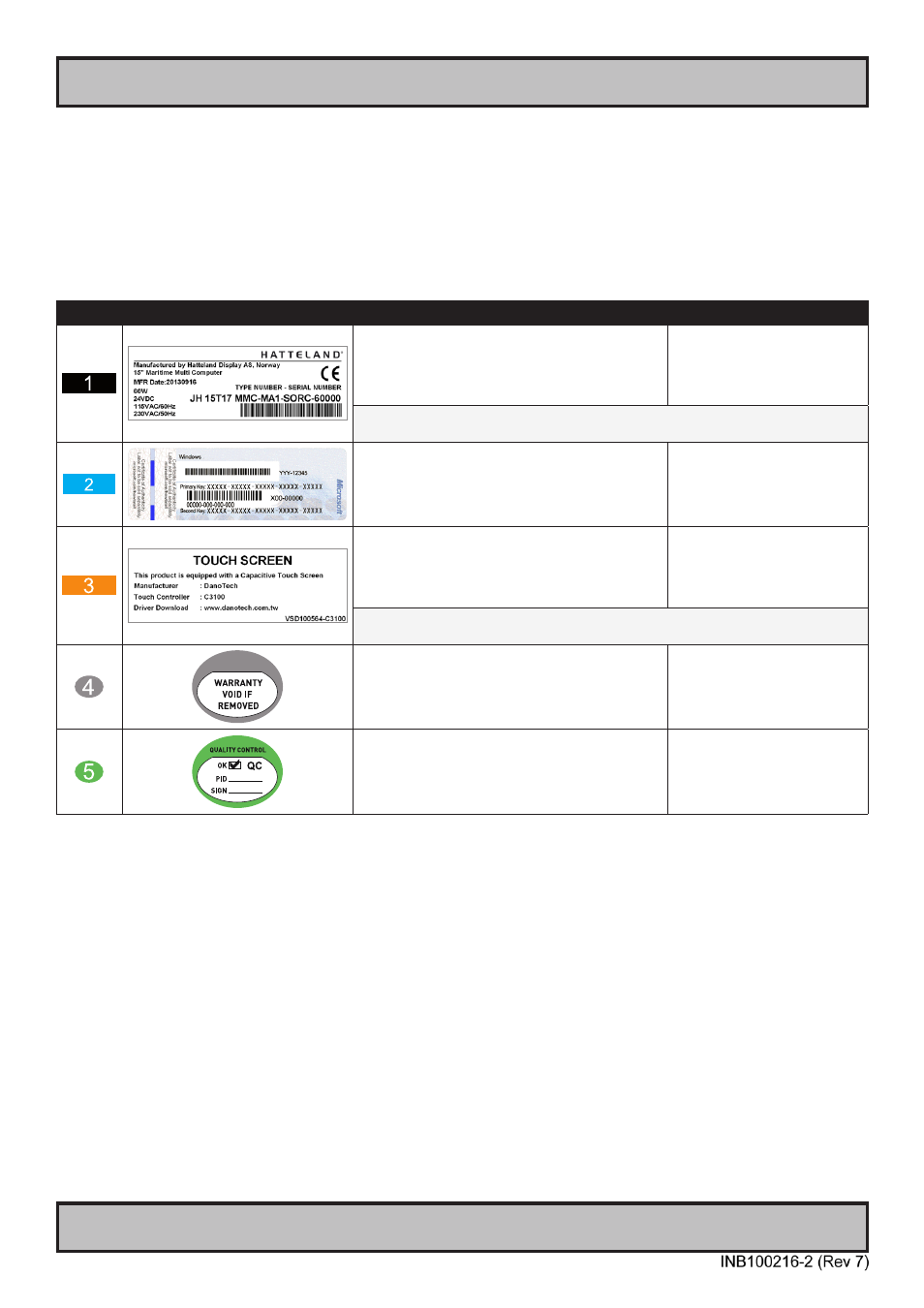

ID Label Layout Description Specification
Type : Serial Number Label
Name : Label B
Size : 60mm wide x 22mm high (rectangle size)
Note: Text content of label will match specifications
derived from Data Sheet.
Silver with glue on back, non-
tearable and made for thermal
transfer printing.
Barcode type: CODE128 (used extensively world wide in shipping and packaging
industries. The symbology was formerly defined as ISO/IEC 15417:2007.)
Type
: Operating System (OS) label.
Microsoft® Windows® Embedded Enterprise only.
Size : 70mm wide x 28mm high (rectangle size)
Note: Label only present if OS was part of factory
option order. Linux OS does not have any label.
As per delivered from supplier.
Type : Touch Screen Label
Name : Label B
Size : 60mm wide x 22mm high (rectangle size)
Note: Only present if Touch Screen was part of factory
option order.
Silver with glue on back, non-
tearable and made for thermal
transfer printing.
Note: Content on label will vary based on Touch Screen type and/or Touch Screen
Controller. Label shown to the right is for illustration purposes only!
Type
: Warranty Label
Size : 30mm wide x 23mm high (oval size)
Tampering proof sticker with glue
on back.
Type : Quality Control (QC) Label
Size : 30mm wide x 23mm high (oval size)
Ordinary sticker with glue on
back.
