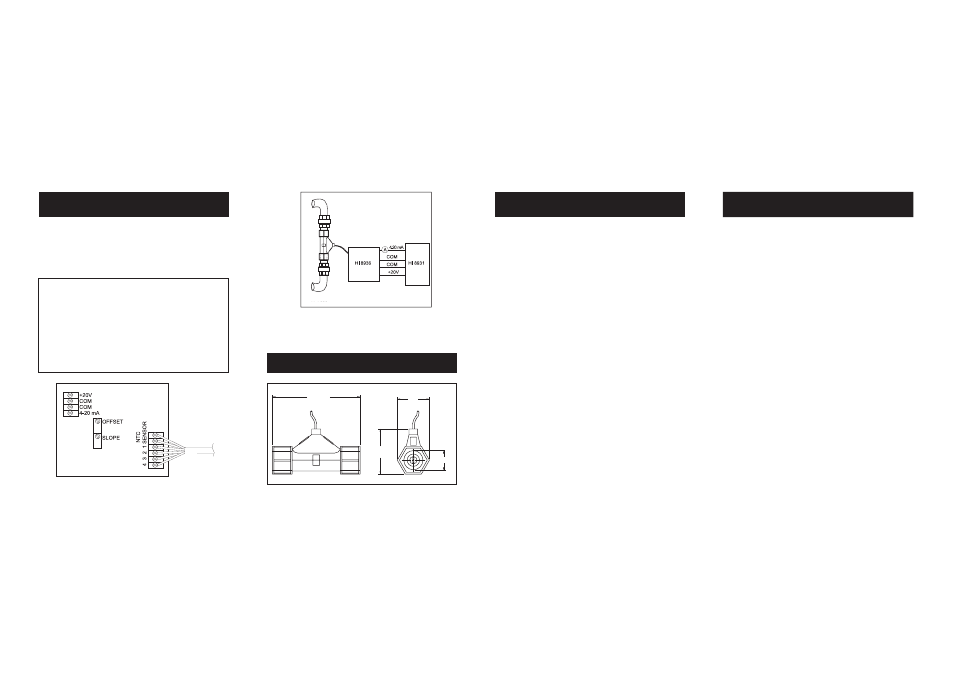

The probes are supplied with a 4 m cable. The wires from
the cable must be connected to the HI 8936 process
Conductivity Transmitter as shown below. The connections
are color coded for an easy installation.

CONNECTIONS

BLACK

NTC SENSOR (HI 7635 only)

RED

NTC SENSOR (HI 7635 only)

GREY/BROWN

probe pin 1

BLUE

probe pin 2

WHITE

probe pin 3

GREEN

probe pin 4

TYPICAL CONNECTION OF THE HI 7635 (or HI 7636) PROBE
AND THE HI 8936 TRANSMITTER TO THE HI 8931 CON-
TROLLER.

MECHANICAL DIMENSIONS

73mm

2.87"

52mm

2.04"

1" NPT

142mm

5.60"

The probes can be compensated for normal contamination
by a process of re-calibration. However, it is recommended to
remove regularly the process conductivity probes from the
system for maintenance.
Deposits on the probe can be removed by immersing it in
0.1N Hydrochloric acid for about 30 minutes. Heavier
deposits may demand longer immersion time.
Clean the electrode thoroughly with water prior to the
reinstallation. On reinstalling, check the seals carefully to
ensure a leak connection.
Note: Always recalibrate the meter when attaching a new
probe.

PROBE MAINTENANCE

WARRANTY

All Hanna Instruments probes are warranted for a period of six months.
This warranty is limited to repair or replacement free of charge.
Damage due to accidents, misuse, tampering or lack of prescribed main-
tenance are not covered.
If service is required, contact the dealer from whom you purchased the
instrument. If under warranty, report the model number, date of pur-
chase, serial number and the nature of the problem. If the repair is not
covered by the warranty, you will be notified of the charges incurred. If
the instrument is to be returned to Hanna Instruments, first obtain a
Returned Goods Authorization Number from the Customer Service depart-
ment and then send it with shipment costs prepaid. If the repair is not
covered by the warranty, you will be notified of the charge for repair or
replacement. When shipping any instrument, make sure it is properly
packaged for complete protection.

All rights are reserved. Reproduction in whole or in part is prohibited without the written
consent of the copyright owner.

IST7635R1 06/05
