HI 76S2-5 NTC thermistor sensor, aluminum tab with mounting
hole
HI 76S2-6 NTC thermistor sensor, PVC encapsulated tip for protection
in aggressive environments
HI 76S2-7 NTC thermistor sensor. Can be housed and used in any
custom application
1.6mm
0.06"
4.7mm
0.19"
12.7mm
0.50"
ALUMINUM
HOUSING
EPOXY
DIA 3mm
0.12"
300mm
12"
8mm
0.31"
6.4mm
0.25"
6.4mm
0.25"
25.4mm
1.0"
300mm
12"
15.8mm
0.625" 7.1mm
0.28"
MOLDED
PVC TIP
2.4mm
0.095"
LEAD DIA
0.2mm
0.008"
38mm
1.50"
Windows ® is registered Trademark of "Microsoft Co."
HI 710005 115 Vac / 12 Vdc voltage adapter, US plug
HI 710006 230 Vac / 12 Vdc voltage adapter, European plug
HI 710031 Rugged carrying case
HI 710034 Paper roll (10 pcs)
HI 710035 Ink cartridge
HI 9200 Infrared transmitter (for HI 98810 and HI 98840)
HI 92000 Windows ® compatible software for data transfer to PC
(for HI 98810 and HI 98840)
ACCESSORIES

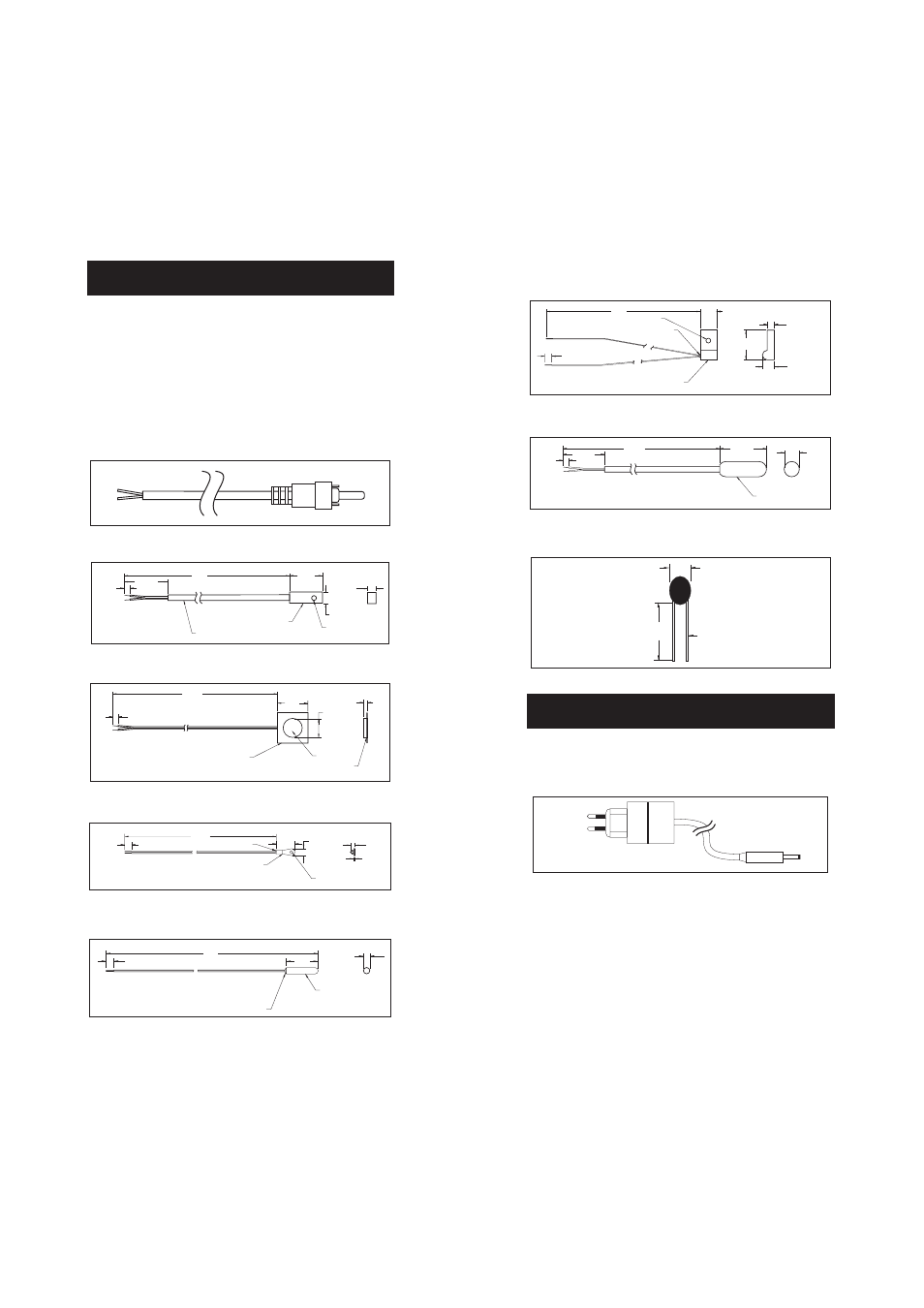

HANNA instruments ® offers a wide line of NTC thermistor sensors that
can be custom mounted in almost any situation. Select the sensor
that matches your application, attach it to the RCA adaptor and
plug it into the meter. You now have a temperature sensor that is
custom fit to your requirements.
The following is a list of the NTC thermistor sensors and plugs available:
HI 76P2-1 RCA plug with 1 meter (3 .3') cord
HI 76S2-1 NTC thermistor sensor. PTFE coated with hole for mounting
HI 76S2-2 NTC thermistor sensor, self-adhesive, foam disk for mounting
HI 76S2-3 NTC thermistor sensor, eye-connector for mounting
HI 76S2-4 NTC thermistor sensor, molded tip with epoxy seal for
aggressive environments
DIA 3.8mm
0.15"
7.1mm
0.28"
4.8mm
0.19"
ALUMINUM
HOUSING
19mm
0.75"
300mm
12" 25.4mm
1.0" 6.4mm
0.25"
TEFLON TUBING
6.4mm
0.25"
38mm
15"
RELEASE
LINER
MYLAR
FOIL
25.4mm
1.00"
38mm
1.5"
FOAM
DISK
3mm
0.12"
6.4mm
0.25"
406mm
16" 19mm
0.74"
9.6mm
0.38"
#6 STUD SIZE
TIN PLATED Cu
EPOXY 5.5mm
0.22"
1mm
0.04"
UN-HOUSED NTC SENSORS
6.4mm
0.25"
406mm
16" 9.6mm
0.38"
EPOXY FILLET
MOLDED TIP
2mm
0.08"
