11
POWER HDMI VIDEO VGA
CENTRAL CONTROL
UP
STO P
DOWN
Wall-Switch Function
Please follow the signs and symbols on the wall-switch
Instruction
Front view

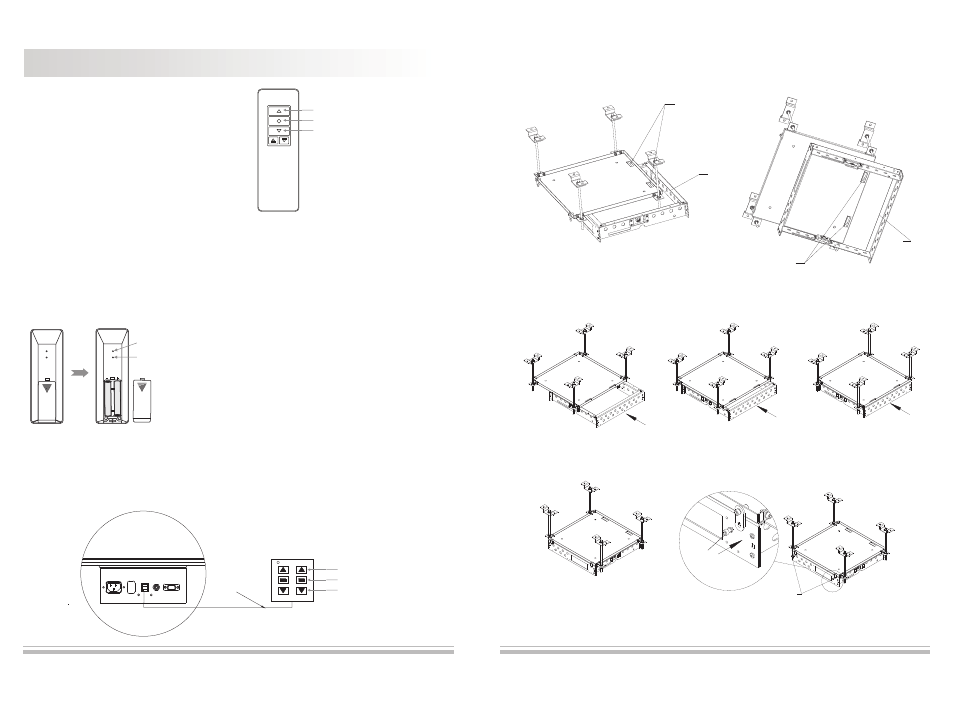

Button instruction for controller
1. Press "UP" ,projector goes up
2. Press "STOP" ,projector stops
3. Press "DOWN" ,projector goes down
1.Remote controller instruction
Remote controller guideline:
1. Work temperature: -20°to 70°
2. Batteries: 1.5V x 2pcs, model: AAA.
3. Take out the batteries if the controller will
not be used for a extended period of time.
4. Please change the batteries when signal is weak.
Back view
Sling wires localizer
Installation for controller batteries
Please replace the batteries when the signal of controller
is weak
1. Push out the battery cover on the back of controller
2. Install the batteries as guide arrow
3. Reinstall the battery cover
Caution
Install the batteries correctly
Red LED
Wall-Switch
(6p6c)
Cable(8PIN)
UP
STO P
DOWN
8
6. To install the lift, please follow the directions as shown in figure 8 and 9 in reference to button A and B.
Follow the sequence of figures 10-13 and push button B into button A, then fasten the screws as shown in
figure 14.
Button A
Button B
Button A
Button B
Figure 8 Figure 9
Figure 10 Figure 11 Figure 12
Figure 13 Figure 14
Screw
Screw
