5

6

6.

re

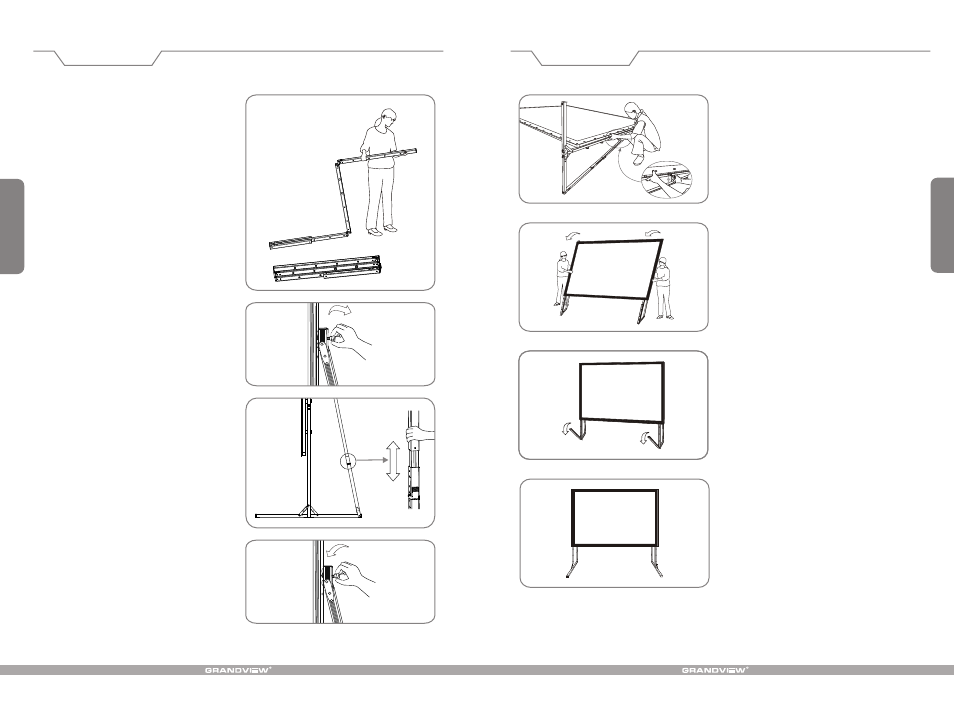

Unpack and extend legs ( Figu

16 ).

7.

re

Set frame to desired height then extend legs

accordingly and fasten with black knob

( Figu

17-19 ).

Installation

Figure 16

Figure 17

Figure 18

Figure 19

8. It's best to attach legs to frame on flat ground.When

raising the screen, ensure Grandview logo and

double-sided snaps (for masking custom masking

-curtain) are on bottom ( Figure 20 - 21 ).

9. Pull down front feet for stability ( Figure 22 - 23 ).

Installation

Figure 20

Figure 21

Figure 22

Figure 23
