PILOT FLAME CHARACTERISTICS
Figure 13 shows a correct pilot flame pattern. The correct flame will
be blue and will extend beyond the thermocouple. The flame will
surround the thermocouple just below the tip. A slight yellow flame
may occur where the pilot flame and main burner flame meet. Figure 14 shows an incorrect flame pattern. The incorrect pilot
flame is not touching the thermocouple. This will cause the log set
to shut down.
BURNER FLAME CHARACTERISTICS
Figure 15 shows a correct burner flame pattern. The correct flame
will be blue at the base and yellow at the tip. Flame should be
vertical in shape and should not impinge decorative logs.
CLEANING AND SERVICING
Annual inspection and cleaning by your dealer or qualified service
technician is recommended to prevent malfunction and/or sooting.
TURN OFF HEATER AND ALLOW TO COOL BEFORE CLEANING.
PERIODIC CLEANING – Refer to parts diagram on page 18 for
location of items discussed below.
• Do not use cleaning fluid to clean logs or any part of heater.
• Logs – Brush logs with soft bristle brush, or vacuum with brush
attachment.
• Remove loose particles and dust from the burner areas, controls,
piezo covers and grate.
• Inspect and clean burner air intake hole. Remove lint or particles
with brush. Failure to keep air intake hole clean will result in
sooting and poor combustion.
ANNUAL CLEANING/INSPECTION – Refer to parts diagram for
location of items discussed below:
• Inspect and clean burner air intake hole. Remove lint or particles
with vacuum or brush. Failure to keep air intake hole clean will
result in sooting and poor combustion.
• Inspect and clean all burner ports.
• Inspect ODS pilot for operation and accumulation of lint at air
intake holes.
• Verify flame pattern and log placement for proper operation.
• Verify smooth and responsive ignition of main burner.

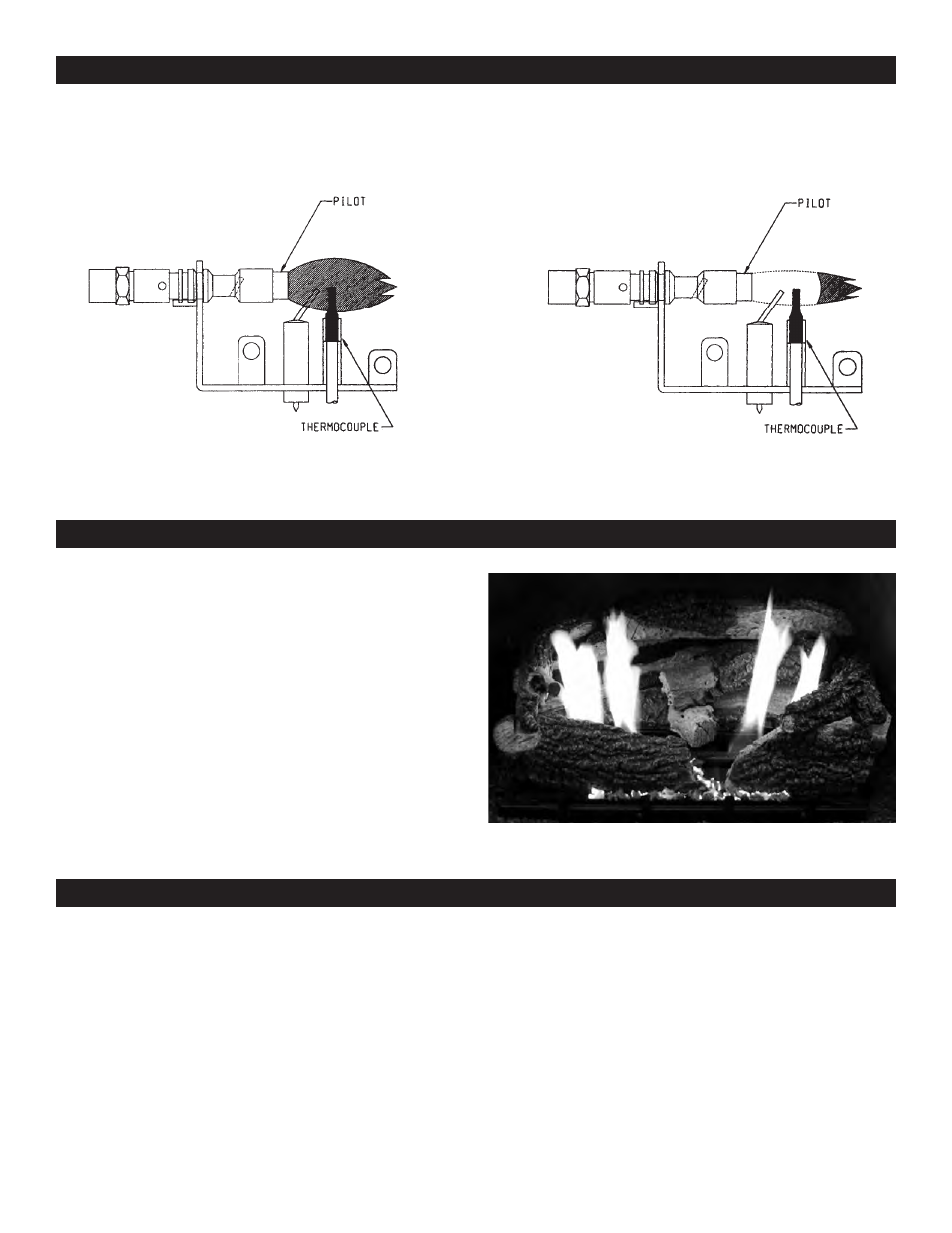

Correct Pilot Flame Pattern
FIGURE 13
Incorrect Pilot Flame Pattern
FIGURE 14
FIGURE 15
