GoDEX G300 series User Manual
Page 13

9
2
Printer Setup
2.4 Loading The Label Roll
009
A New Label Roll Module Installation
LABEL STOCK
LABEL SUPPLY HUB
LABEL GUIDE PLATES(Set of 2)

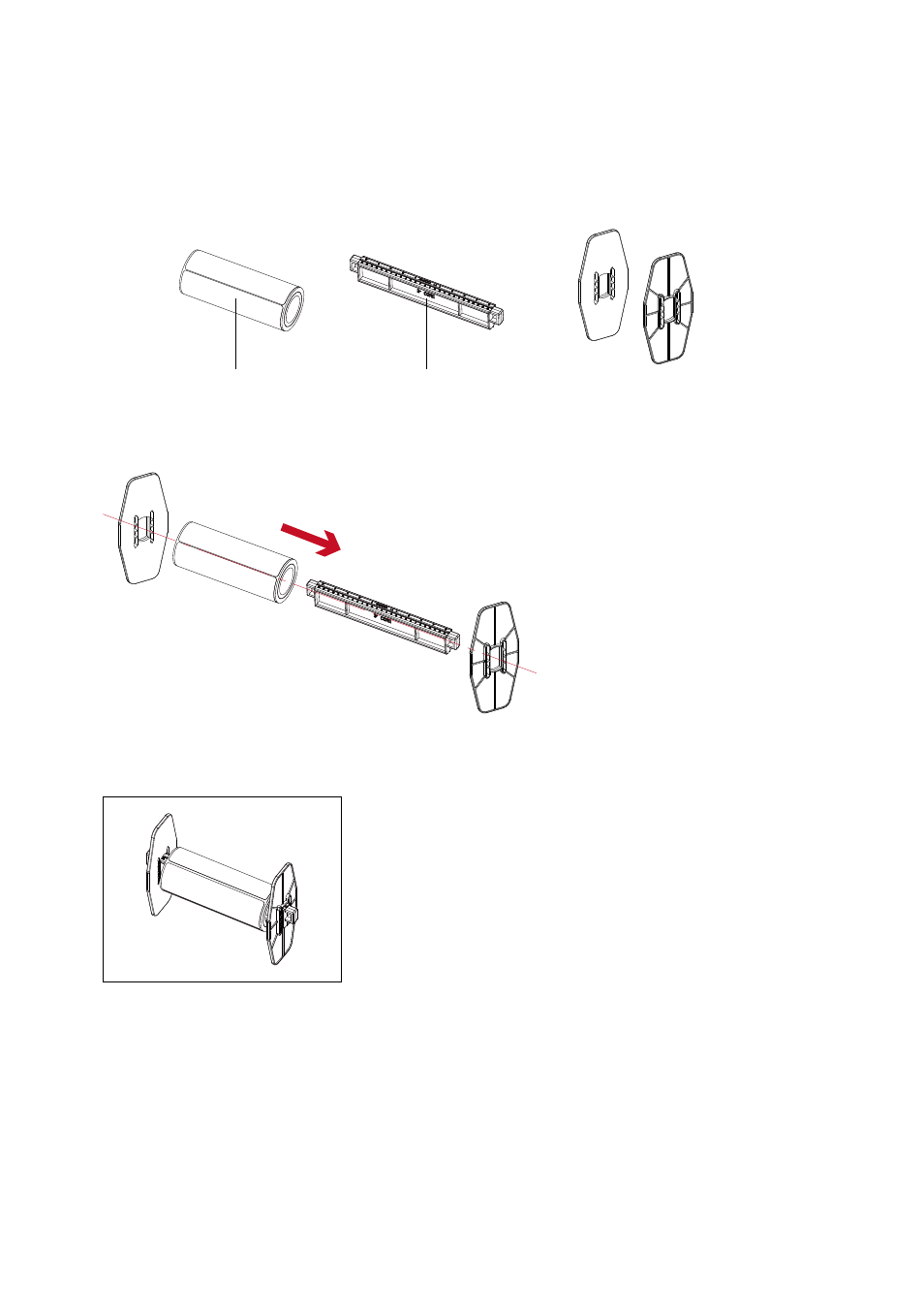

1. Place the label stock on the label supply hub, attach the label guide plates to the label stock holder.
Place on the ribbon hub
A NEW LABEL ROLL MODULE
2. A label roll module is assembled as below.
