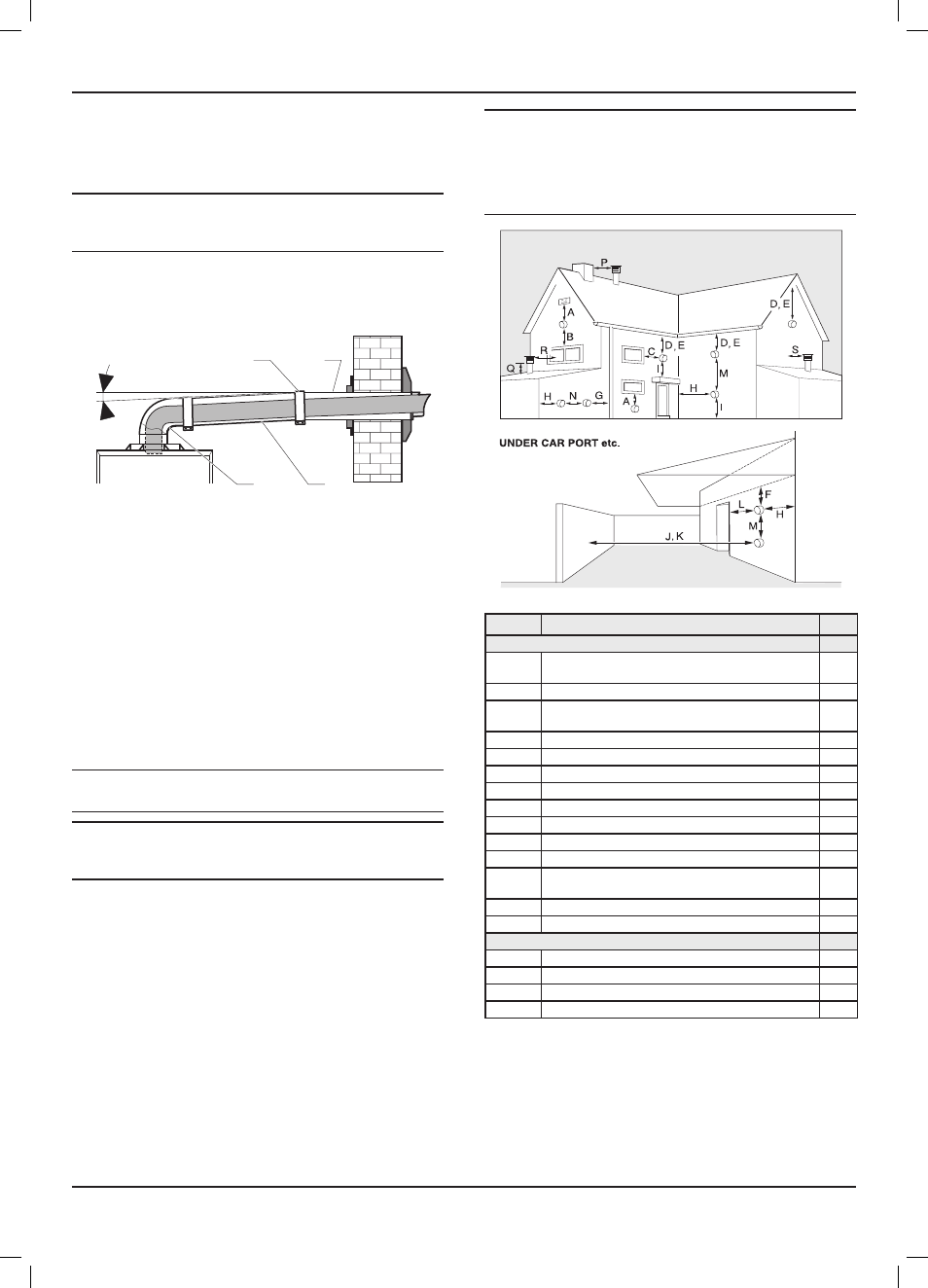

9 Evacuation of combustion gas
9.1 Regulation
b ATTENTION:
Only flue accessories supplied by Glow-worm must be
used.
Different flue outlet configurations can be carried out.
• Consult your supplier for more information about the other
possibilities and associated accessories.
44 mm/m
1 2
3 4
• Standard flue terminal kits have an in-built fall back to the
boiler to drain the condensate. These can be fitted level
between the appliance and the termination position. All other
extended flues must have a fall of at least 44mm/m
The maximum length of the flue outlet is defined according to its
type (for example C13).
• Whatever the kind of flue system chosen, observe the
minimum distances indicated in the chart below to position
the flue terminals.
• To install the flue, refer to the separate flue instruction
supplied with your appliance.
• Explain these requirements to the user of the appliance.
a DANGER:
If necessary, you must install a flue terminal guard.
b ATTENTION:
Caution! The connection between the flue elbow and the
flue outlet must be sealed.
In GB the minimum acceptable siting dimensions for the terminal
from obstructions, other terminals and ventilation openings are
shown in diagram overleaf.
In IE the minimum distances for flue terminal positioning must be
those detailed in I.S.813 “Domestic Gas Installations”.
The terminal must be exposed to the external air, allowing free
passage of air across it at all times.
Being a condensing boiler some pluming may occur from the flue
outlet. This should be taken into consideration when selecting
the position for the terminal.
Carports or similar extensions of a roof only, or a roof and one
wall, require special consideration with respect to any openings,
doors, vents or windows under the roof. Care is required to
protect the roof if made of plastic sheeting. A carport is defined
as a roof and one wall.
b ATTENTION:
If the flue terminal is positioned near a light source
insects may enter the flue system. Where safe and
practical to do so advise the homeowner to check the
flue outlet and clear visible insects from the terminal
end.
Position Position of the flue terminal mm
Horizontal flues
A
directly below an opening, air brick,
opening windows
300
B above an opening, air brick, opening windows 300
C
horizontally to an opening, air brick, opening
windows
300
D below gutter, drain/soil pipe 25
E below eaves 25
F below a balcony or car port 25
G from vertical drain pipes and soil pipes 25
H from internal/external corners 25
H* to a boundary alongside the terminal 300
I above adjacent ground or balcony level 300
J* from surface or a boundary facing the terminal 600
L
from opening (door/window) in car port
into dwelling
1200
M vertical from a terminal 1500
N horizontally from a terminal 300
Vertical flues
P
from another terminal 600
Q above roof level 300
R from adjacent opening window 1000
S from adjacent wall to flue 300
(*) These dimensions comply with the building regulations,
but they may need to be increased to avoid wall staining and
nuisance from pluming depending on site conditions.
