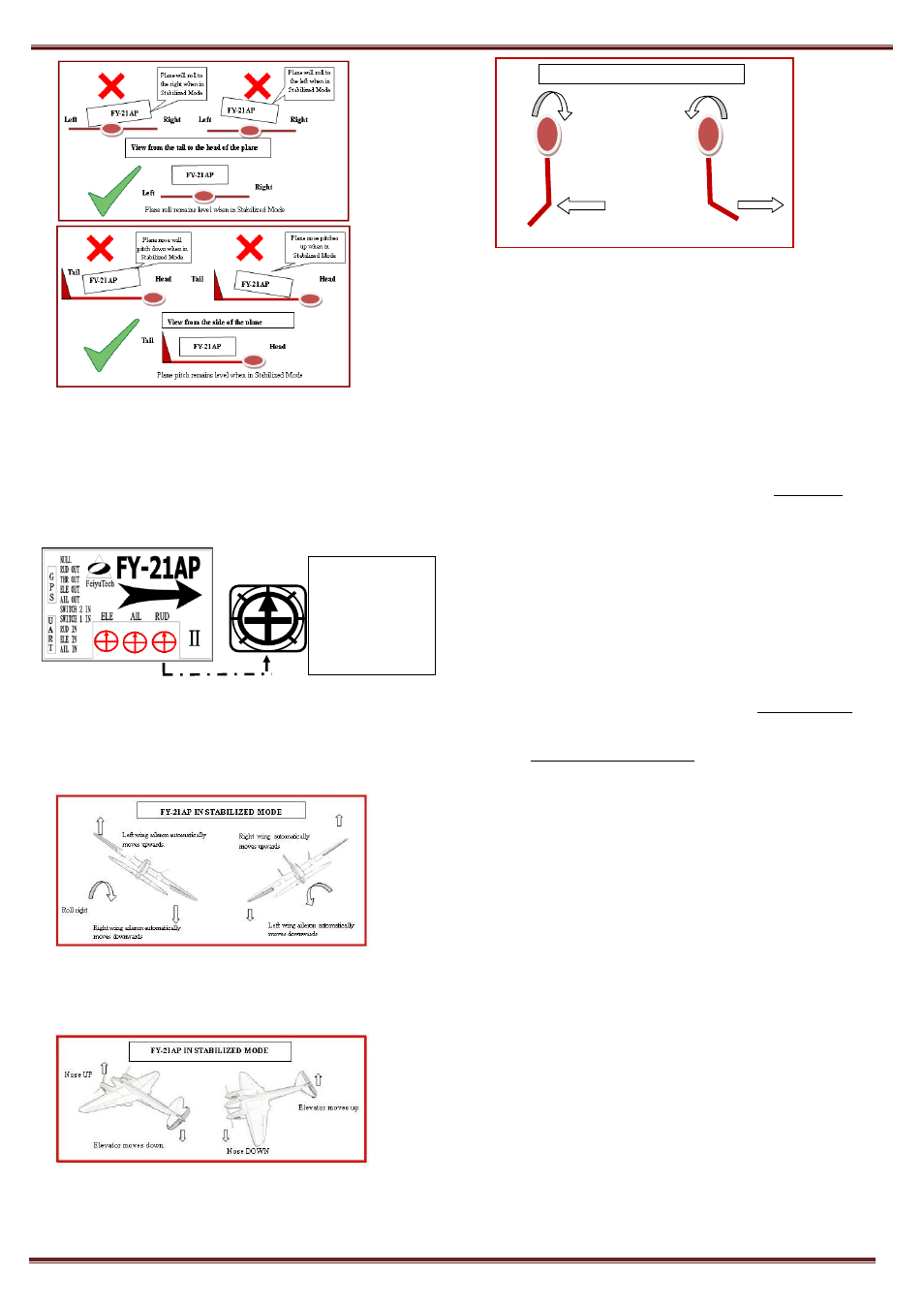

FY-21AP Pre-Flight Checking and Debugging

PRE-FLIGHT CHECK:

The following procedure explains how to check for correct servo control direction upon FY-

21AP activation. You should also check that the FY-21AP does not control the aircraft servos when
in Mode 1: Deactivated Mode.

STEP 1: DIAL ADJUSTMENT

Adjust the three dials on the FY-21AP so that the arrow is in the middle, as shown below. Then

rotate all dials in one direction (does not matter which direction):

STEP 2: STABILIZED MODE

Place the plane on a horizontal surface with both the wings and pitch leveled. Centre the rudder

surface. Move your radio 3-position switch so that the FY-21A is in Mode2: Stabilized Mode.

EP 3: AILERON CHECK:



Incline the plane to the right (roll right). The ailerons should give a control signal to counter
this roll direction (see below). Same as when rolled to the left. If the ailerons move correctly,
the knob has been turned in the right direction. You can now adjust gain by moving nearer (low
gain) or further away (high gain) from center:



If the ailerons do not follow the movements shown above, simply turn the aileron knob to the
opposite side (beyond centre). You should now see the correct aileron movement.

TEP 4: ELEVATOR CHECK



Incline the plane NOSE UP. You should see the elevator move down. And when you move the
NOSE DOWN, the elevator should move up. Move the Elevator knob to the opposite side
(from Centre) if the servo movement is incorrect:



Adjust Elevator gain according to your aircraft requirement (lowest gain nearest to centre,
highest gain further away from centre).

STEP 5: RUDDER CHECK



Rotate the plane at its centre axis from left to right. You should see the following action:



Move the Rudder knob to the opposite side (from Centre) if the servo movement is incorrect:



Adjust Rudder gain according to your aircraft requirement (lowest gain nearest to centre, highest gain
further away from centre).

STEP 6: FLIGHT TEST AND SENSITIVITY ADJUSTMENT



Steps 1 to 5 should enable you to correctly set your servo movement direction via the 3 knob dials.



To fine tune your aircraft attitude control via the FY-21AP, some flight testing has to be performed.



For the first flight it is recommended that the gains not be set too high. This will reduce large
oscillation or „flight overcorrection‟.



After the flight take off, switch the device from Mode 1 (deactivated) to Mode 2 (Stabilized mode).



If you see oscillation of the wings, this indicates the Aileron gain is set too high. Switch back to Mode
1 (deactivated) and land the airplane.



Reduce the sensitivity (move dial towards centre position) and fly again. You should see improvement
in wing attitude. Adjust until you are satisfied with the level of wing stabilization.



Too much Elevator gain will show the tail moving up and down (rocking). Too much Rudder gain will
show tail wagging. Reduce gain until this flight overcorrection is gone.



Alternately, if you find the flight correction is not enough, you can increase gain accordingly.
