FeiYu Tech G4 3-Axis Handheld Gimbal User Manual

Page 2

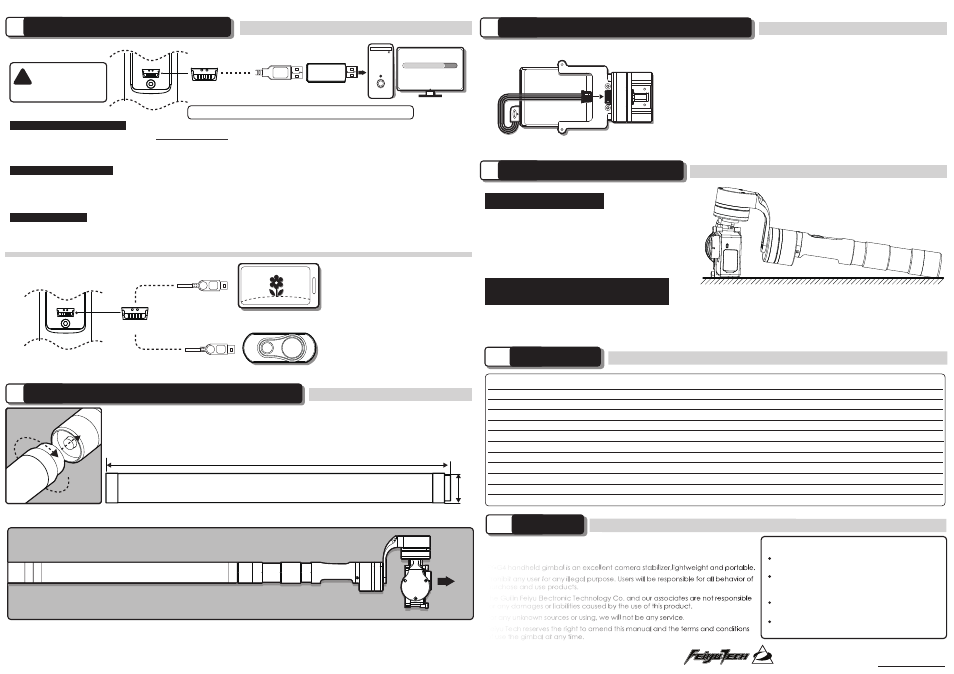

Upgrade........

This interface can be output 5 voltage and input analog video signal of GoPro.

Connect the power cable, power supply for the GoPro camera.

Connect the video cable, input analog video signal of GoPro.

Please visit the official website of Feiyu Tech: www.feiyu-tech.com to download the USB driver, firmware upgrade software and the latest

firmware then unzip the RAR file.Remove the batteries and refer to the connection diagram to connect the gimbal with the computer.

Please refer to the manual of update operation to upgrading,otherwise the Gimbal will be abnormal.

The heading following speed can be configurate through parameter setting software.User can adjust to the desired following speed mode

according to the requirements of filming scene. Three modes for optional: “SLOW” mode, “NORMAL” mode , “FAST” mode.

Default setting is “NORMAL” mode.

The Gimbal attitude can be calibrate through parameter setting software. User can adjust the pitch and roll in a small angle to achieve more

accuracy filming scene. Please insert the batteries then refer to the connection diagram to connect the gimbal with the computer for caliration.

Firmware Upgrade Instruction

Parameters Configuration

Gimbal Calibration

Working Voltage

Static Attitude Tracking Accuracy
Motion Attitude Tracking Accuracy
Overload Current Protection

Pitch Angle
Roll Angle
Heading Angle
Heading Angle
Pitch Following Rate
Heading Following Rate

Weight

Gimbal In Static Mode
Motor Overload<2G

Handheld In Horizontal

Handheld In Vertical

Without Batteries & Camera

6.0V

0.01
0.1

-160（Down）
-50
-160（Left）
-50
2°/ Sec
3°/ Sec

265g

8.4V

0.02
0.2
800mA

0（Horizontal）
0（Horizontal）

17.0V

0.05
0.5

+160（Up）
+50
+160
+50
75°/ Sec
150°/ Sec

1. Install the camera properly.

2. Gimbal placed on stationary flat and keep

motionless.

3. Power on the Gimbal.

4. The Gimbal is activate and it will initialize

automatically. Pick up the Gimbal to work normally.

FY-G4 handheld gimbal is an excellent camera stabilizer,lightweight and portable.
Prohibit any user for any illegal purpose. Users will be responsible for all behavior of

purchase and use products.
The Guilin Feiyu Electronic Technology Co. and our associates are not responsible

for any damages or liabilities caused by the use of this product.
For any unknown sources or using, we will not be any service.
Feiyu Tech reserves the right to amend this manual and the terms and conditions

of use the gimbal at any time.

After connect the video cable, the

analog monitor connect to the

function interface then it will display

the video.

Connect the remote control to the

function interface, heading & pitch

angle adjustment and mode switching

can be operation from a distance .

With the special designed switch, the extension bar can be added directly. Allows to shoot the distance

images more easily. Special design allows for flexible extension.

350mm

Φ23mm

Please visit the official website of Feiyu Tech
to get related information:

www.feiyu-tech.com

Please Remove

The Batteries

Before Upgrading

Note: The power cable and the video cable doesn’t includes in the standard

package, it’s a optional item.

Attention : Please be sure to connect the computer with the USB connector.

If any comments or suggestions please do not hesitate

to e-mail us directly : [email protected]

ATTENTION

Attention: Be sure to connect the computer with the USB connecter

1. After power on, the angle of pitch is not level with the horizon line.

2. After power on, the angle of roll is not parallel with the horizon line.

3. When the gimbal is in heading lock, the angle of heading moves frequently (heading is not stationary).
