36
MAINTENANCE
Read all of SAFETY and this section before attempting any procedure. Pay particular attention to Notices, Cautions, Warnings and Dangers.
Owner’s Guide

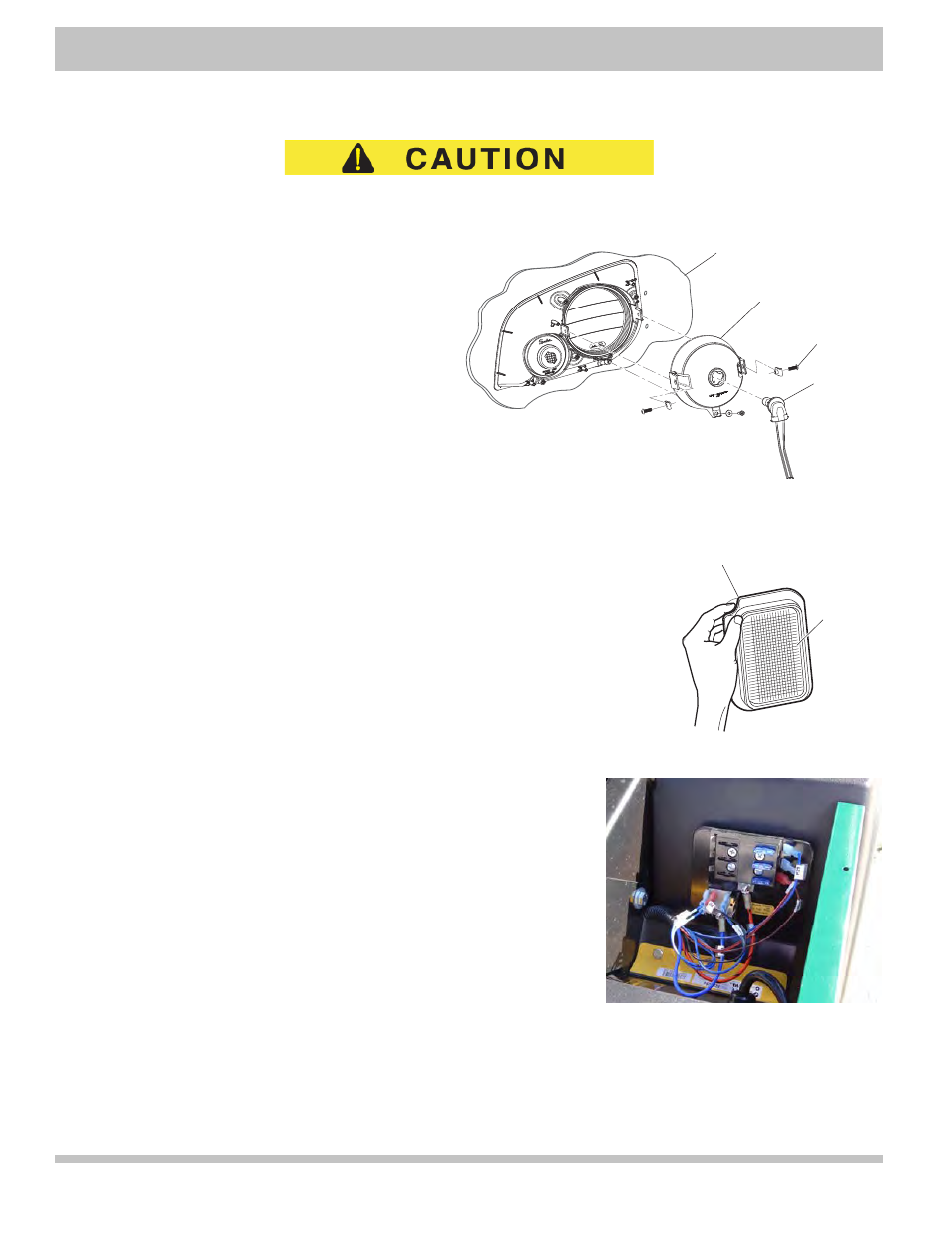

Headlight
To prevent bulb from inadvertently disconnecting and possibly melting or igniting plastic components, the
locking ring MUST be reinstalled after installation of replacement bulb.
Pull the locking ring straight off the back of the light
housing and allow it to slide down the harness and out of
the way.
Rotate bulb socket a quarter turn counterclockwise to
unlock. Pull out bulb and socket. Insert new bulb and
rotate socket a quarter turn clockwise to secure.
Slide locking ring over new bulb socket and onto back of
light housing.
Taillight
To replace taillight bulb, roll the rubber bezel from around the edge of the taillight and
remove the lens. Install replacement bulb and replace lens.
FUSE REPLACEMENT
The fuse block is located on the fender liner on the driver side of the vehicle.
Pull out old fuse and replace with a new fuse of the same type and size.
Inside
of Cowl
Headlight
Bulb
Headlight
Casing
Screw
Taillight
Rubber Bezel
11
