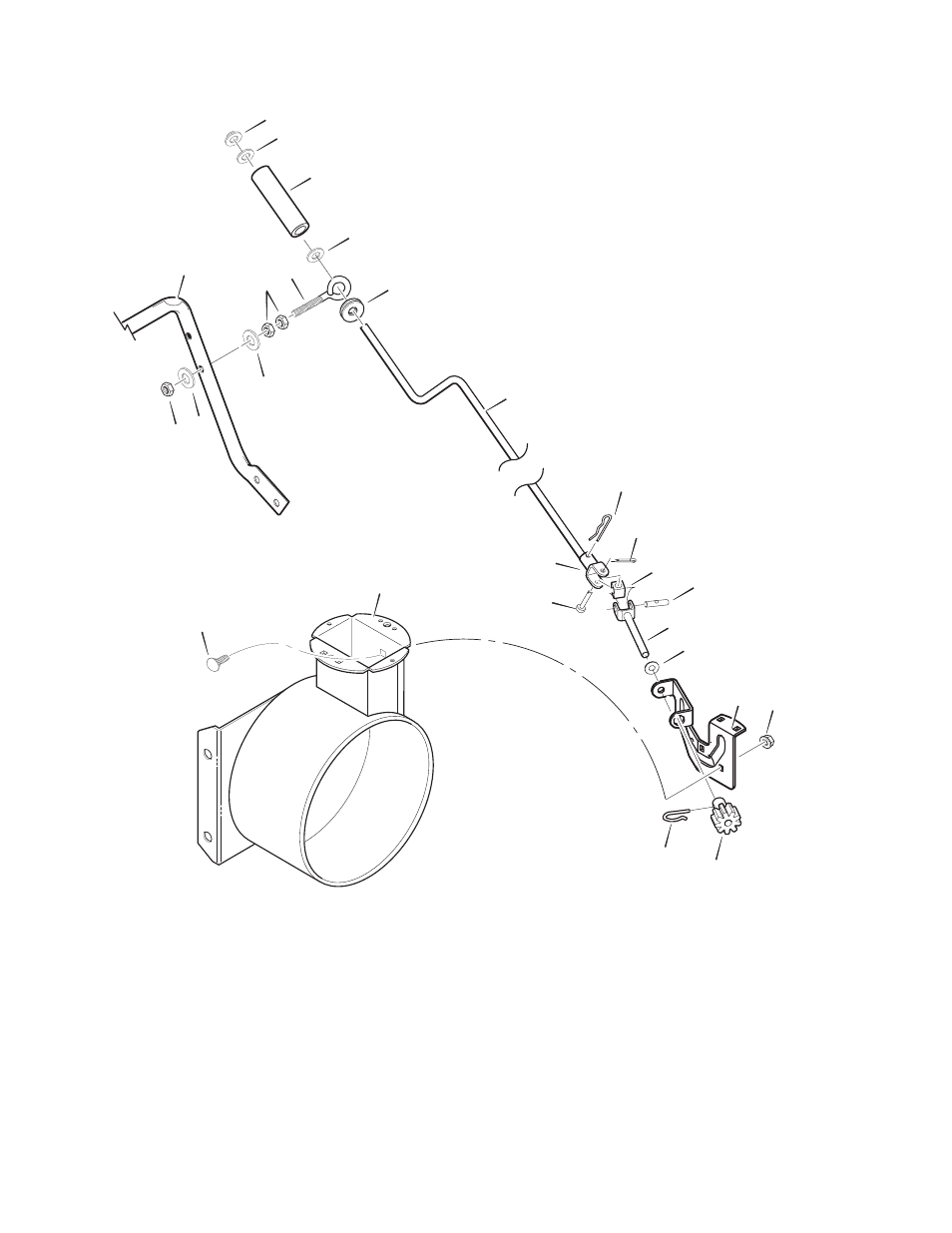

MODEL 6400 REPAIR PARTS
33 OM6400
CHUTE ROD
CROD105B
856
855
854
855
861
860
863
864
864
867
Ref. Handle Assy
870
852-5
852-1 1
852-9
852-8
852-3
868
852-13
852-10
852-1
852-2
852-6 869
Ref. Auger Housing Assy
852-7
Key No. Description Part No. Key No. Description Part No.
852-1 ASSEMBLY, YOKE & ROD 1501309 YZ
852-2 WASHER, CURVED SPRING 313431
852-3 GEAR, CHUTE ROTATION 9T 1501067
852-5 PIN, COTTER 71082
852-6 BRACKET, GEAR MOUNT 1501306E701
852-7 PIN, HAIR 1501293
852-8 ASSEMBLY, YOKE ADAPTER YZ 1501075 YZ
852-9 PIN, HAIR 711682
852-10 PIN, UNIVERSAL JOINT 578060
852-1 1 PIN, CLEVIS 578309
852-13 HOUSING, UNIVERSAL 578063
854 KNOB, SLEEVE 51443
855 FLATWASHER 309312
856 NUT, PUSH ON 3/8” 73664
860 EYE BOLT 3/8-16X6.00 581618
861 GROMMET, EYE BOLT 148
863 NUT, 3/8-16 HEXJAM 71045
864 FLATWASHER .406X.81X.066 71072
867 NUT, 3/8-16 HEXNYL 71046
868 BOLT, CARRIAGE 1/4-20 X 1.00 002X98
869 NUT 15X145
870 CRANK, ASSY CHUTE 1501074 YZ
