MODEL 6400 REPAIR PARTS
19
OM6400

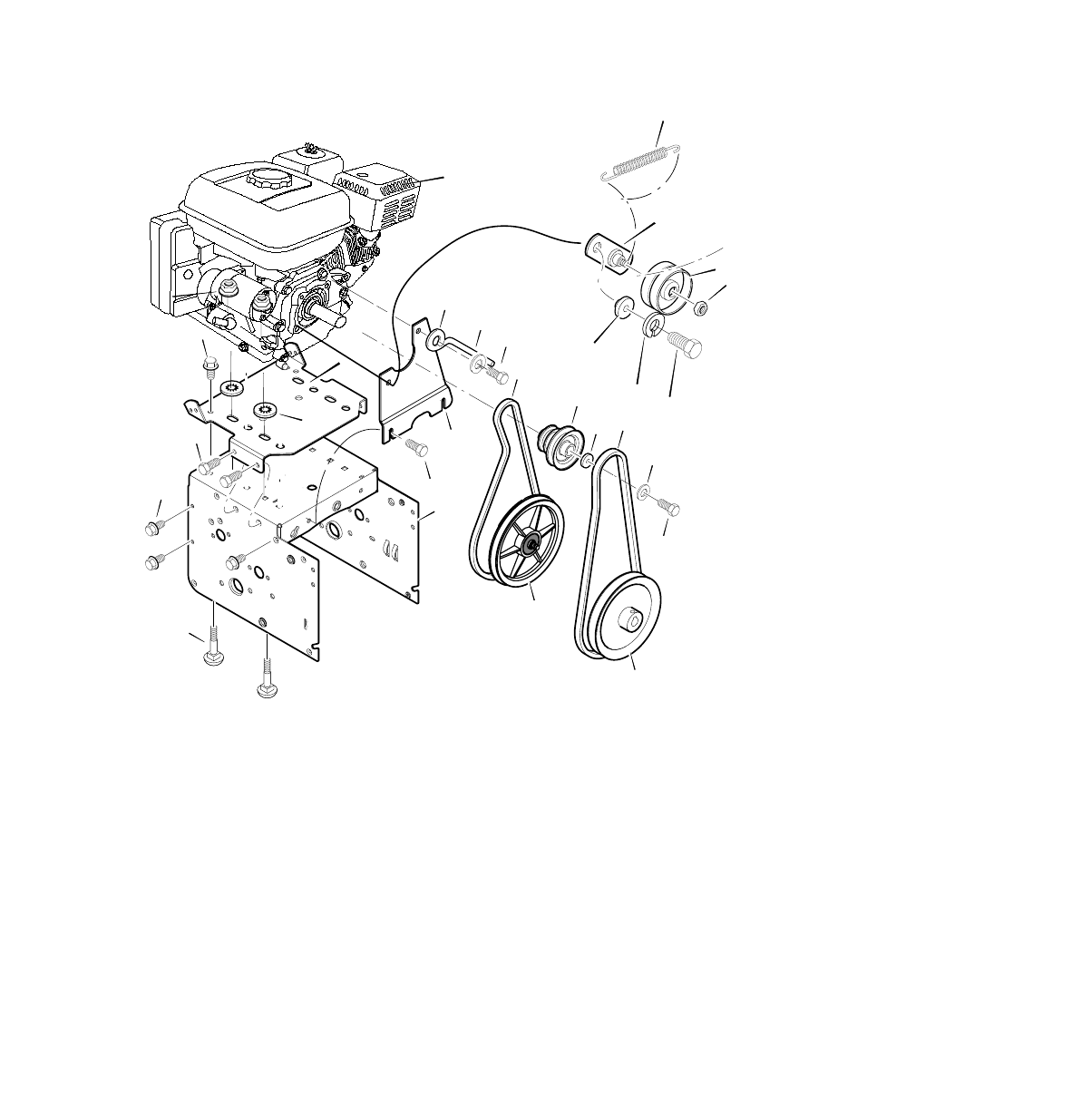

ENGINE
ENG100A
25-1
2
3
25-4
25-2
25-3
5
4
11
6
7
8
10
Ref.Drive Page
Ref. Auger Housing Page
9
25-2
20
22
24
23
25-5
Key No. Part No .
Description
2
- - - - - -
ENGINE
3
2x97
BOLT, CARRIAGE 5/16-18
4
28x76
RETAINER, PUSH
5
710026
NUT, HEX 5/16-18
6
1501109
PULLEY, ENGINE
7
710247
WASHER
8
71063
WASHER .38ID
9
71015
SCREW, 3/8-24X1.00
10
37X136
BELT, DRIVE V 3L
11
37X137
BELT, V 4L 38.1MF16” 5-10
12
1501112 YZ
BRACKET ASSEMBLY，IDLER
13
1501065
BUSHING.IDLER BRACKET
14
71060
WASHER,SPLIT
15
910828
SCREW, 5/16-24X 1.00
Key No . Part No .
Description
17
50793
PULLEY,IDLER
18
6115
NUT,JAM 3/8-16
5-10
20
1501201
GUIDE, BELT
22
71060
WASHER, SPTLK .31X.58X.08
23
1501482
PLATE, ANTI VIBRATION
24
910828
SCREW, 5/16-24X 1.00
25
- - - - - -
FRAME ASSEMBLY
25-1
1501062E245
PLATE, ENGINE MOUNT
25-2
310169
SCREW, TAP 1/4-20 X .63
25-3
780055
SCREW, TAP 5/16-18 X .50
25-4
1501049E245
FRAME, MOTOR BOX
25-5
26x263
SCREW
--
F-021081L
OWNER’S MANUAL
16
165X164
SPRING IDLER TRACTION DRIVE
,
16
12
17
18
15
12
13
