Operator’s Manual
ESKIMO ® QuickFlip ™ 2

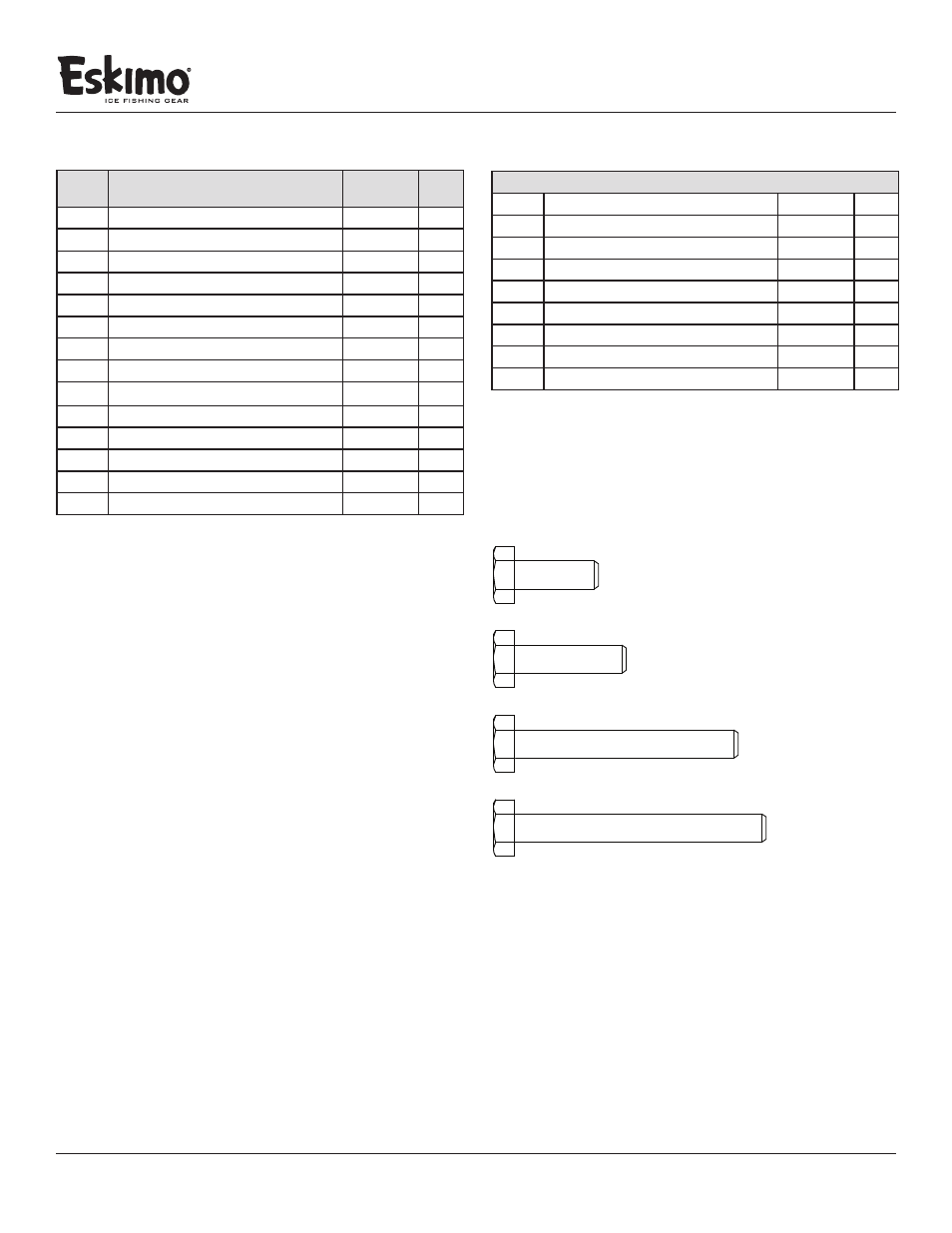

QuickFlip ™ 2 PARTS LIST
REF.
NO. DESCRIPTION PART NO. QTY.
1 SLED 68380 1
2 TUB SUPPORT STRAP 69677 2
3 RISER HINGE A 68052 1
4 RISER HINGE B 68053 1
5 ASSEMBLY HINGE B 15551 1
6 ASSEMBLY HINGE A 15552 1
7 BOTTOM CROSS BRACE POLE 15553 1
8 TOP CROSS BRACE POLE 15554 3
9 BACK SPREADER POLE 68422 1
10 SPREADER POLE 29 IN 69679 1
11 SPREADER POLE 34.5 IN 69331 1
12 FEMALE SPREADER POLE 22.75 IN 69356 2
13 MALE SPREADER POLE 35.75 IN 69357 2
14 HINGE SUPPORT BRACE 11203 2
ITEMS BELOW NOT SHOWN
- WASHER 1/4” FLAT ZINC 48261 62
- NUT 1/4-20 HNYLK ZN 67538 32
- BOLT 1/4-20 X 3/4” HH GR5 ZN 8930 8
- BOLT 1/4-20 X 1” HHCS GR5 ZN 69345 12
- BOLT 1/4-20 X 2” HHCS BLK ZN P-T 48153 8
- BOLT 1/4-20 X 2-1/4” PTH ZN 69279 4
- ROPE 1/4” X 8” TWISTED BLK 67589 1
- SCREW 6 X 3/8” PTHA ZN 69629 15
- EDGE TRIM 1/4 IN CUT TO 93.5 INCH 69654 1
BOLT 1/4-20 X 3/4” HH GR5 ZN
BOLT 1/4-20 X 1” HH GR5 ZN
BOLT 1/4-20 X 2” HH GR5 ZN
BOLT 1/4-20 X 2-1/4” HH GR5 ZN
BOLT IDENTIFICATION CHART
• Not all bolt sizes shown are included with all shelters. Bolts
shown are for size reference only. Extra hardware may be
included in the parts bag.
