2.0 Features 2.0 Features
See figure 1 for location of features and dimensions for mounting.
Enclosure Rated NEMA-4X, IP 66/IP 67
Audio Alarm Sonalert rated at 29 Hz, 95 db at 2 ft
Visual Indicator Red LED, indicates the audio alarm has been rendered INACTIVE
Switch Silences the audio alarm and activated the Horn Off LED
Visual Alarm Red Strobe light, voltage (Vac Vdc) optional
Power Supply Input 98 – 230 V AC , Output 24 V DC
Relay 10 Amp
Terminal Blocks TB1 Vac input
TB2 Vdc output, Signal input

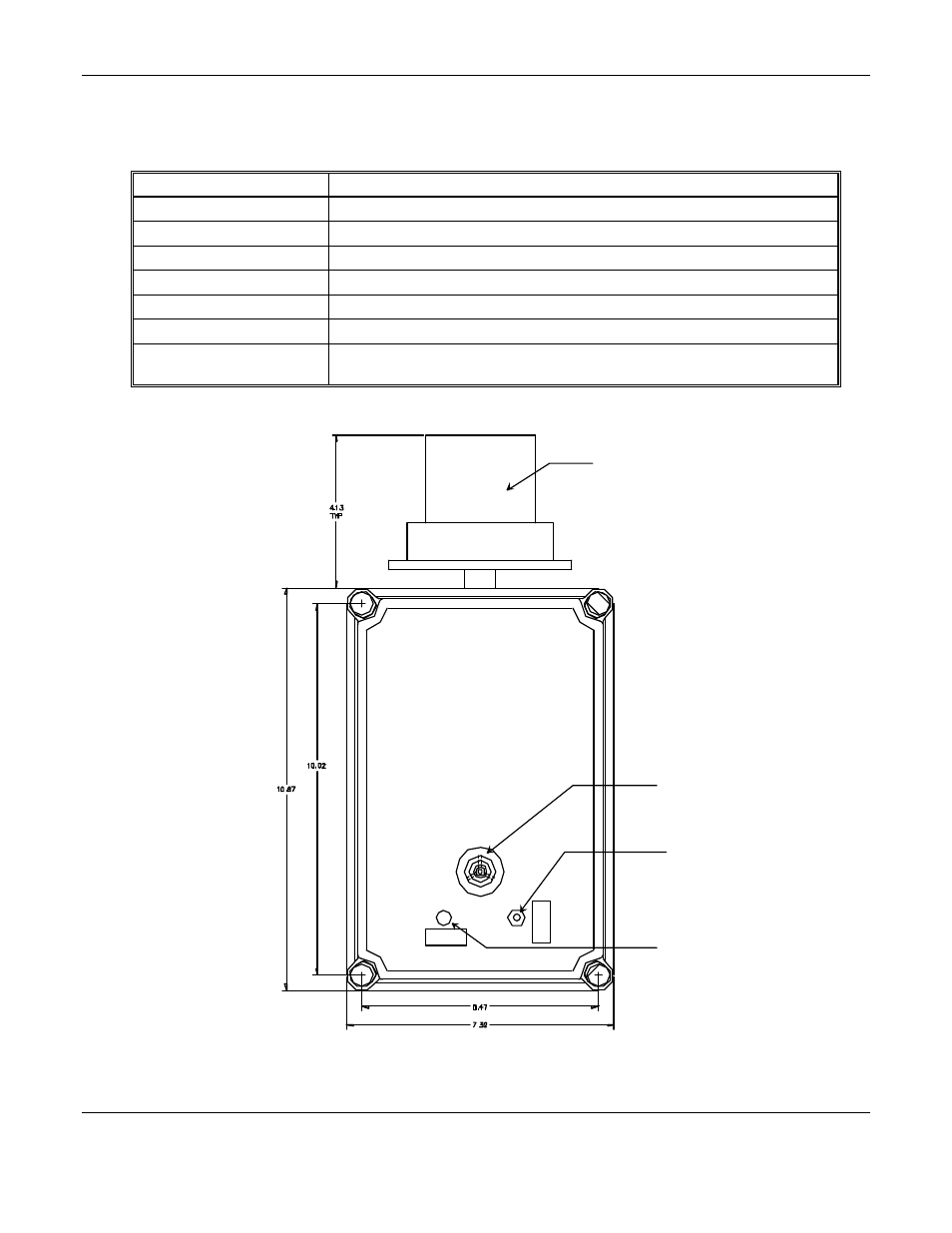

Figure 1: Alarm Module Exterior
H ORN O FF
Strobe
Audio Alarm
(Horn)
Horn Off Switch
Horn Off
Indicator LED
